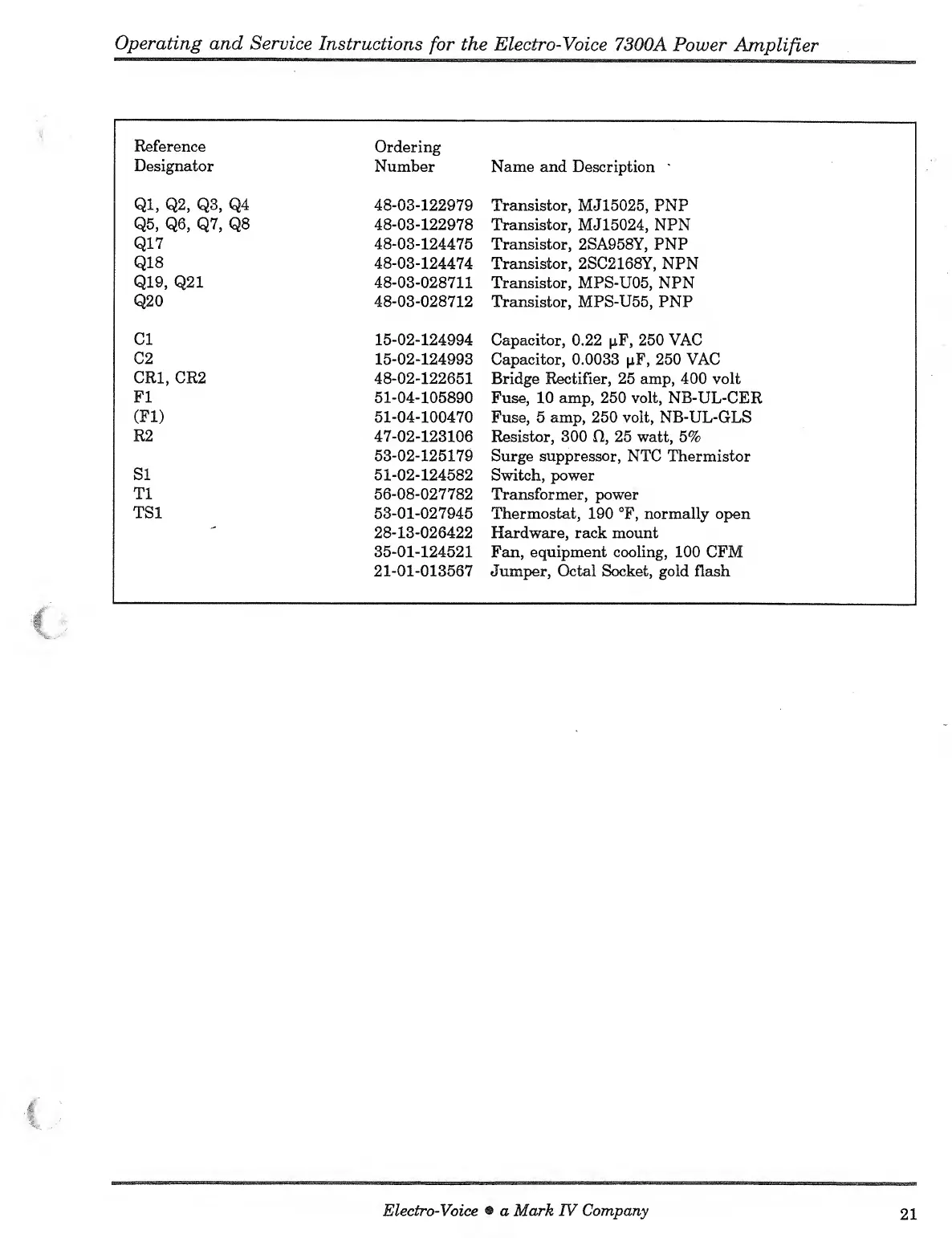

Operating and Service Instructions for the Electro-Voice 7300A Power Amplifier
Reference
Ordering
Designator
Number
Name and Description '
Ql, Q2. Q3. Q4
48-03-122979
Transistor, MJ15025, PNP
Q5, Q6. Q7, Q8
48-03-122978
Transistor, MJ15024, NPN
Q17
48-03-124475 Transistor, 2SA958Y, PNP
Q18
48-03-124474 Transistor, 2SC2168Y, NPN
Q19, Q21
48-03-028711 Transistor, MPS-U05, NPN
Q20
48-03-028712
Transistor, MPS-U55, PNP
Cl
15-02-124994
Capacitor, 0.22 pF, 250 VAC
C2
15-02-124993 Capacitor, 0.0033 pF, 250 VAC
CRl, CR2
48-02-122651 Bridge Rectifier, 25 amp, 400 volt
FI
51-04-105890 Fuse, 10 amp, 250 volt, NB-UL-CER
(FI)
51-04-100470
Fuse, 5 amp, 250 volt, NB-UL-GLS
R2
47-02-123106
Resistor, 300 0, 25 watt, 5%
53-02-125179
Surge suppressor, NTC Thermistor
SI
51-02-124582 Switch, power
T1
56-08-027782 Transformer, power
TSl
53-01-027945 Thermostat, 190 °F, normally open
28-13-026422 Hardware, rack mount
35-01-124521
Fan, equipment cooling, 100 CFM
21-01-013567 Jumper, Octal Socket, gold flash
