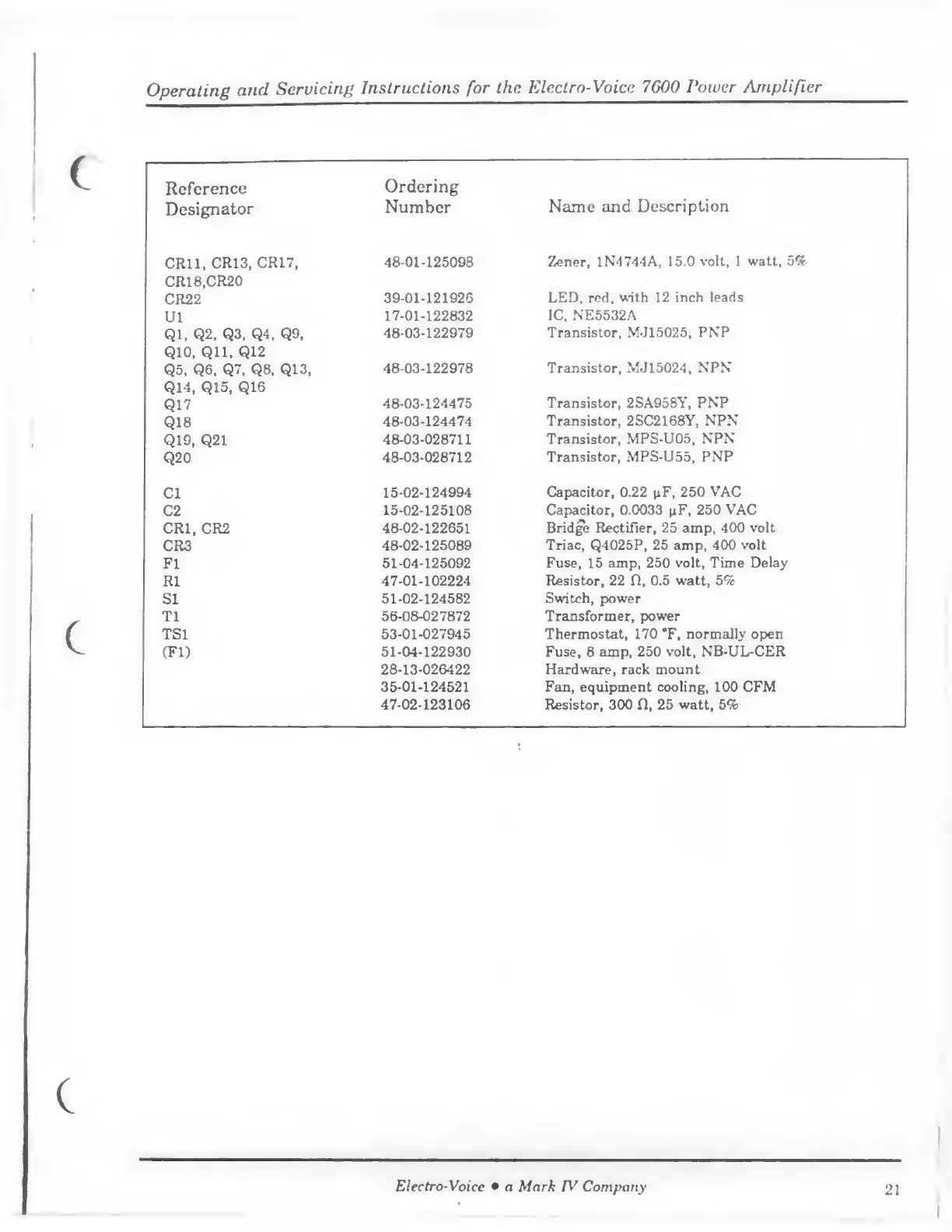

Operating and Servicing Instructions for the Electro-Voice 7600 Power Amplifier
Reference
Ordering
Designator
Number
Name and Description
CRll, CR13, CR17,
48-01-125098
Zener, 1N4744A, 15.0 volt, 1 watt, 5%
CR18.CR20
CR22
39-01-121926
LED, red, with 12 inch leads
U1
17-01-122832
IC, NE5532A
Ql, Q2. Q3, Q4, Q9,
48-03-122979
Transistor, MJ15025, PNP
Q10, QU, Q12
Q5, Q6, Q7, Q8, Q13,
48-03-122978
Transistor, MJ15024, NPN
Ql4, Q15, Q16
Q17
48-03-124475
Transistor, 2SA958Y, PNP
Q18
48-03-124474
Transistor, 2SC2168Y, NPN
Q19, Q21
48-03-028711
Transistor, MPS-U05, NPN
Q20
48-03-028712
Transistor, MPS-U55, PNP
Cl
15-02-124994
Capacitor, 0.22 pF, 250 VAC
C2
15-02-125108
Capacitor, 0.0033 pF, 250 VAC
CR1, CR2
48-02-122651
Bridj^ Rectifier, 25 amp, 400 volt
CR3
48-02-125089
Triac, Q4025P, 25 amp, 400 volt
FI
51-04-125092
Fuse, 15 amp, 250 volt, Time Delay
R1
47-01-102224
Resistor, 22 A, 0.5 watt, 5%
SI
51-02-124582
Switch, power
T1
56-08-027872
Transformer, power
TSl 53-01-027945
Thermostat, 170 °F, normally open
(FI)
51-04-122930 Fuse, 8 amp, 250 volt, NB-UL-CER
28-13-026422
Hardware, rack mount
35-01-124521
Fan, equipment cooling, 100 CFM
47-02-123106 Resistor, 300 fl, 25 watt, 5%
