24 en | Operation EVERSE Battery-powered Loudspeaker
2024-12 | 05 |
User manual
Bosch Security Systems, LLC
– Fully extend the legs on the tripod stand.
– Do not compromise the tripod stand's structural integrity by trying to make the
stand taller.
– Do not attempt to mount more than one loudspeaker on a stand designed for a
single loudspeaker.

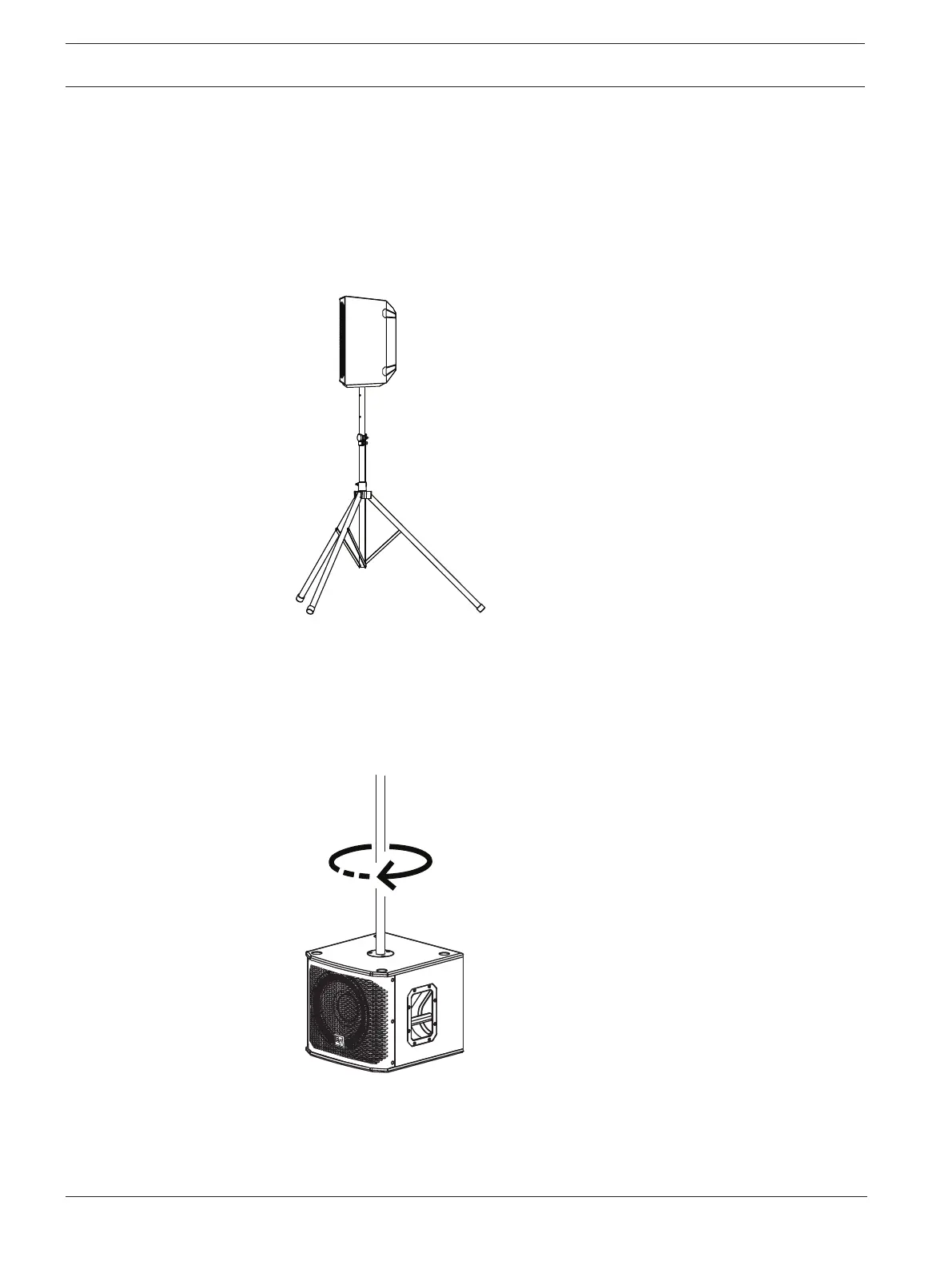

2. Lift the loudspeaker using two hands.
3. Set the pole cup located on the bottom of the loudspeaker onto the pole.
4. Set the loudspeaker location to TRIPOD in the DSP control menu.
Mounting a loudspeaker on a pole
To mount a loudspeaker on a pole:
1. Place the subwoofer on a level and stable surface.
2. Insert the M20 threaded pole into the combo pole cup on the top of the subwoofer.
3. Turn the M20 threaded pole clockwise to secure the pole to the subwoofer.
4. Lift the loudspeaker using two hands.
5. Set the loudspeaker location to TRIPOD in the DSP control menu.
6. Select the corresponding SUB(X-OVER) setting for your subwoofer.
