26 en | Operation EVERSE Battery-powered Loudspeaker
2024-12 | 05 |
User manual
Bosch Security Systems, LLC
1
0
0
º
5
5º
6
0
º

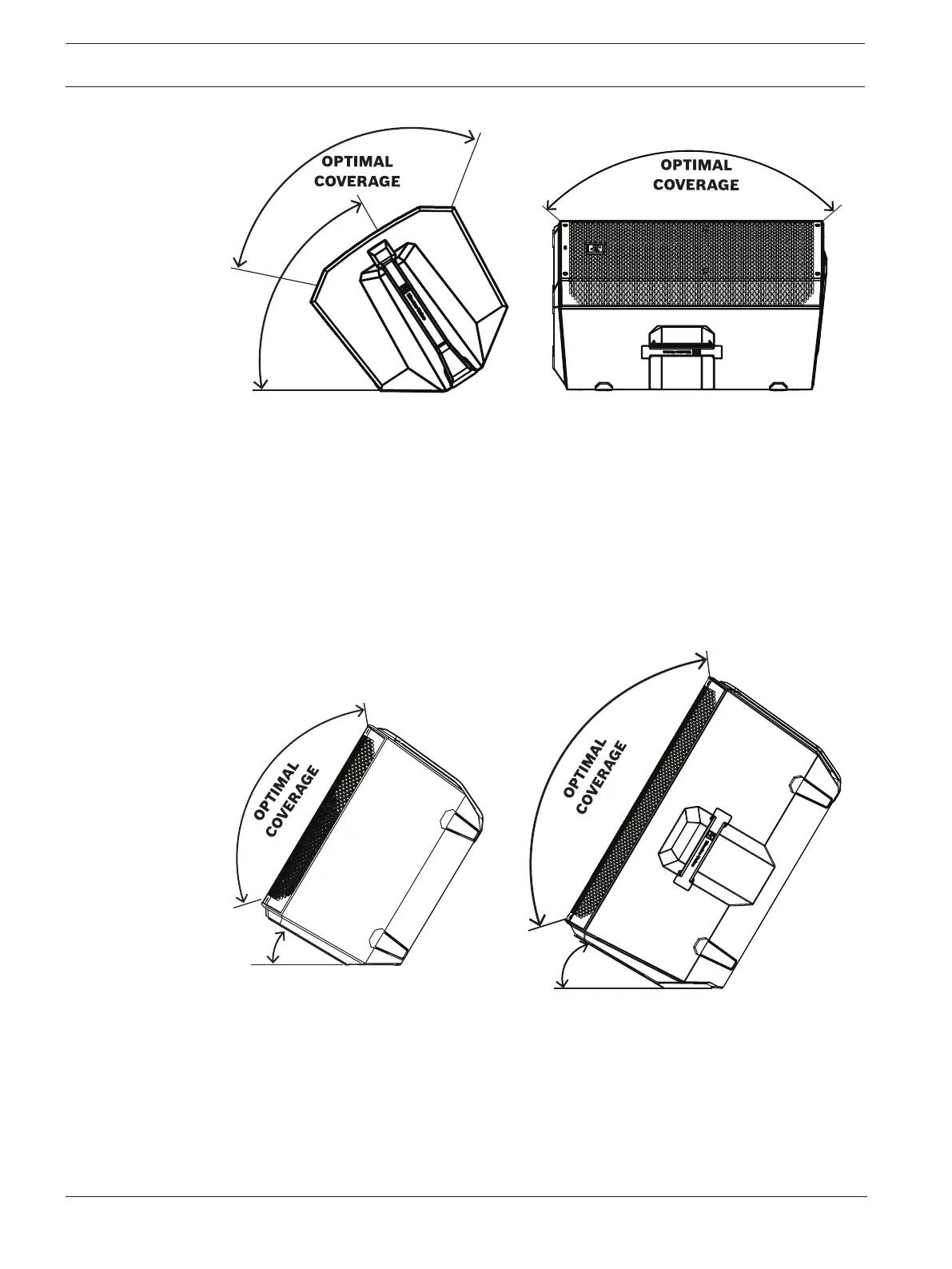

Figure4.2: EVERSE 12 optimum coverage in monitor position (side view left and front view right)
Setting up a loudspeaker in kickback position
To set up a loudspeaker in kickback position:
1. Place the loudspeaker on a level and stable surface.
2. Tilt the loudspeaker rearward to rest securely in the kickback position.
3. Safely route cables to prevent injury to performers, production crew, and audience
members.
4. Set the loudspeaker location to KICKBACK in the DSP control menu.
2 5 º
100
º
3 0
º
10
0
º
Figure4.3: EVERSE 8 and EVERSE 12 optimum coverage in kickback position
