5.2.1 Connecting the pressure transducer to New waterworks system
• Connect the pressure transducer in the hole of the filling cap ¼ "F of the
pump provided to the output pressure (depending on the type of pump);
• On the delivery of a multistage pump, assembled with a T-fitting is possible to
mount the pressure transducer in place of the pressure gauge.
Be aware that: in multi-stage pumps with the hole filling near aspiration it is not
possible to mount the pressure transducer at that hole because it will not do the
correct output pressure.
• Use ¼” F hole for the pressure gauge, which can be – in case – removed
for connecting the pressure transducer;
• Use any other ¼ "F hole on the pump hydraulics connections, possibly
removing the cap (such as a hole for venting air);

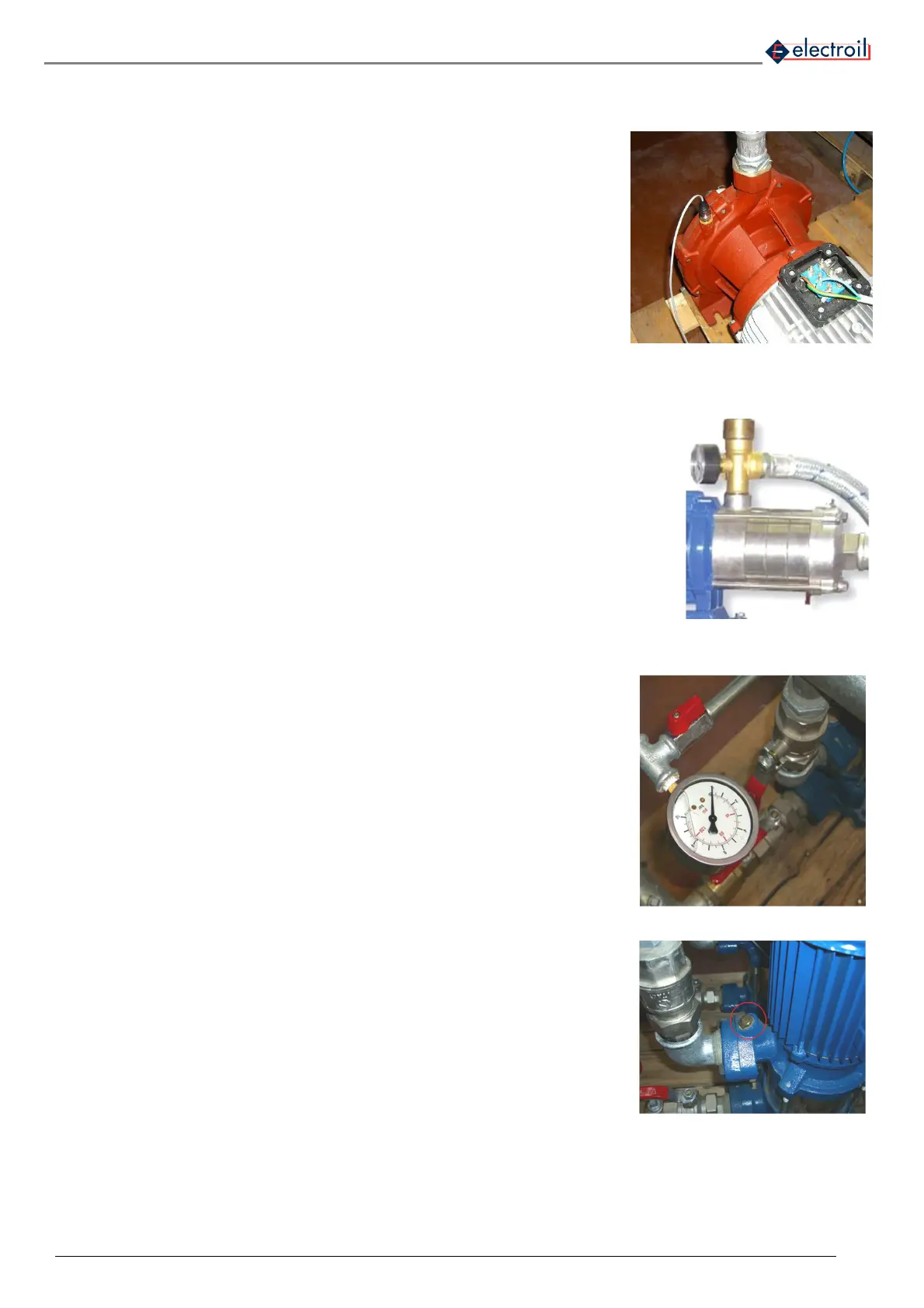

Fig. 7: Pressure gauge to replace
Fig. 8:
mounting transducer to
venting air hole on the delivery
pump
Fig 6:
multistage pump outlet
with manometer to replace
with
the transducer
Fig 5
: example of priming hole of pump
delivery with transducer mounted
