Electrolux Built-In Wall Oven User Manual

35
Section D - Replacement of parts
5.0 HOW TO REPLACE THE BLOWER MOTOR
1. Disconnect wall oven from electrical supply.
2. Remove wall oven from the cabinet. (section 1.0)
3. Remove the back panel. (section 2.0)
4. Remove the top panel. (section 2.0)
5. Remove the 4 screws holding the blower motor. (Figure
10)
5. Disconnect the 3 wires. (Figure 11)
6. Replace the motor and reassemble in reverse order.

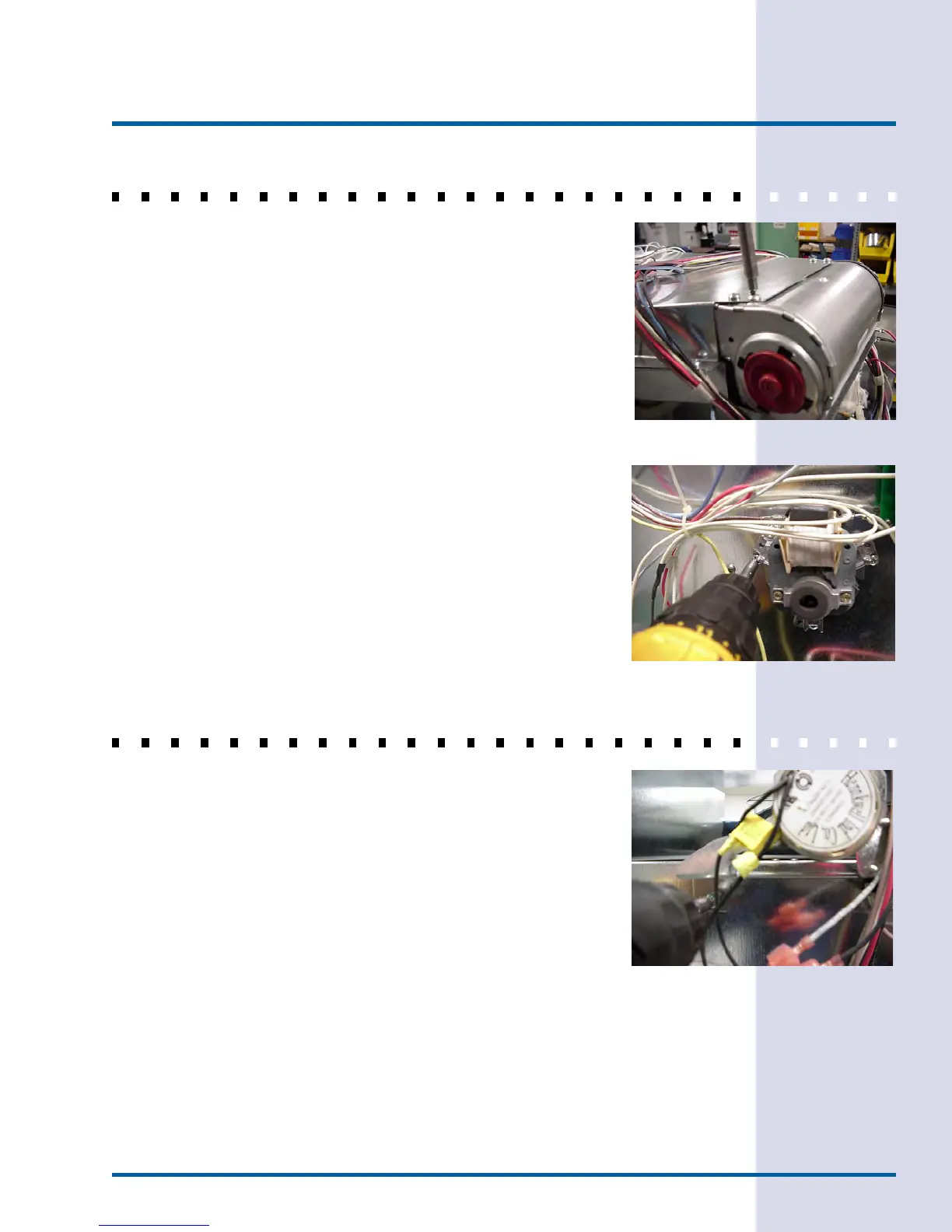

Figure 10
Figure 11
6.0 HOW TO REPLACE THE DOOR LATCH MOTOR
1. Disconnect wall oven from electrical supply.
2. Remove wall oven from the cabinet. (section 1.0)
3. Remove the back panel. (section 2.0)
4. Remove the 2 screws holding the latch motor. (Figure
12)
5. Disconnect the wires.
6. Replace the motor and reassemble in reverse order.
Figure 12
