A D I) I T I () N A I F E A I U R K S

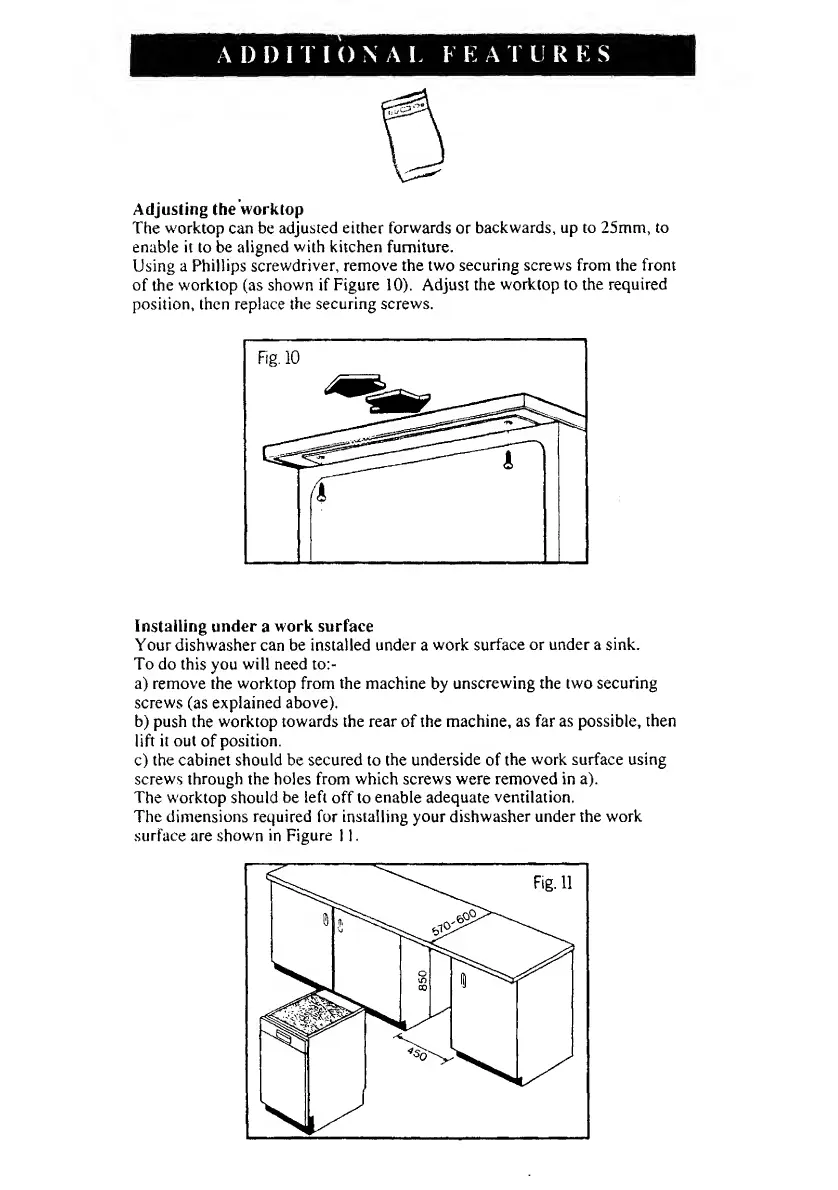

Adjusting the worktop
The worktop can be adjusted either forwards or backwards, up to 25mm, to
enable it to be aligned with kitchen furniture.
Using a Phillips screwdriver, remove the two securing screws from the front
of the worktop (as shown if Figure 10). Adjust the worktop to the required
position, then replace the securing screws.
Installing under a work surface
Your dishwasher can be installed under a work surface or under a sink.
To do this you will need to:-
a) remove the worktop from the machine by unscrewing the two securing
screws (as explained above).
b) push the worktop towards the rear of the machine, as far as possible, then
lift it out of position.
c) the cabinet should be secured to the underside of the work surface using
screws through the holes from which screws were removed in a).
The worktop should be left off to enable adequate ventilation.
The dimensions required for installing your dishwasher under the work
surface are shown in Figure 11.
