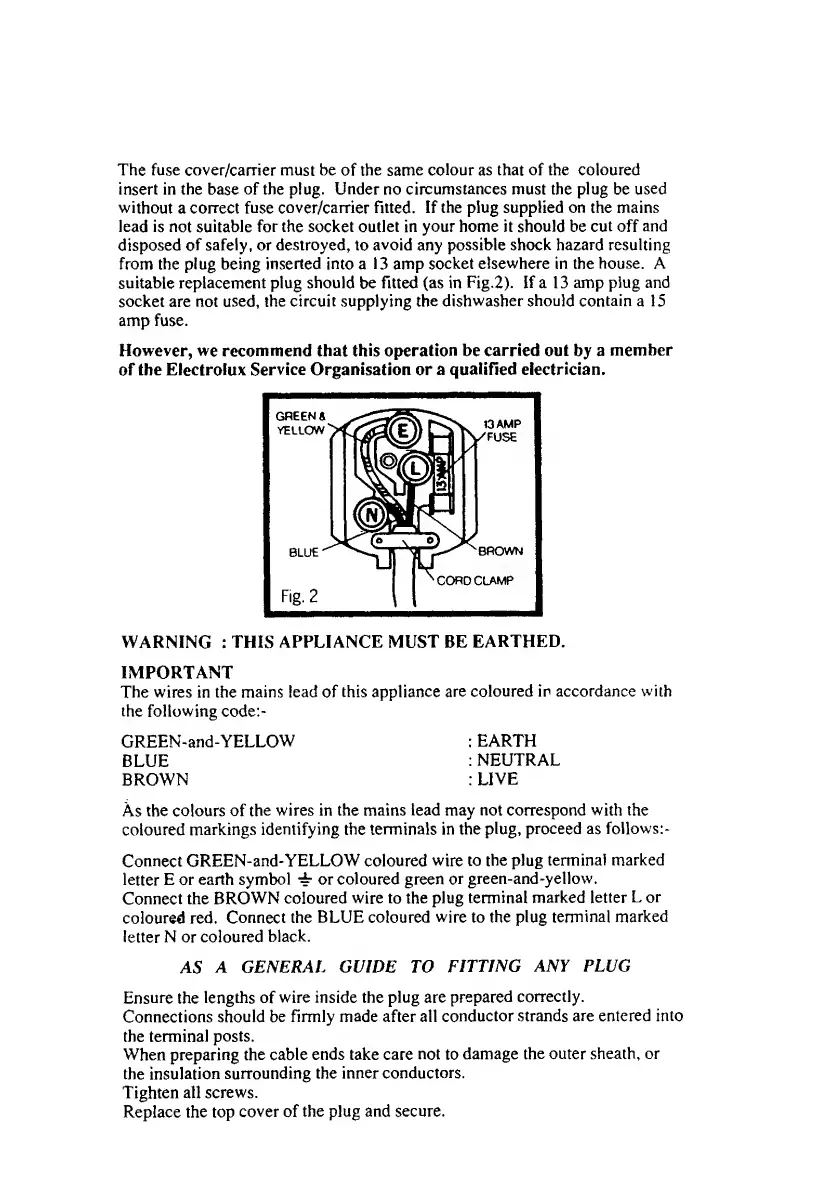

Electrolux BW450 - General Guide to Fitting Any Plug

The fuse cover/carrier must be of the same colour as that of the coloured
insert in the base of the plug. Under no circumstances must the plug be used
without a correct fuse cover/carrier fitted. If the plug supplied on the mains
lead is not suitable for the socket outlet in your home it should be cut off and
disposed of safely, or destroyed, to avoid any possible shock hazard resulting
from the plug being inserted into a 13 amp socket elsewhere in the house. A
suitable replacement plug should be fitted (as in Fig.2). If a 13 amp plug and
socket are not used, the circuit supplying the dishwasher should contain a 15
amp fuse.
However, we recommend that this operation be carried out by a member
of the Electrolux Service Organisation or a qualified electrician.
WARNING : THIS APPLIANCE MUST BE EARTHED.
IMPORTANT
The wires in the mains lead of this appliance are coloured in accordance with
the following code:-
GREEN-and-YELLOW : EARTH
BLUE :NEUTRAL
BROWN : LIVE
As the colours of the wires in the mains lead may not correspond with the
coloured markings identifying the terminals in the plug, proceed as follows:-
Connect GREEN-and-YELLOW coloured wire to the plug terminal marked
letter E or earth symbol ± or coloured green or green-and-yellow.
Connect the BROWN coloured wire to the plug terminal marked letter L or
coloured red. Connect the BLUE coloured wire to the plug terminal marked
letter N or coloured black.
AS A GENERAL GUIDE TO FITTING ANY PLUG
Ensure the lengths of wire inside the plug are prepared correctly.
Connections should be firmly made after all conductor strands are entered into
the terminal posts.
When preparing the cable ends take care not to damage the outer sheath, or
the insulation surrounding the inner conductors.
Tighten all screws.
Replace the top cover of the plug and secure.
