Electrolux BW450 - Inlet Water Connection; Specifications

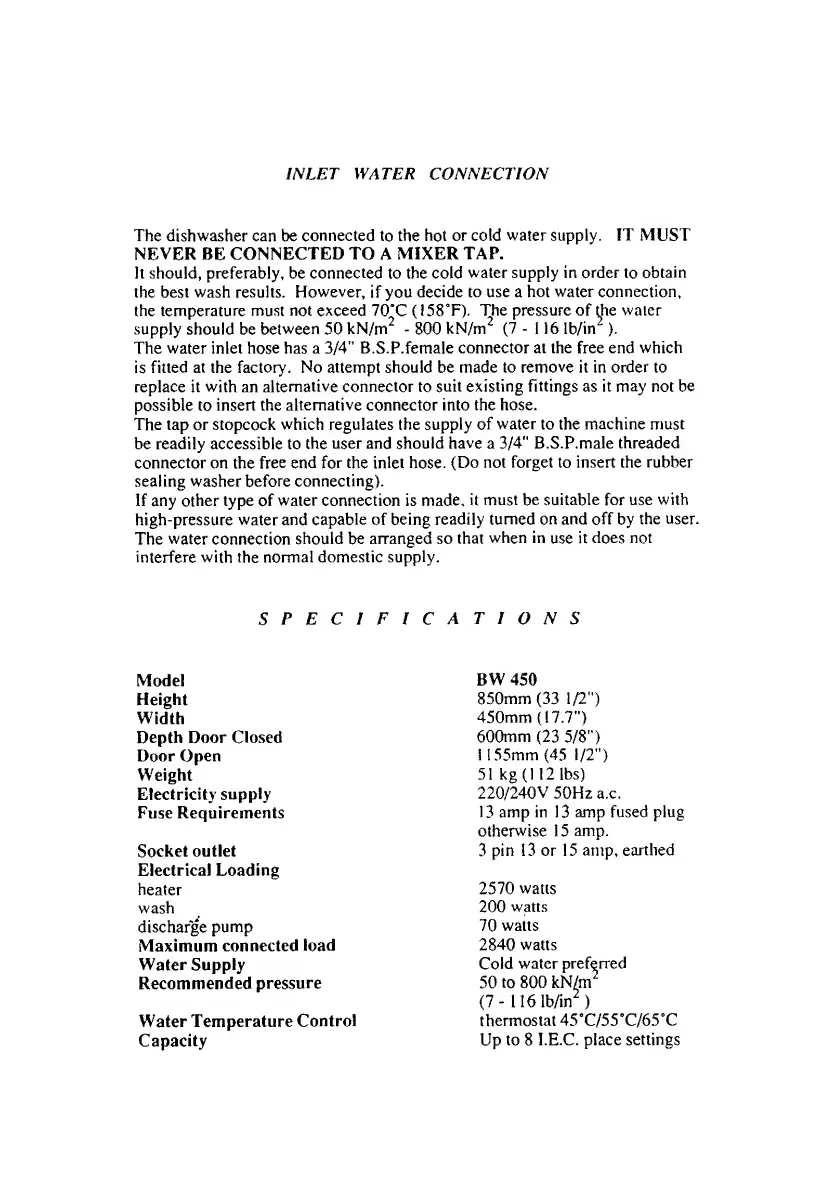

INLET WATER CONNECTION
The dishwasher can be connected to the hot or cold water supply. IT MUST
NEVER BE CONNECTED TO A MIXER TAP.
It should, preferably, be connected to the cold water supply in order to obtain
the best wash results. However, if you decide to use a hot water connection,
the temperature must not exceed 70"C (158°F). The pressure of the water
supply should be between 50 kN/m 2 - 800 kN/m 2 (7 - 116 lb/in 2 ).
The water inlet hose has a 3/4" B.S.P.female connector at the free end which
is fitted at the factory. No attempt should be made to remove it in order to
replace it with an alternative connector to suit existing Fittings as it may not be
possible to insert the alternative connector into the hose.
The tap or stopcock which regulates the supply of water to the machine must
be readily accessible to the user and should have a 3/4" B.S.P.male threaded
connector on the free end for the inlet hose. (Do not forget to insert the rubber
sealing washer before connecting).
If any other type of water connection is made, it must be suitable for use with
high-pressure water and capable of being readily turned on and off by the user.
The water connection should be arranged so that when in use it does not
interfere with the normal domestic supply.
SPECIFICATIONS
Model
Height
Width
Depth Door Closed
Door Open
Weight
Electricity supply
Fuse Requirements
Socket outlet
Electrical Loading
heater
wash
discharge pump
Maximum connected load
Water Supply
Recommended pressure
Water Temperature Control
Capacity
BW 450
850mm (33 1/2")
450mm (17.7")
600mm (23 5/8”)
1155mm (45 1/2")
51 kg (112 lbs)
220/240V 50Hz a.c.
13 amp in 13 amp fused plug
otherwise 15 amp.
3 pin 13 or 15 amp, earthed
2570 watts
200 watts
70 watts
2840 watts
Cold water preferred
50 to 800 kN/m 2
(7-116 lb/in 2 )
thermostat 45"C/55°C/65 0 C
Up to 8 I.E.C. place settings
