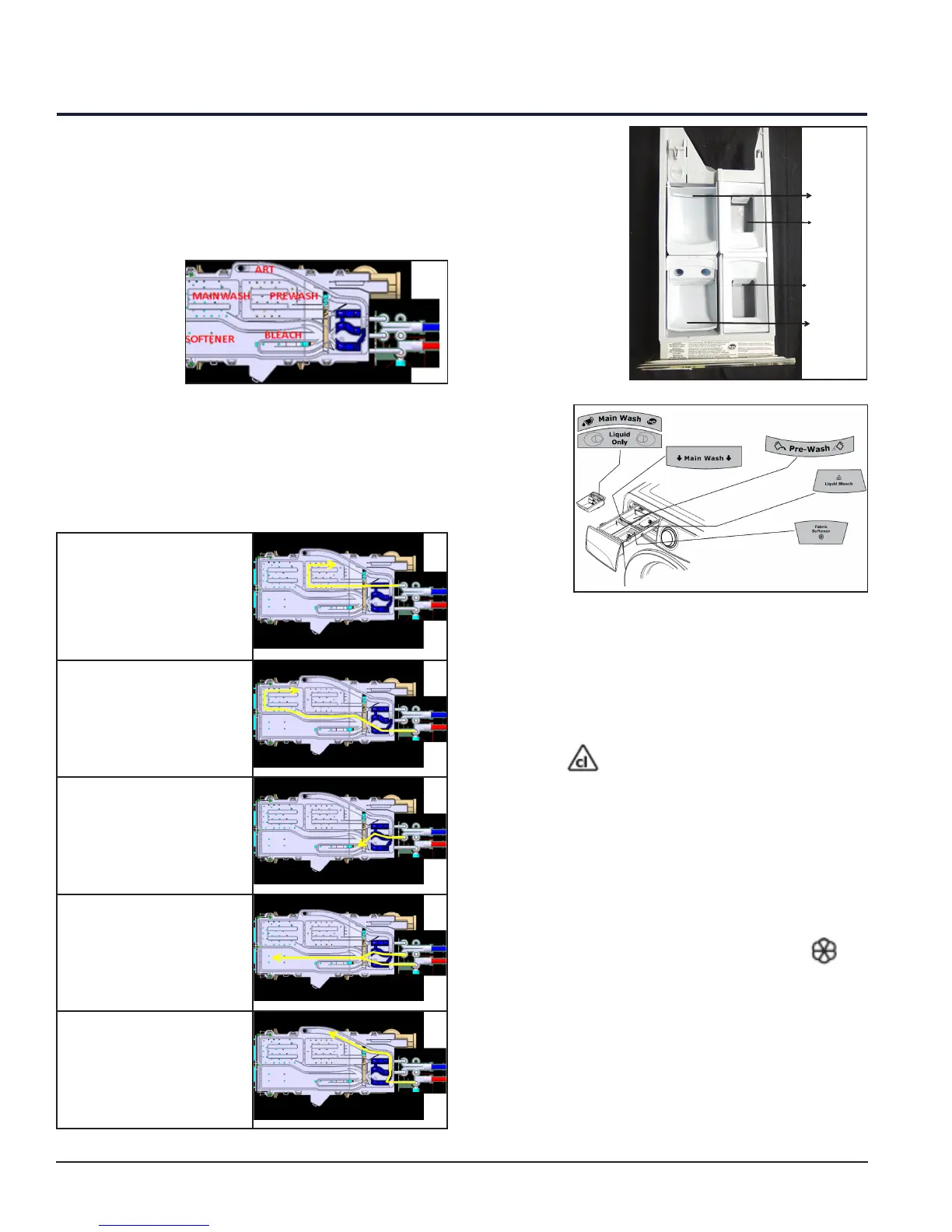

6.1 Detergent Dispenser
6.1.1 Detergent Dispenser with
Multi-Way Solenoid Valves
The water in
the detergent
dispenser is
filled through a
Solenoid Valve
for both cold
and hot water.
The detergent dispenser has 4 compartments and
one inlet for ART (Advanced Rinse Technology).
6.1.2 Operating Principle of
4-Way Compartment Conveyor
Water fill to Pre-Wash
compartment (Cold
Water)
Water fill to Main wash
compartment (Cold,
Warm and Hot water)
Water fill to Bleach
compartment (Cold
Water)
Water fill to Softener
compartment (Warm
Water)
Advanced Rinse
Technology - ART (Cold /
Warm Water)
6. Technical Characteristics
Main Wash
Liquid Detergent
– Add the
recommended
amount of a high-
efficiency liquid
detergent to the
“Main wash-liquid
only” cup. Do not
exceed the Max.
fill line. Liquid
Detergent can also
be added directly
to the
Main Wash
Chamber
when not
using the
Pre-Wash
chamber.
Powder
Detergent
– To use
high-efficiency powder detergent, remove the “Main
Wash – Liquid only” cup and add the powder directly
to the Main Wash Detergent Chamber.
Liquid Chlorine Bleach
• If desired, add liquid chlorine bleach to the
chamber labelled “Liquid Bleach” marked with this
symbol .
• Fill to the Min. line for small loads and the Max.
line for large loads.
• Do not fill above the Max. line.
Liquid Fabric Softener
• If desired, pour the recommended amount of
liquid Fabric softener into the chamber labelled
“Fabric Softener” marked with the symbol .
• Fill to the Min. line for small loads and the Max.
line for large loads.
• Do not fill above the Max. line.
Detergent for Pre-wash
For Heavily soiled or stained loads, select the pre-
wash option and add the recommended amount of
detergent to the “Pre-Wash” detergent cup.
Pre-Wash
Liquid Bleach
Main Wash
Fabric Softener
