9.3 Solenoid Valve Accessibility

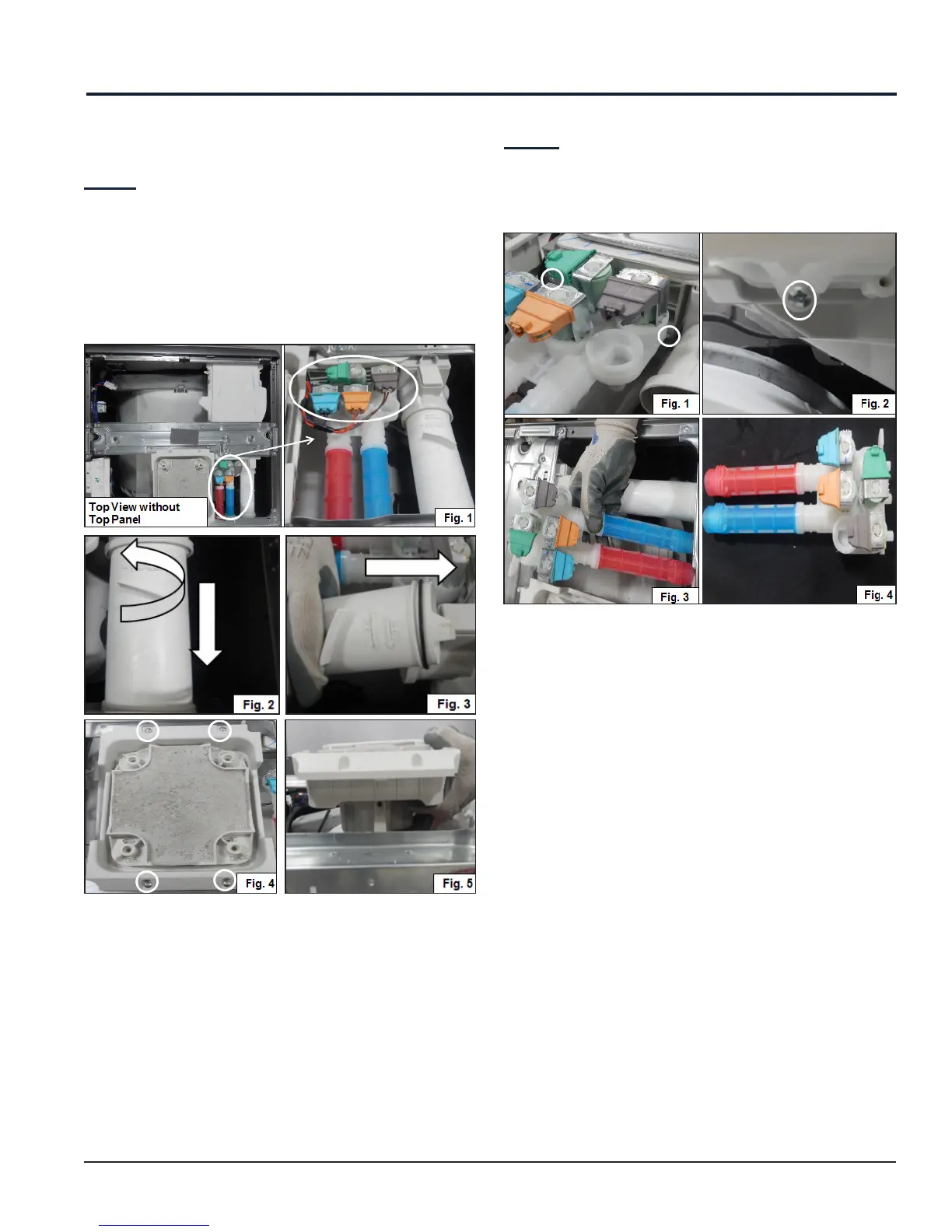

Step: 1
Detach the terminals from the Solenoid Valve
(See Fig. 1), rotate the dispenser overflow tube in
anticlockwise direction to unlock it, and pull it in the
marked direction (See Fig. 2). Take out the dispenser
overflow tube (See Fig. 3), loosen the screws of the
counter weight (See Fig. 4), and lift the counter weight
to take it out (See Fig. 5).
Step: 2
Loosen up the screws (See Fig. 1) and from the bottom
of Solenoid Valve (See Fig. 2), detach the Solenoid
Valve from the Dispenser (See Fig. 3 and Fig. 4).
