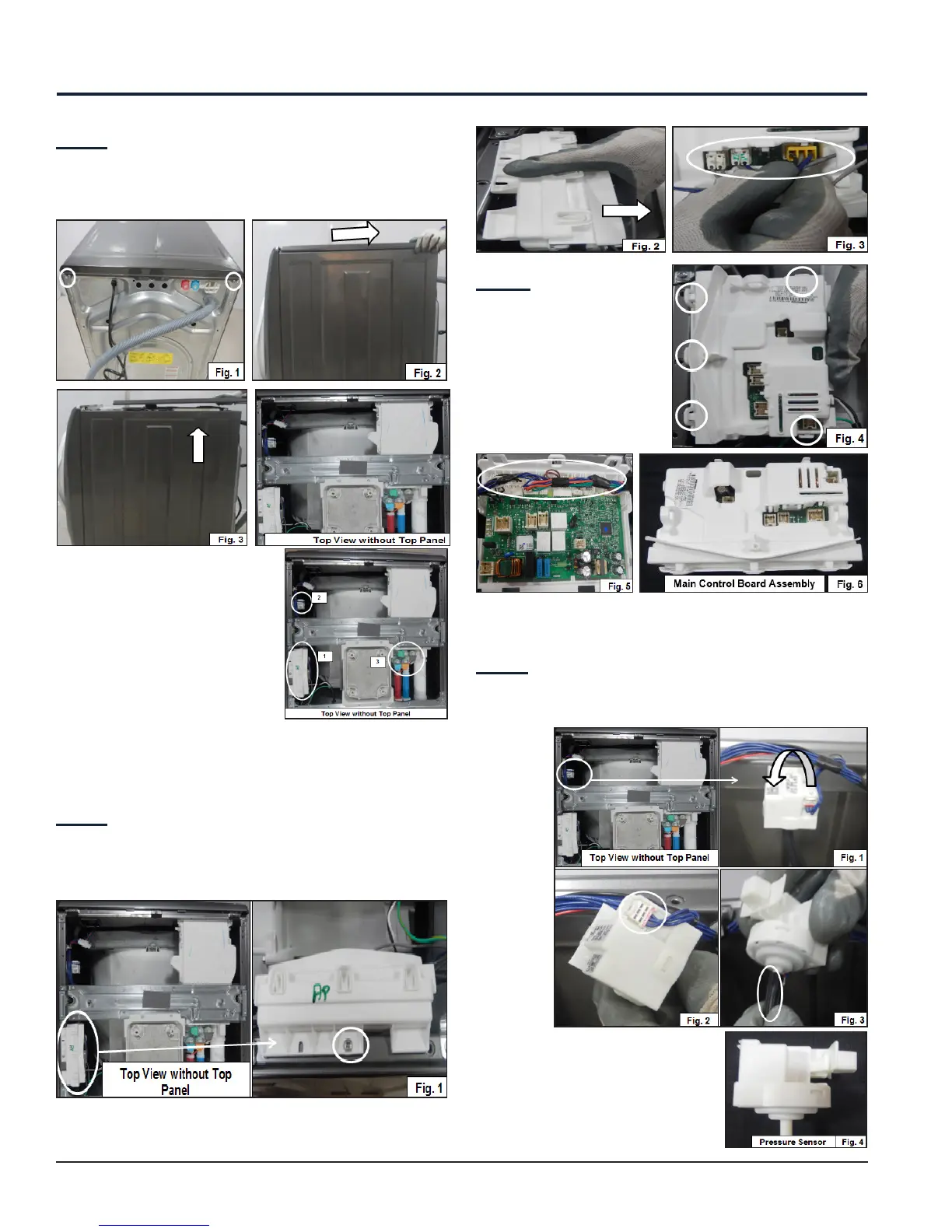

9. Top Panel Accessibility
Step: 1
Loosen the screws (See Fig. 1), and slide the Top Panel
backwards until it gets unlocked (See Fig. 2). Now lift
the Top Panel (See Fig. 3).
From the Work Top we can
access:
1. Main Control Board
2. Pressure Sensor
3. Solenoid Valve
9.1 Main Control Board Assembly
Accessibility
Step: 1
Loosen up the screw (See Fig.1), slide the board as
shown (See Fig. 2), and detach the connectors (See
Fig. 3).
Step: 2
Release the snaps
(See Fig. 4), detach the
remaining connectors
(See Fig. 5), and take out
the Main Control Board
Assembly (See Fig. 6).
9.2 Pressure Sensor Accessibility
Step: 1
Rotate the Pressure Sensor in anticlockwise direction
from the side panel (See Fig. 1), detach the connector
(See Fig.
2), remove
the tube
(See Fig.
3), and
take
out the
Pressure
Sensor
(See Fig.
4).
