Electrolux EOB 96000 - Oven Door Glass Pane Removal; Removing Internal Glass Panes

32 electrolux

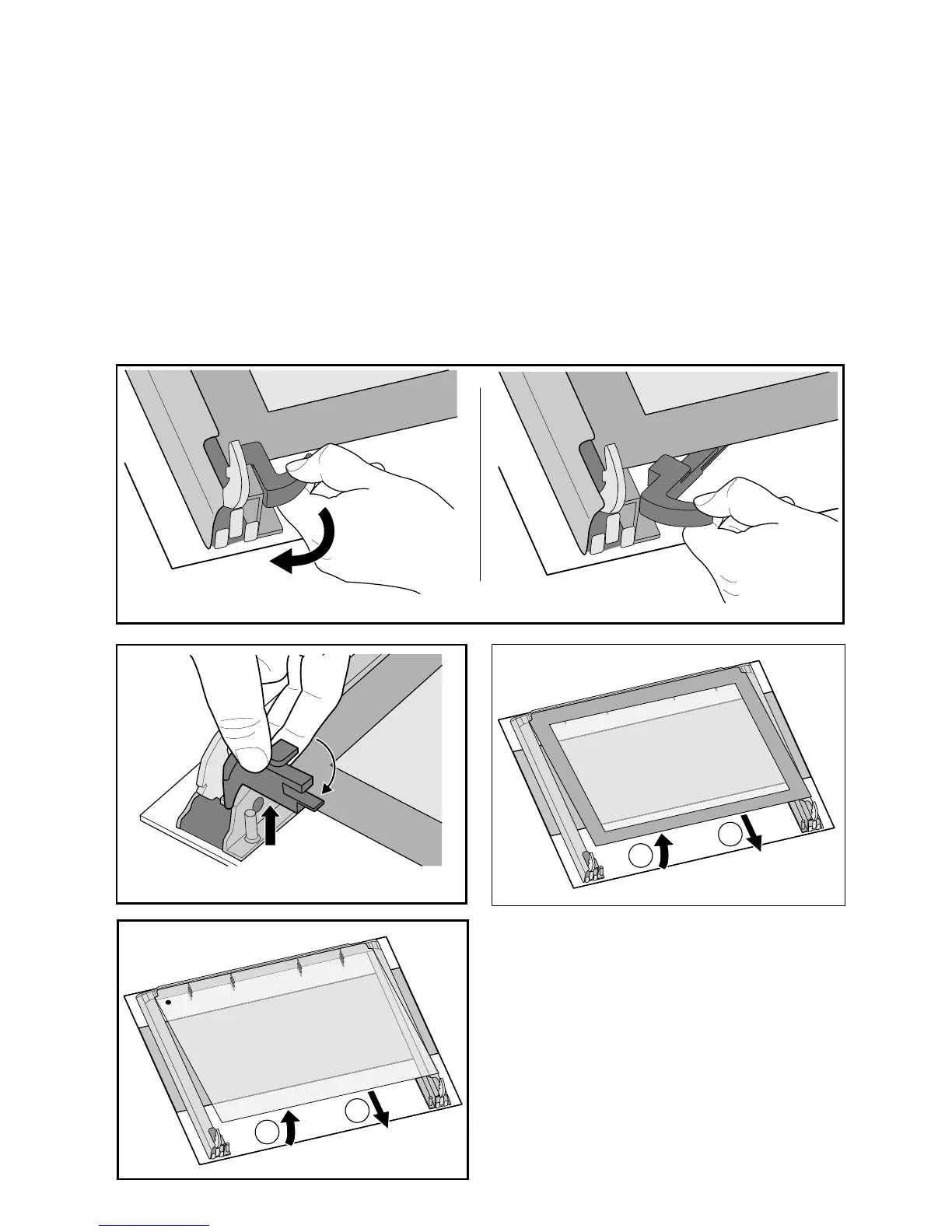

7. release the locking system to remove the
internal panes of glass (Fig. 34);
8. turn the 2 fasteners 90° and extract them
from their seat (Fig. 35);
9. Gently lift and carefully take off the upper-
most pane marked by a decorative frame
on four sides (Fig. 36).
10. Repeat the procedure described in point
9. for the innermost pane (Fig. 37).
90°
1
2
1
2
Fig. 35
Fig. 36
Fig. 37
Fig. 34
