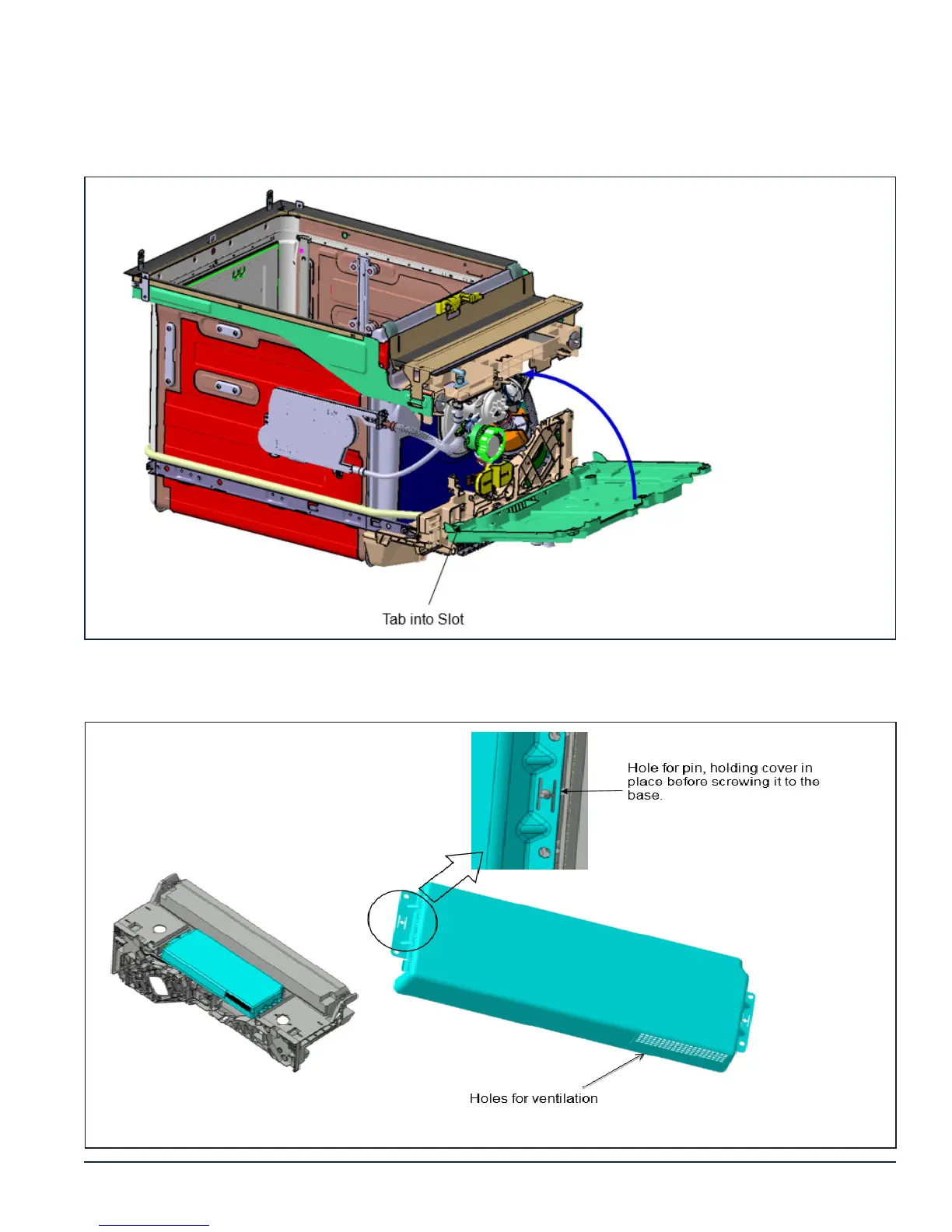

5.3 Assembly Instructions of the Bottom Tray
5.4 Metal Cover for Main Board
1. Locate the tray so the tabs on
the tray matches the slots in the
base.
The tray should be horizontal if the
machine lays on its back.
2. Swing the tray 90 degrees and
push it on to the hinge bars.
The metal cover is a fire shield and protects
the electronics from mechanical stresses during
transport and installation handling.
