Electrolux W565H - External Coin Meter and Central Payment (2 A)

58
I/Omodules
12.3FunctionsforI/O-cards
Theelectricalschematiccanbeoneofthefollowing:

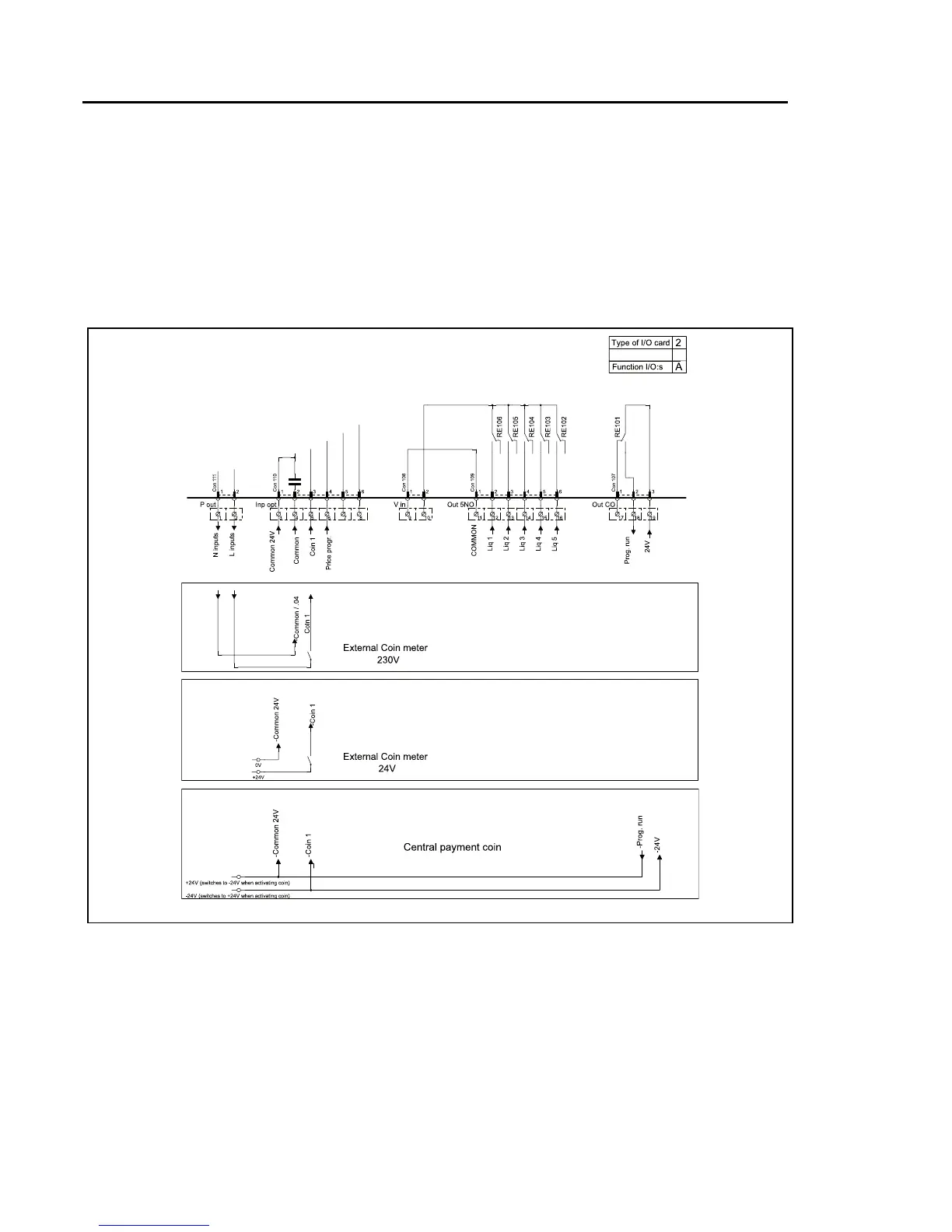

12.3.1Externalcoinmeter/Centralpayment(2A)
Thesignalreceivedfromexternalcoinmetersmustbeapulsebetween300–3000ms(500msis
recommended)withaminimumpauseof300ms(500msisrecommended)betweentwopulses.
69
g.6606A
