Electrolux W565H - Central Payment System (2 C)

60
I/Omodules

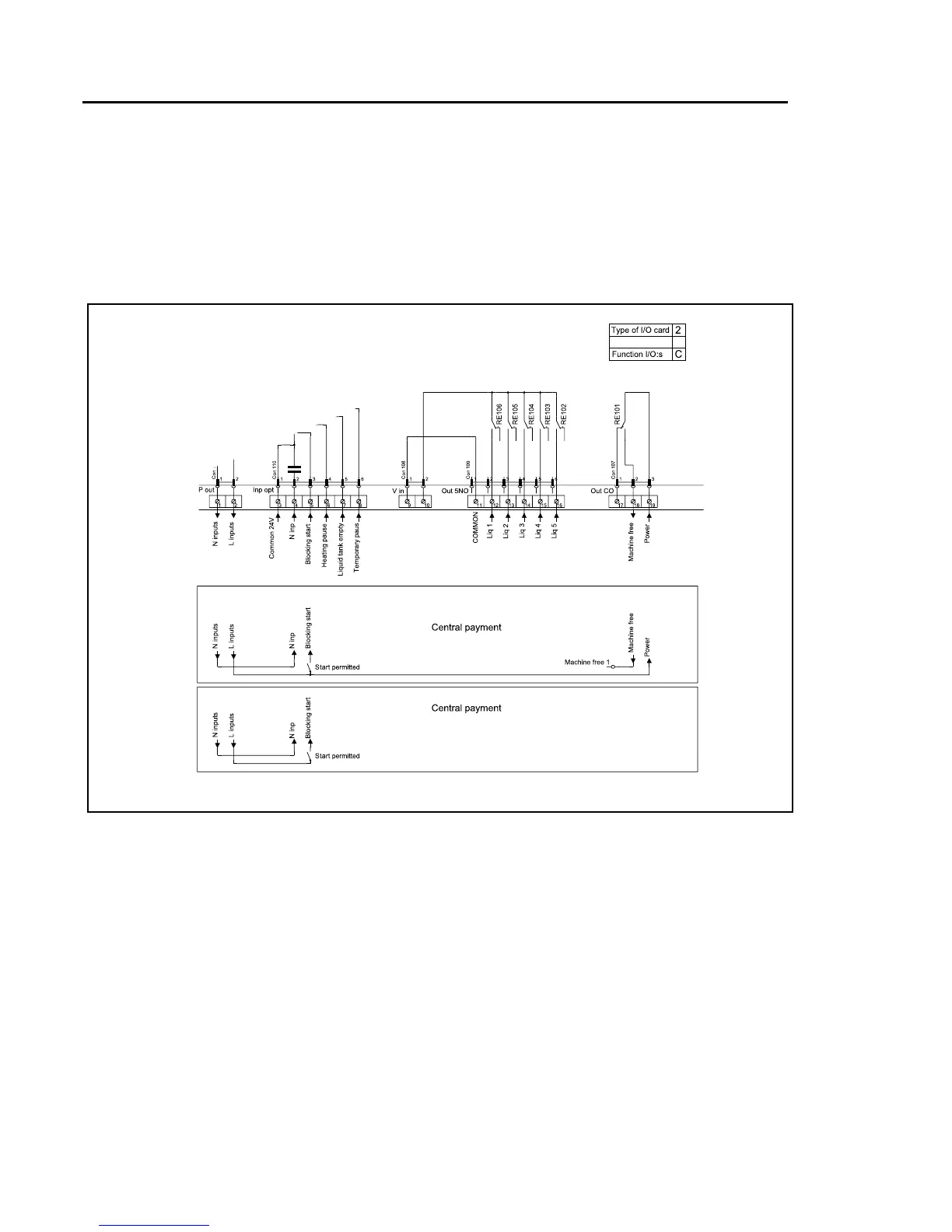

12.3.3Centralpayment(2C)
Thecentralpaymentorbookingsystemshalltransmitanactive(high)signaltothemachineonce
permissionhasbeengrantedtostartthemachine.Thesignalmustremainactive(high)untilthe
machinestarts.Afeedbacksignalwillbepresentonconnection18andremainactive(high)whilst
themachinedoorisclosedbuttheprogramhasnotstarted.Thefeedbacksignalispowered
by230Vor24Vfromconnection19.
71
g.6313A
