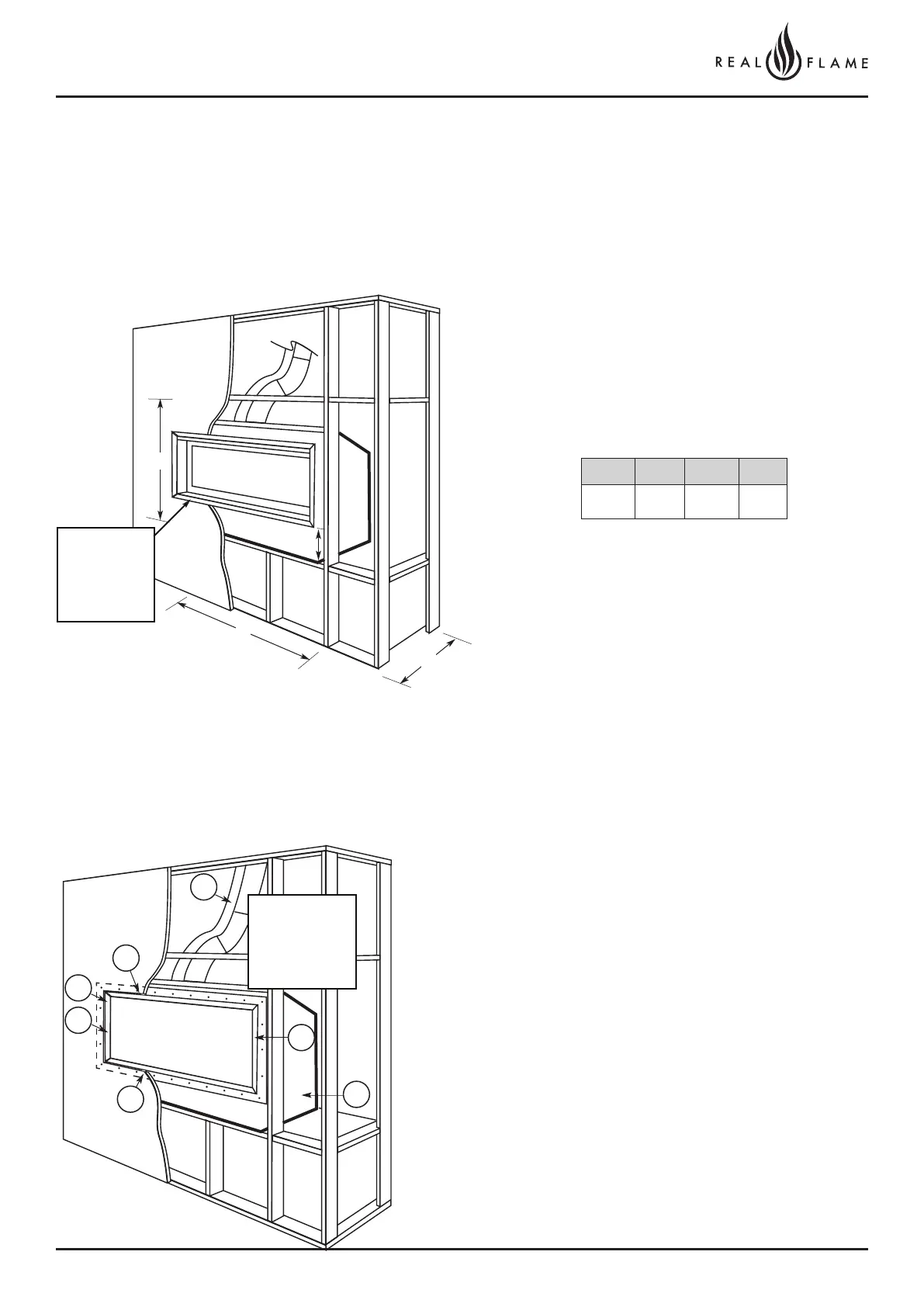

MINIMUM FRAMEOUT DIMENSIONS
50MM TRIM
A B C D
660 112 0 460 143
18MM TRIM
1. Install Element onto base and connect flue, gas and power.
2. Fit 18mm trim assembly.
3. Attach 4 sided flange kit to frame.
4. Remove 18mm assembly.
5. Clad wall to flange kit and finish.
6. Refit 18mm trim assembly.
NOTE :
If the wall is being plastered we recommend fixing stopping bead up to the flange to give a clean
shadow line. The depth of the flange profile is 22mm to allow for tiling or rendering. If plaster is
used we recommend packing out to 22mm.
1
2
1
3
4
6
5
Plaster or a non
combustible
cladding to run
beyond stud and
behind trim
Plaster or a non
combustible
cladding to run
beyond stud
and behind trim
A
B
D
C
