117

Page

CONVERSION DETAILS / INJECTOR – PILOT AND BURNER

REMOVAL

Natural gas / Propane

TOOLS REQUIRED

10mm spanner

15mm spanner

16mm Spanner (recommended) or small/medium shifter

No2 Phillip head screwdriver

Allen key 2.5mmAF

BURNER

Turn appliance off and allow to cool.

Turn off gas to appliance

Turn off and isolate appliance from electrical supply

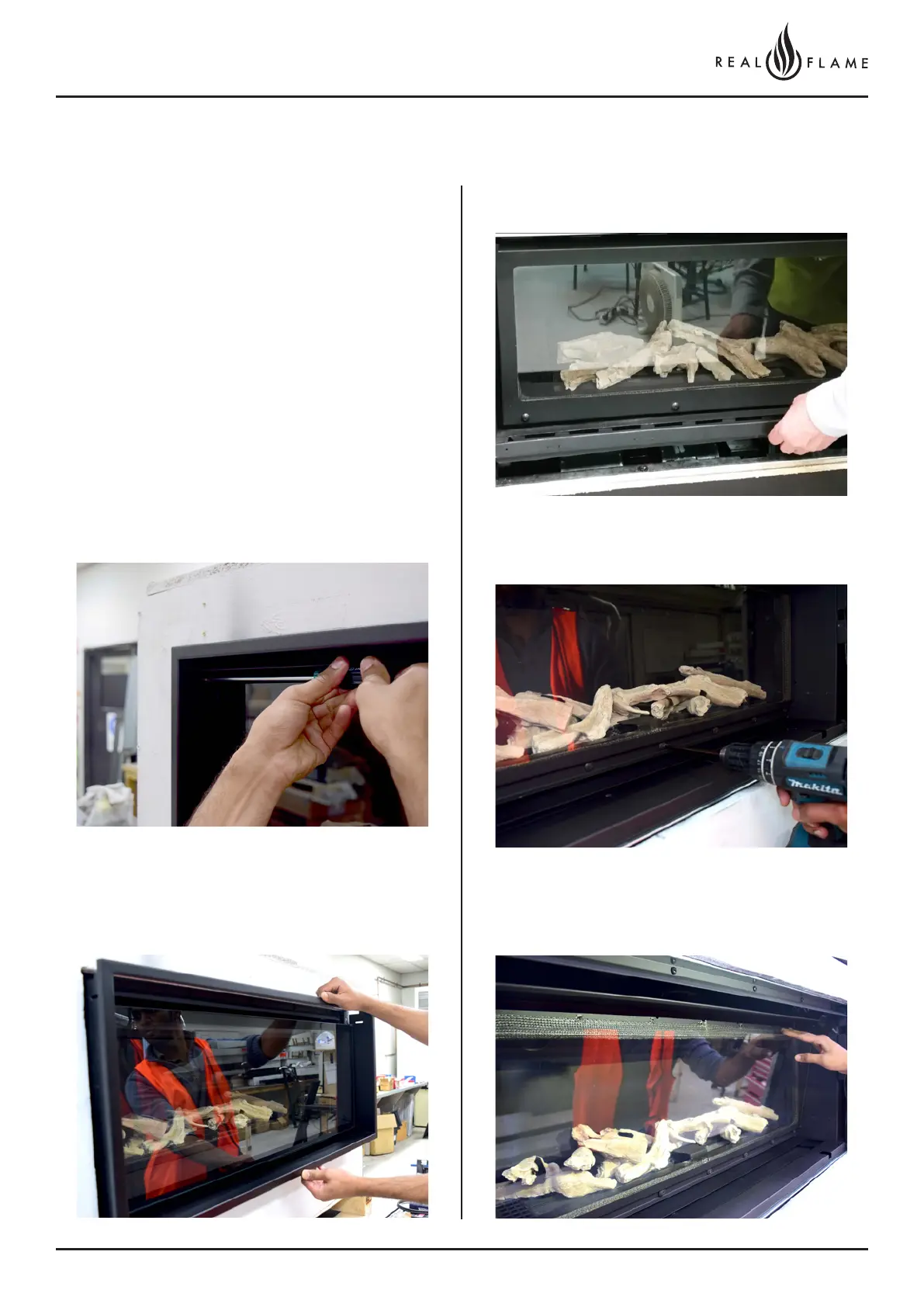

Remove trim screws (2 off)

Remove trim (Slides out)

Remove lower access panel

Remove door screws

Lift off door (Ensure door is cool before attempting)

Remove media where ﬁtted
