Element 900 - Rooftop T er MI N Ati O N W I Th Ext er N a L Moto R

75
Page
AIR INTAKE 75MM ALUMINUM FLUE
MAXIUMUM RUN 9M WITH 5 BENDS
SUPPLIED AS 9M LENGTH
MAY BE CUT TO LENGTH
EXHUST FLUE 75MM ALUMINUM FLUE
MAXIUMUM RUN 9M WITH 5 BENDS
SUPPLIED AS 9M LENGTH
MAY BE CUT TO LENGTH
EXHAUST FLUE MUST BE INSULATED USING
25mm GLASSWOOL PIPE INSULATION AS
SUPPLIED BY GLEN DIMPLEX AUSTRALIA.
INSULATION MUST BE FITTED TO EXHAUST
ONLY (HOT SIDE).
INSULATION MUST START AS CLOSE TO
APPLIANCE AS POSSIBLE AND MUST BE
FULLY SEALED WITHIN 0.3M OF EACH END.
BENDS MUST BE INSULATED AND JOINS
TAPED TO PREVENT GAPS.

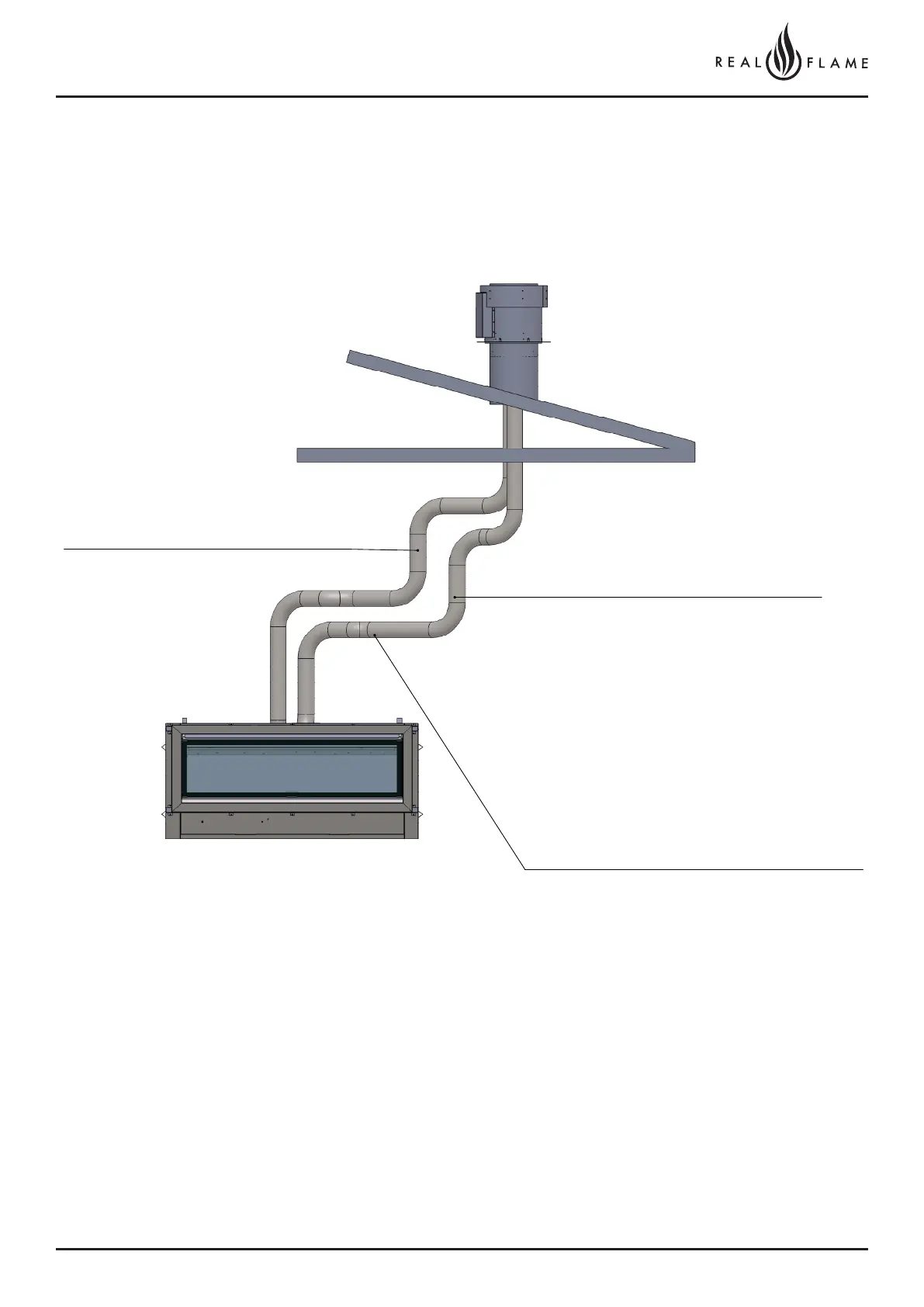

ROOFTOP TERMINATION WITH EXTERNAL MOTOR
