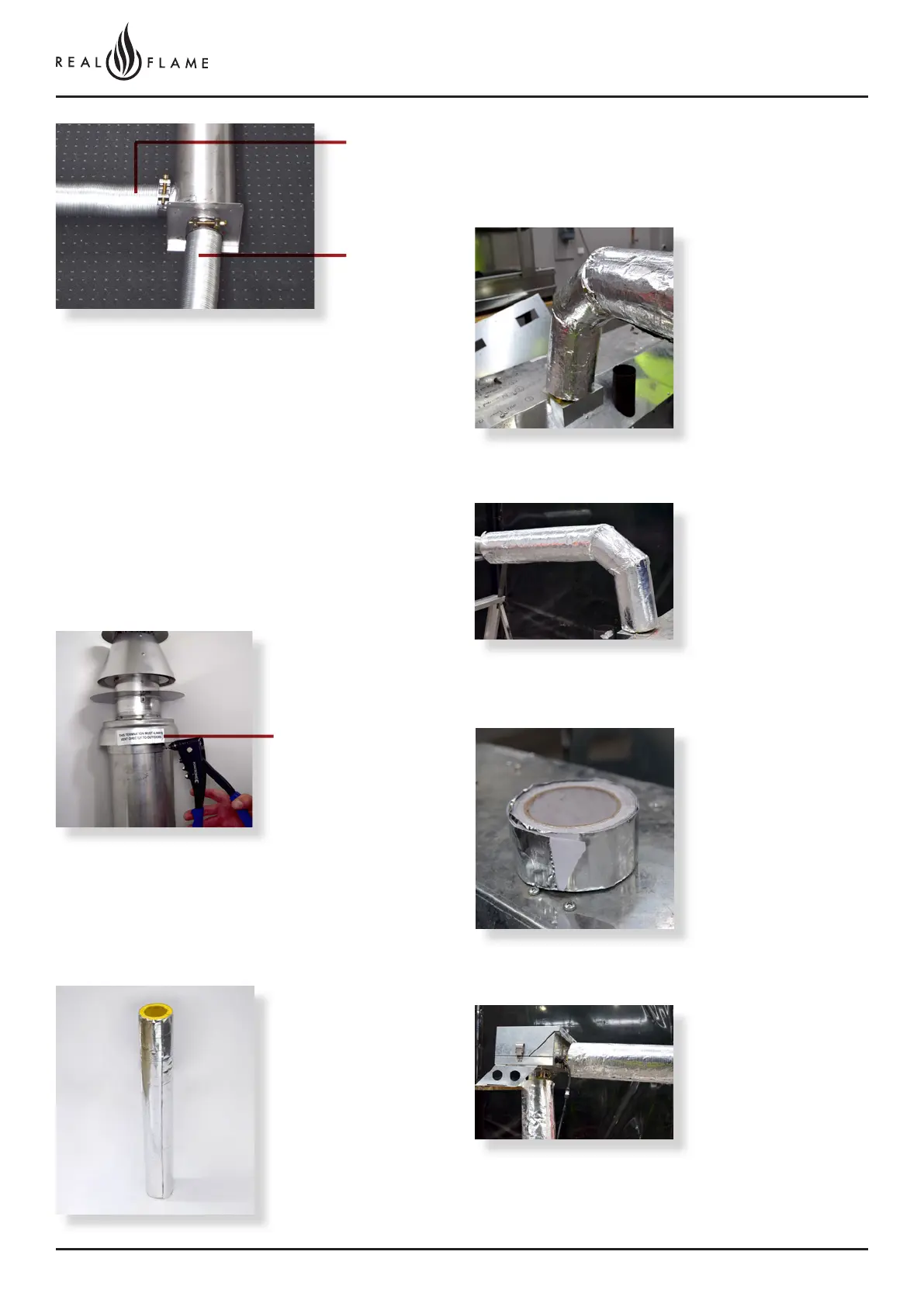

Slide flue onto connection spigot fully.
Tighten clamp fully.
Wipe excess silicon, visually check connection to ensure
connection is fully sealed.
Air Intake
Connection
Screw or rivet in 3 places to
hold in place.
IMPORTANT- Apply
silicon bead between
inner connection of cowl
and flue pipe to seal
inner flue to cowl. Outer
does not require sealing.
Fit roof sealing method
(Decktite or similar).
Ensure flue is supported and
clipped where required.
Flue Discharge
Connection
Fit flue exhaust insulation
Insulated with 25mm foil
faces glasswool pipe
insulation, as supplied by
Glen Dimplex Australia.
Insulation must start as close to the gas space heater as
possible
(Only exhaust flue is to be insulated)
Insulation to be fully closed
and sealed along length.
Bends were practical
should be insulated, by
cutting the insulation into
segments and taping
together.
Joins can be taped
together using aluminum
foil self adhesive tape.
Insulation may be fitted
prior and after the inline
powerflue fan.
Failure to fit insulation on the exhaust flue may result in
condensation failures with the appliance.
