73
Page

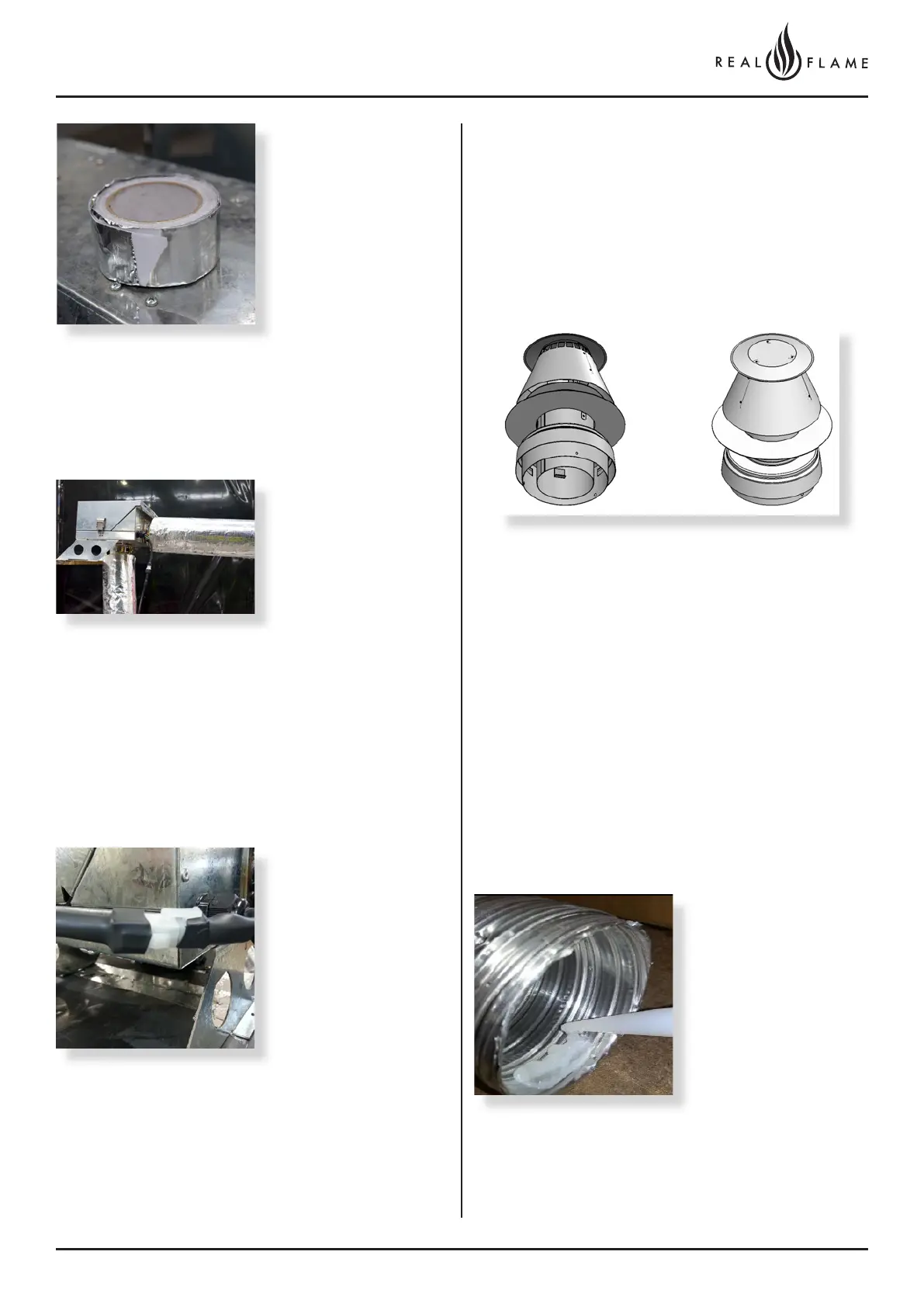

Connect hot exhaust flue
and air intake flue as per
below.
Apply an 8mm silicon
bead fully around the
inside of the flue end
Fit flue clamp over flue
(loosely).
Cut rooftop penetration to length if required.
Install in to roof penetration.
Install supports for base of penetration kit.
6. Connection to rooftop terminal
Prepare roof penetration. Remove cowl from termination
if fitted.
Joins can be taped
together using aluminum
foil self adhesive tape.
Insulation may be fitted
prior and after the inline
powerflue fan.
Failure to fit insulation on the exhaust flue may result in
condensation failures with the appliance.
Insulation to be run for the first 3m from the appliance. For
flue runs shorter than 3m, insulation is not required.
5. Connect power
lead to fan module.
Ensure lead is clipped
to support where
required.
Do not use connection to
support lead.
Connection to wall terminal
Loose fit connections (wall termination connections)
