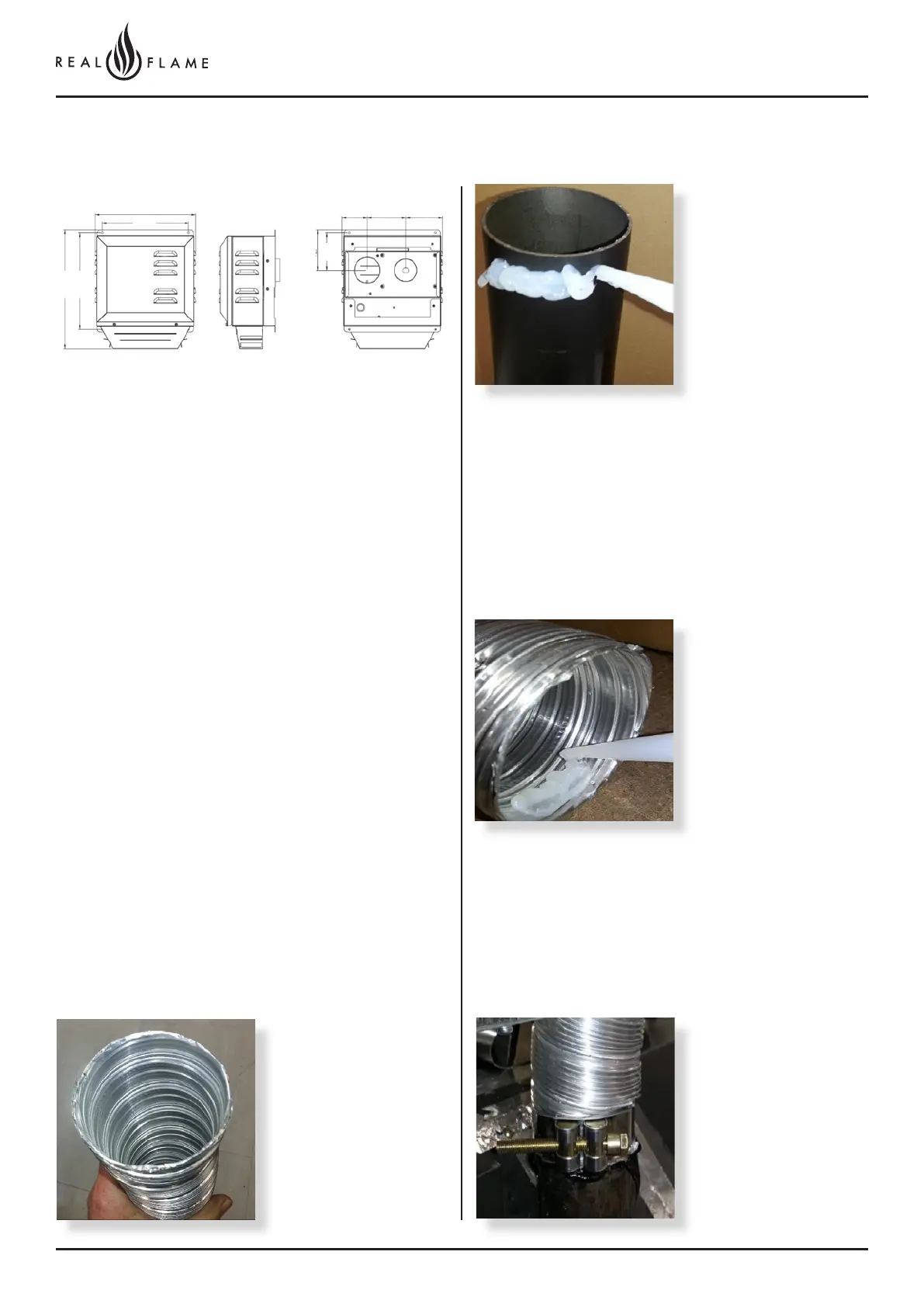

EXTERNAL WALL MOUNTED FAN MODULE INSTALLATION
1. Wall mounted fan module – terminal must be installed
with clearances as specified by AS5601.1 Clause
6.9.3.
2. Run exhaust flue and air intake flue as required
Maximum run 9m. Flues can be run next to each other.
Maintain clearances to combustibles.3 .
3. Insulation Instructions-
Exhaust flue must be insulated using 25mm glass wool
pipe insulation as supplied by Glen Dimplex Australia.
Insulation must be fitted to exhaust (hot side only).
Insulation must start as close to appliance as possible
(within 300mm).
Insulation must finish as close to discharge as possible
(within 300mm).
Insulation must run around bends.
Insulation to be taped to ensure no gaps.
Insulation may be fitted while running flue or at final
stage of installation.
(shown at flue stage in Instructions)
4. Connection to appliance
Cut tube to length where
required.
Ensure ends are burr free
and round, test fit flue will
slide over connection.
Recommended Silicon
– Non-acetic, neutral
cure 150°C or higher
temperature rated.
Bostik RTV 926 or similar.
Apply an 8mm thick silicon
bead fully around heater
connection approx. 10mm
from the top.
325
80 125 12 0
382
12 8
12 0
310
280
Apply an 8mm silicon
bead fully around the
inside of the flue end
(heater connection end)
Fit flue clamp over flue
(loosely).
Slide flue onto connection
spigot fully.
Tighten clamp fully.
Wipe excess silicon,
visually check connection
to ensure connection is
fully sealed
