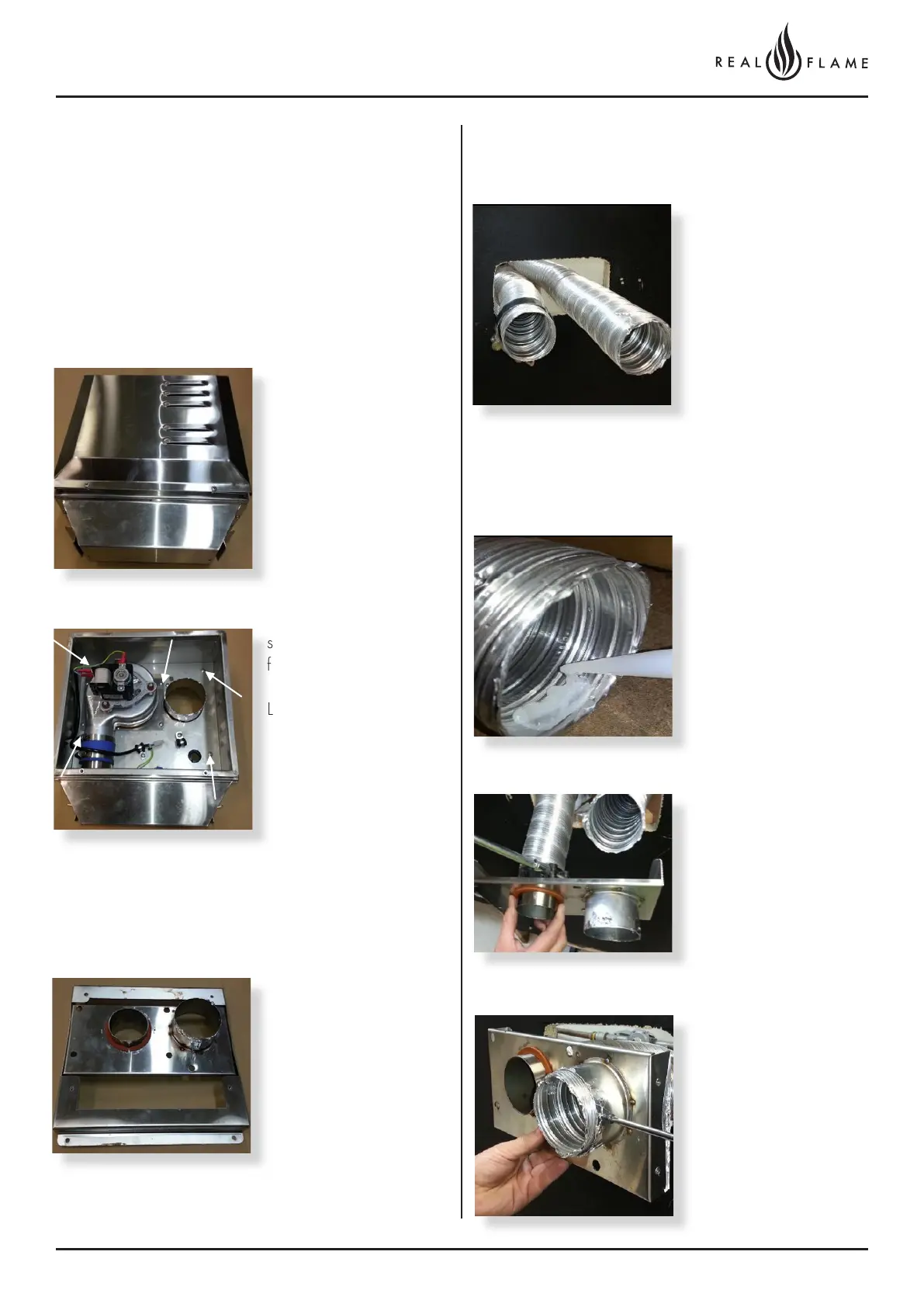

5. Repeat above with air intake flue pipe to heater
connection.
6. Clip flues as required to provide adequate support.
6. Connection to wall mounted fan terminal.
Feed air intake flue pipe
through location spigot
and fit retaining screw.
Push connection plate into
approximate
position.
Slide flue onto connection
spigot fully. Tighten clamp
fully.
Wipe excess silicon,
visually check connection
to ensure connection is
fully sealed.
Remove wall mount plate
from flue connection plate.
Apply an 8mm silicon
bead fully around the
inside of the flue end
(heater connection end)
Fit flue clamp over flue
(loosely).
Cut flue exhaust tube
(hot tube) to length
(Approximately flush with
wall exit). Connection
plate will sit against wall.
Cut Air intake flue.
Ensure ends are burr free
and round, test fit flue will
slide over connection.
Pull flue through approx.
100mm (will be pushed
back once terminal is
fitted).
Remove cover from fan
terminal
Remove main assembly
from the rear wall
mounting plate assembly.
Remove the 5 screws as
shown. (Do not remove
fan plate screws)
Lift off main fan terminal
assembly.
