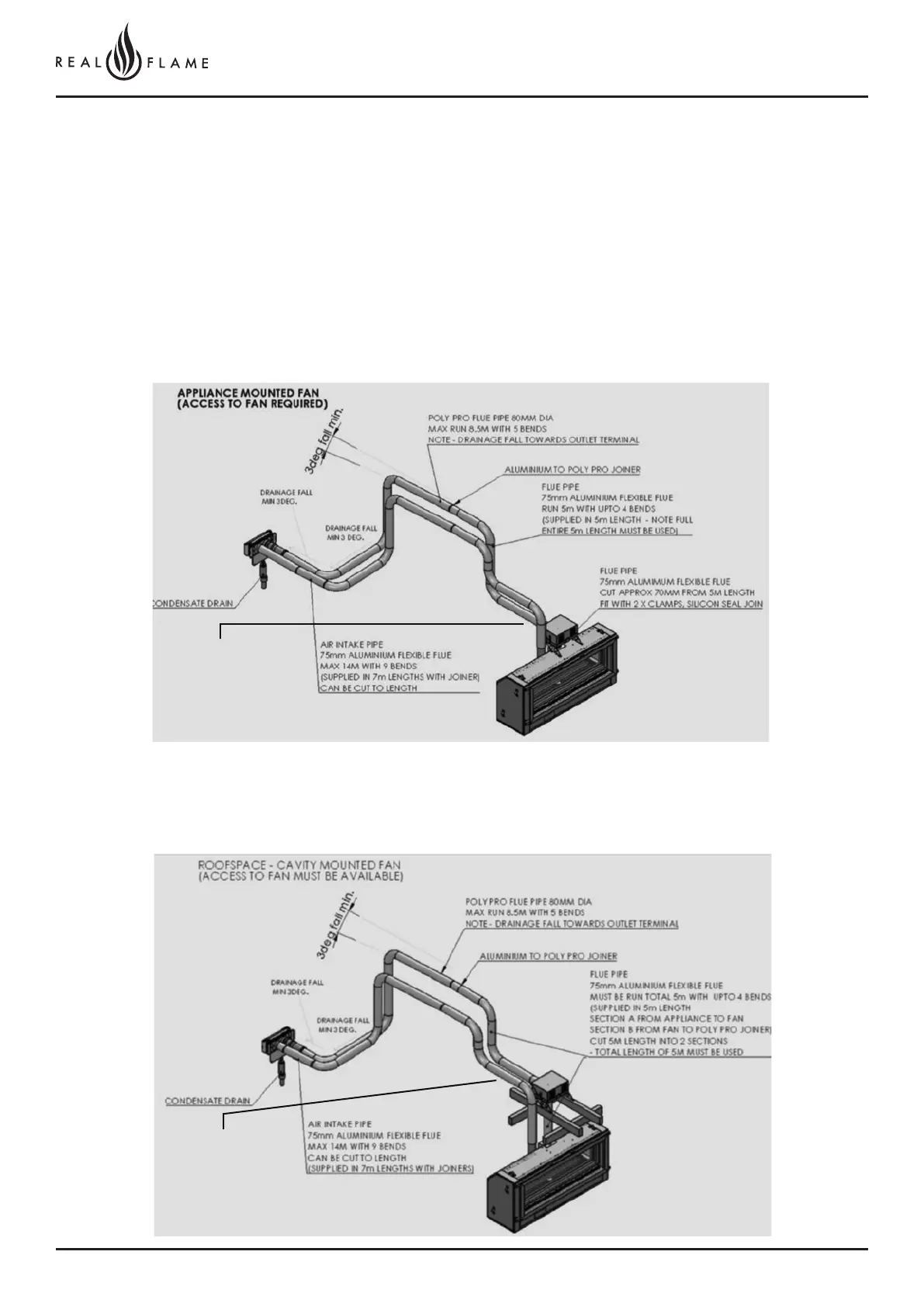

SETUP WITH APPLIANCE MOUNTED FAN OR INLINE MOUNTED
FAN AND WALL TERMINAL
Maximum 13.5m flue length
Instructions are in 3 sections
1. Intake pipe connection
2. Flue exhaust connections
3. Wall terminal setup
NOTE – A MINIMUM OF 3 DEG. DRAINAGE FALL MUST BE INSTALLED IN THE POLY PRO
FLUE. DRAINAGE DIRECTION IS TOWARDS THE WALL TERMINAL AT THE END OF THE FLUE.
First 3m of exhaust flue must
be insulated with 25mm thick
glasswool foil faced insulator
(supplied by Glen Dimplex)
First 3m of exhaust flue must
be insulated with 25mm thick
glasswool foil faced insulator
(supplied by Glen Dimplex)
To Next Page
