Element 900 - 5 m-9 m Flue: Internal Fan and Wall Termination

58
Page

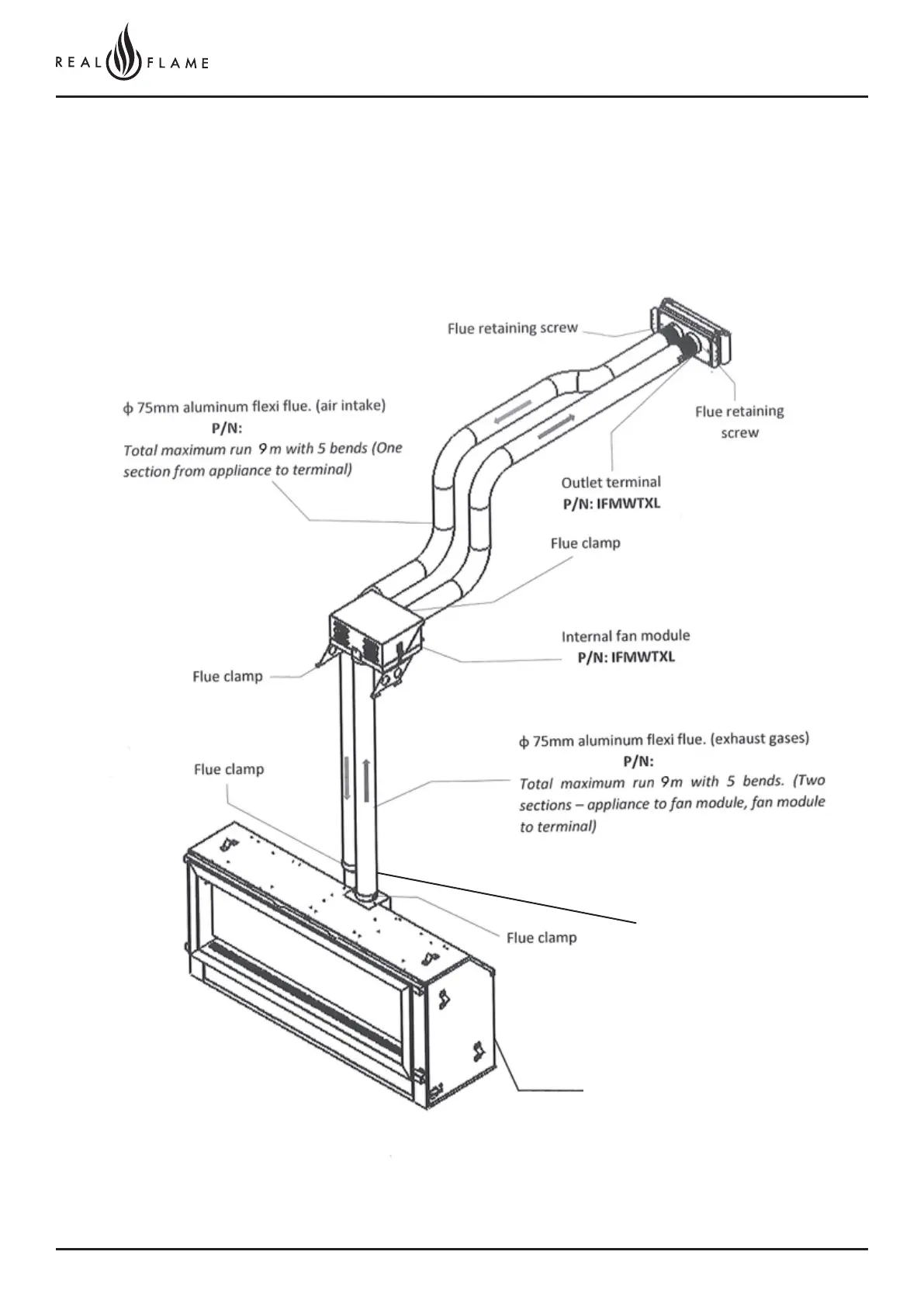

5M-9M FLUE
INTERNAL FAN AND WALL TERMINATION INSTALLATION
First 3m of exhaust flue must be
insulated with 25mm thick glasswool
foil faced insulator (supplied by Glen
Dimplex)
(where flue length exceeds 3m of
length)
ELEMENT 900
10MFAFX2
10MFAFX2
