30
Page

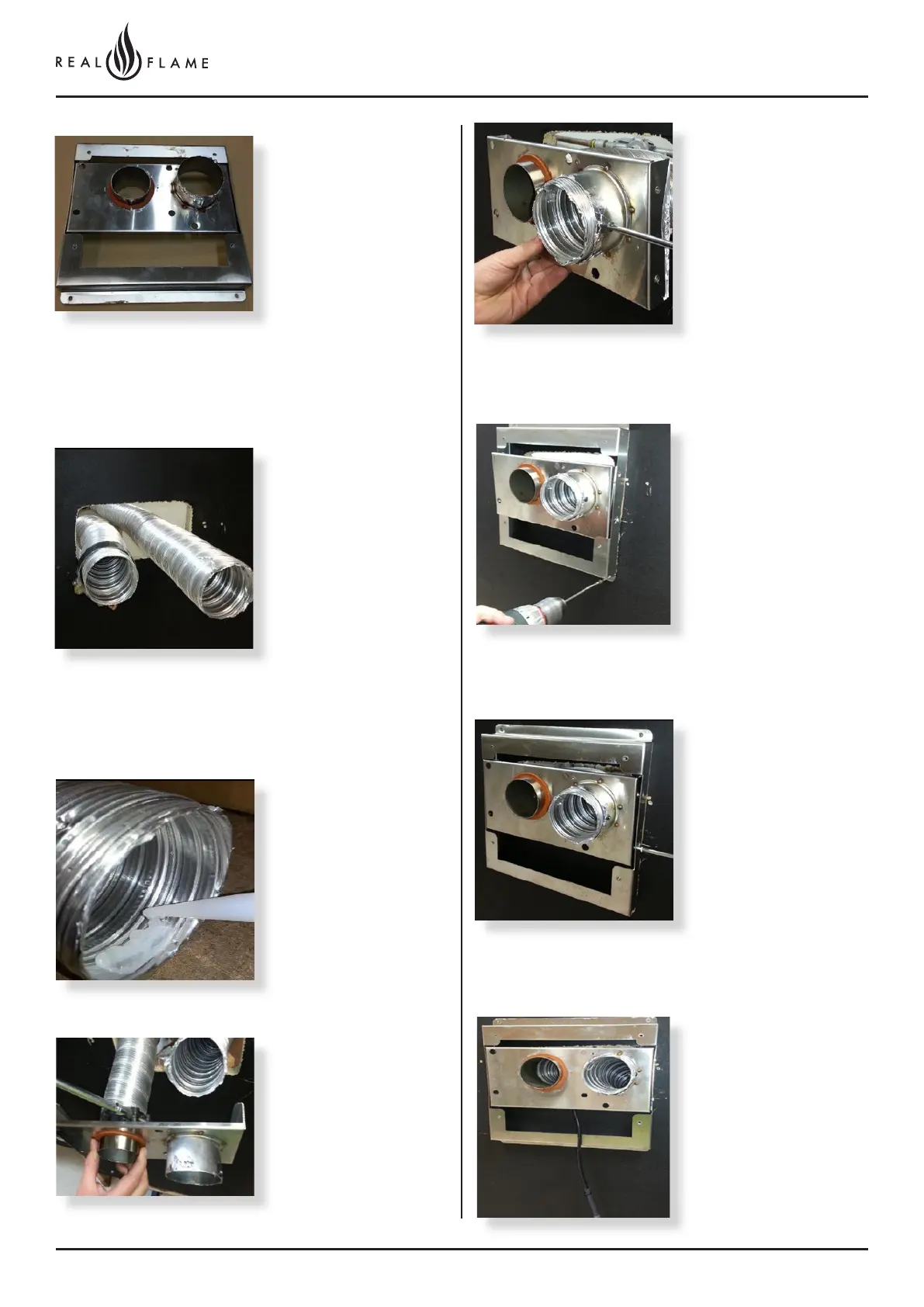

Locate wall mounting
bracket into position and
affix to wall.
Feed power cable through
bottom area of bracket.
Feed air intake flue pipe
through location spigot
and fit retaining screw.
Push connection plate into
approximate
position.
Slide flue onto connection
spigot fully. Tighten clamp
fully.
Wipe excess silicon,
visually check connection
to ensure connection is
fully sealed.
Remove wall mount plate
from flue connection plate.
Apply an 8mm silicon
bead fully around the
inside of the flue end
(heater connection end)
Fit flue clamp over flue
(loosely).
Cut flue exhaust tube
(hot tube) to length
(Approximately flush with
wall exit). Connection
plate will sit against wall.
Cut Air intake flue.
Ensure ends are burr free
and round, test fit flue will
slide over connection.
Pull flue through approx.
100mm (will be pushed
back once terminal is
fitted).
Assemble spigot
connection plate assembly
to wall mounting bracket.
(4 screws)
