37
Page

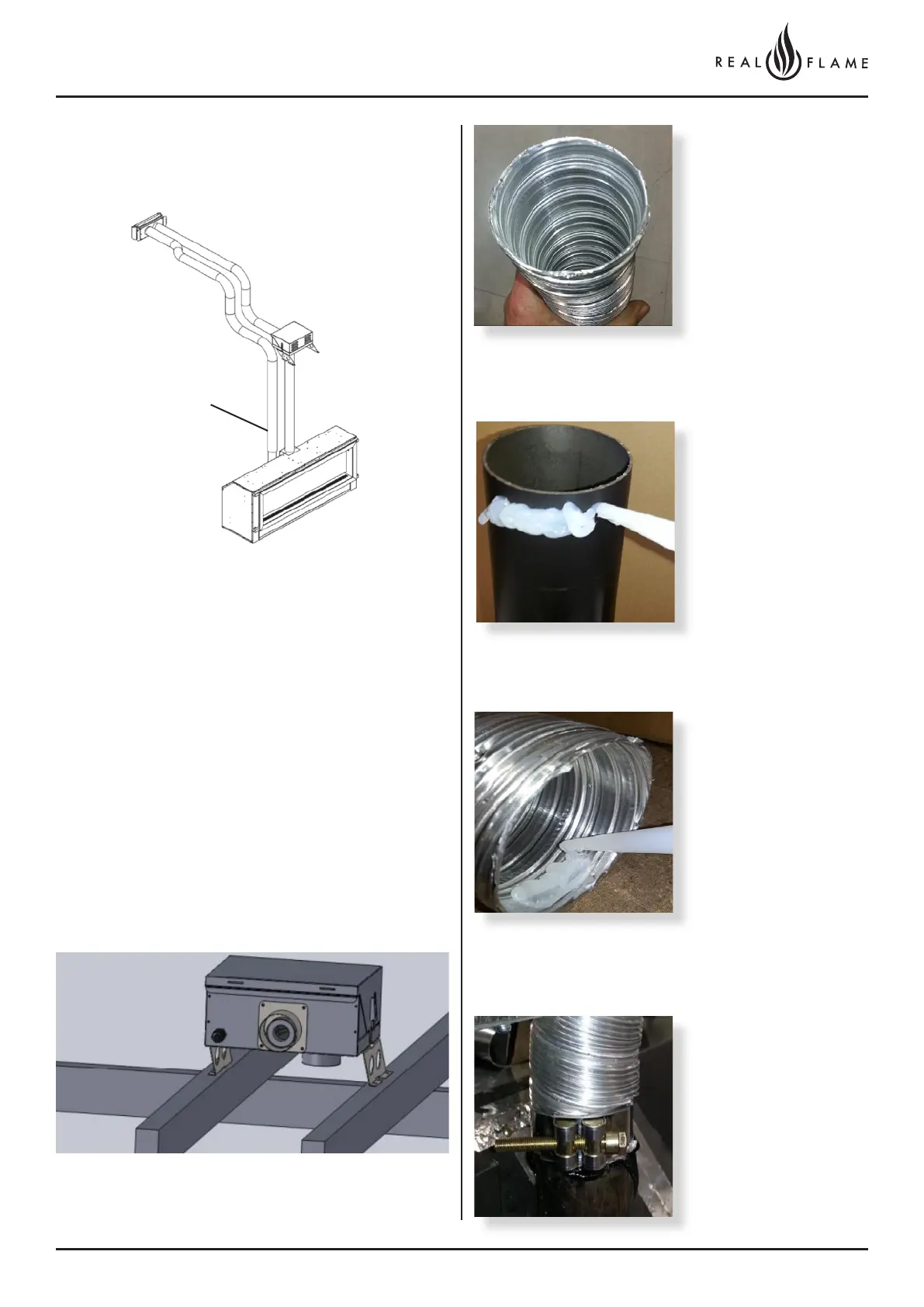

Setup with internal fan module with wall
termination – mid flue mounted
Maximum 5m flue length
Wall termination
1. Wall terminal must be installed with clearances as
specified by AS5601.1-2013 Clause 6.9.3
2. Run exhaust flue and air intake flue as required –
Maximum total run 5m per flue. Flues can be run next
to each other. Maintain clearances to combustibles.
3. Mount fan controller in the required location. (Access
to the fan module is required for servicing, if the fan
module is located inside a boxed frame, allow a 450
x 450 access panel).
4. Connection to fan module to appliance run flue from
appliance to bottom entry on fan module. Support
flue with brackets as required.
Cut tube to length where
required.
Ensure ends are burr free
and round, test fit flue will
slide over connection.
Apply an 8mm silicon
bead fully around the
inside of the flue end
(heater connection end)
Fit flue clamp over flue
(loosely).
Apply an 8mm thick silicon
bead fully around heater
connection approx. 10mm
from the top.
Slide flue onto connection
spigot fully.
Tighten clamp fully.
Wipe excess silicon,
visually check connection
to ensure connection is
fully sealed
First 3m of exhaust flue
must be insulated with
25mm thick glasswool foil
faced insulator (supplied
by Glen Dimplex)
(where flue length exceeds
3m of length)
To Next Page
