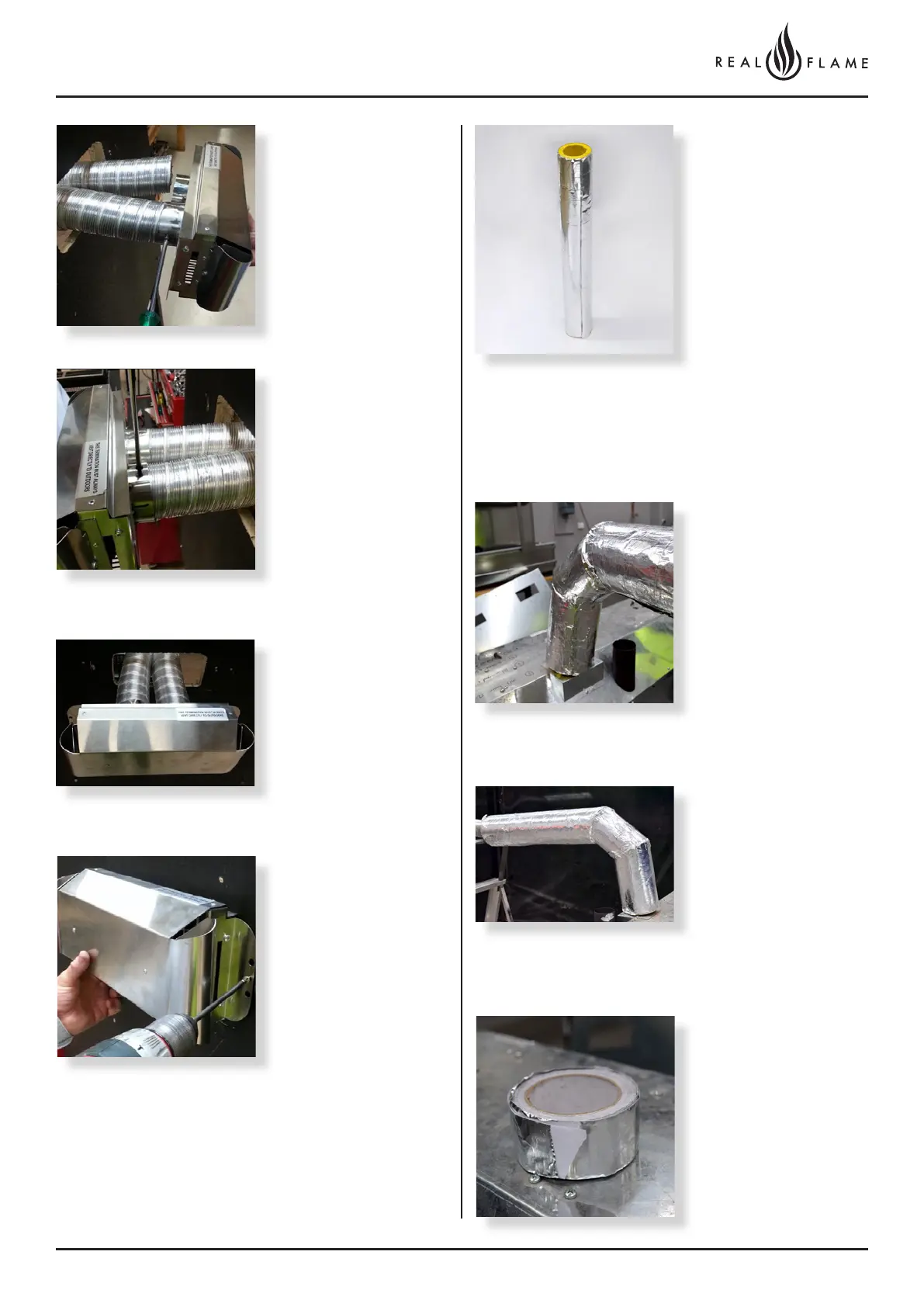

Feed hot exhaust flue
into connection, ensure
inserted 50mm. Fit retaining
screw from below.
Feed air intake flue
into connection, ensure
inserted 50mm. Fit retaining
screw from below.
Push terminal into
approximate position and
affix onto wall.
Insulation must start as close to the gas space heater as
possible
(Only exhaust flue is to be insulated)
Insulation to be fully closed
and sealed along length.
Fit flue exhaust insulation
Insulated with 25mm foil
faces glasswool pipe
insulation, as supplied by
Glen Dimplex Australia.
Bends were practical
should be insulated, by
cutting the insulation into
segments and taping
together.
Joins can be taped
together using aluminum
foil self adhesive tape.
