Setup with internal fan module with rooftop
termination – mid flue mounted
Maximum 9m flue length
Note- fan module can be appliance mounted or mid
mounted when finishing with the rooftop termination.
Rooftop termination
1. Rooftop termination must be installed with clearances
as specified by AS5601.1-2013.
2. Run exhaust flue and air intake flue as required –
Maximum total run 9m per flue. Flues can be run next
to each other. Maintain clearances to combustibles.
3. Mount fan controller in the required location. (Access
to the fan module is required for servicing, if the fan
module is located inside a boxed frame, allow a 450
x 450 access panel).
4. Insulation Instructions-
Exhaust flue must be insulated using 25mm glass wool
pipe insulation as supplied by Glen Dimplex Australia.
Insulation must be fitted to exhaust (hot side only).
Insulation must start as close to appliance as possible
(within 300mm).
Insulation must finish as close to discharge as possible
(within 300mm).
Insulation must run around bends.
Insulation to be taped to ensure no gaps.
Insulation may be fitted while running flue or at final
stage of installation.
(shown at flue stage in Instructions)

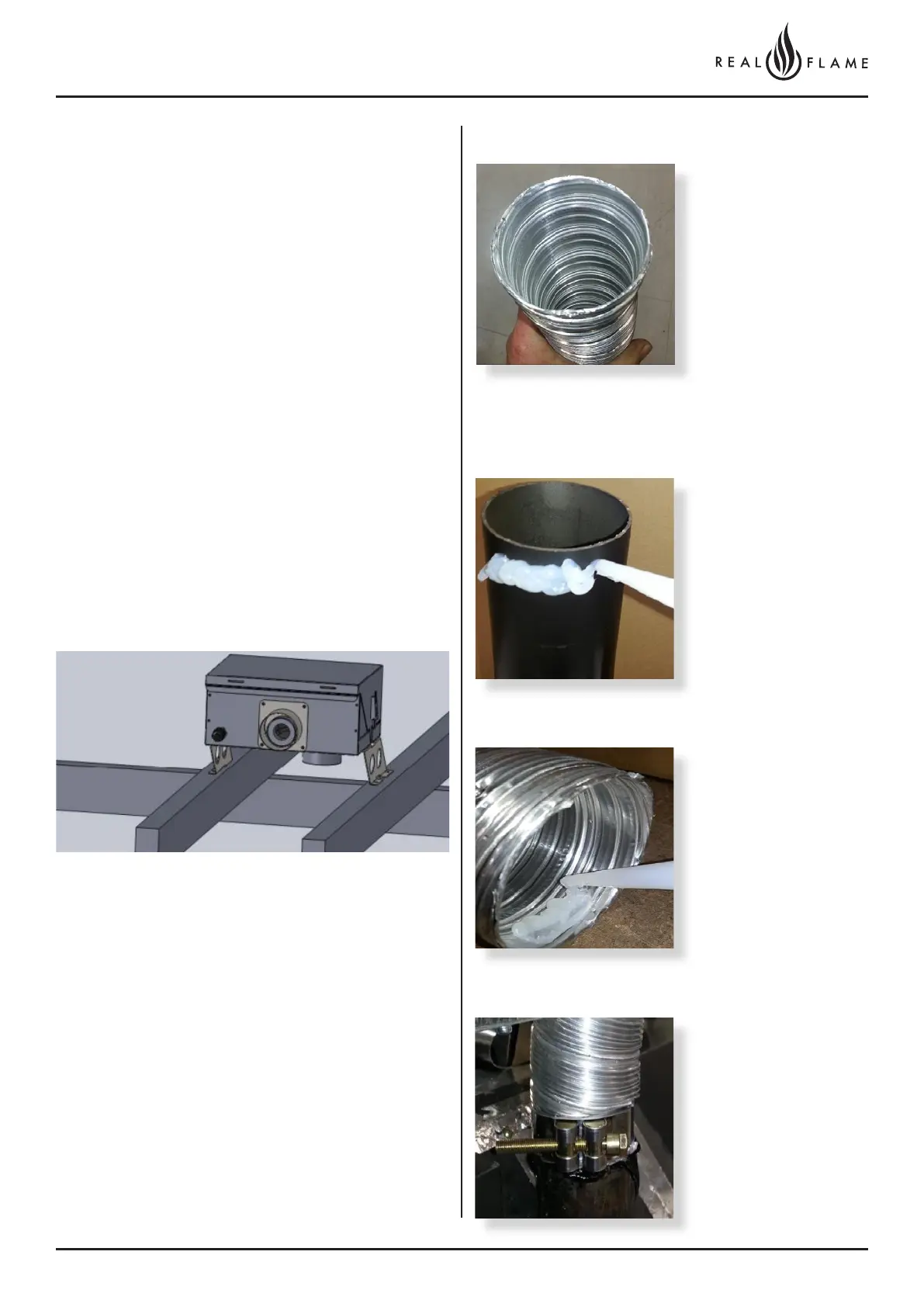

Run flue from appliance
to bottom entry on fan
module.
Support flue with brackets
as required
Cut flue to length to suit
connection.
Ensure ends are burr free
and round, test fit flue will
fit over connection.
Apply an 8mm silicon
bead fully around the
inside of the flue end
(heater connection end)
Fit flue clamp over flue
(loosely).
Apply an 8mm thick silicon
bead fully around heater
connection approx. 10mm
from the top.
Slide flue onto connection
spigot fully.
Tighten clamp fully.
Wipe excess silicon,
visually check connection
to ensure connection is
fully sealed
