Element RW60 - Cash Drawer Interface

RW60 User Manual
18

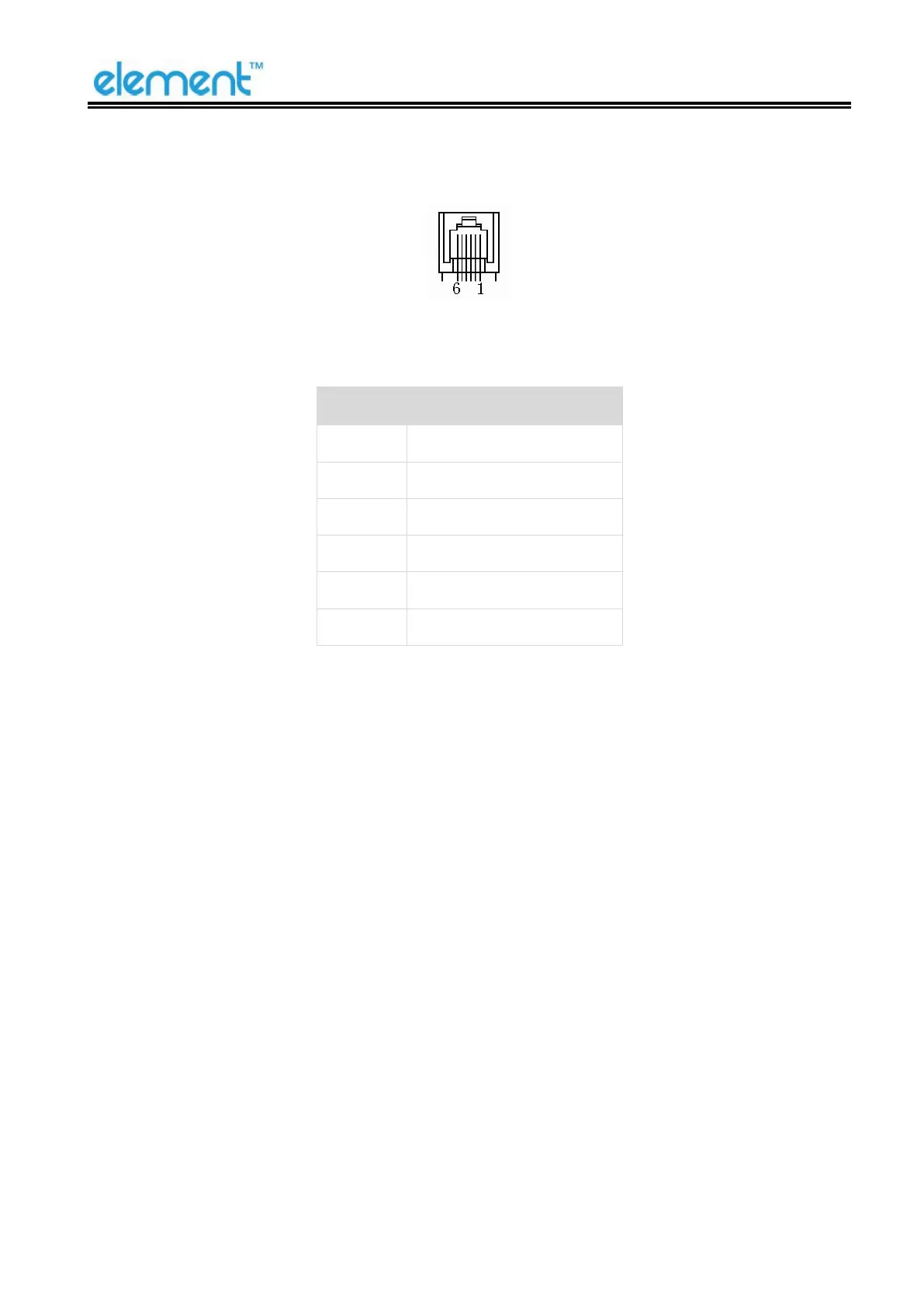

5.2 Cash Drawer Interface
Figure 5-2
PIN
SIGNAL NAME
1
FG
2
Drawer 1
3
DRSW
4
VDR
5
Drawer 2
6
GND
Electrical characteristics
 Driving voltage: DC 24 V
 Driving current: Maximum 0.8 A (In 510 ms)
 Drawer check signal: “L” = 0～0.5 V “H” = 3～5 V
