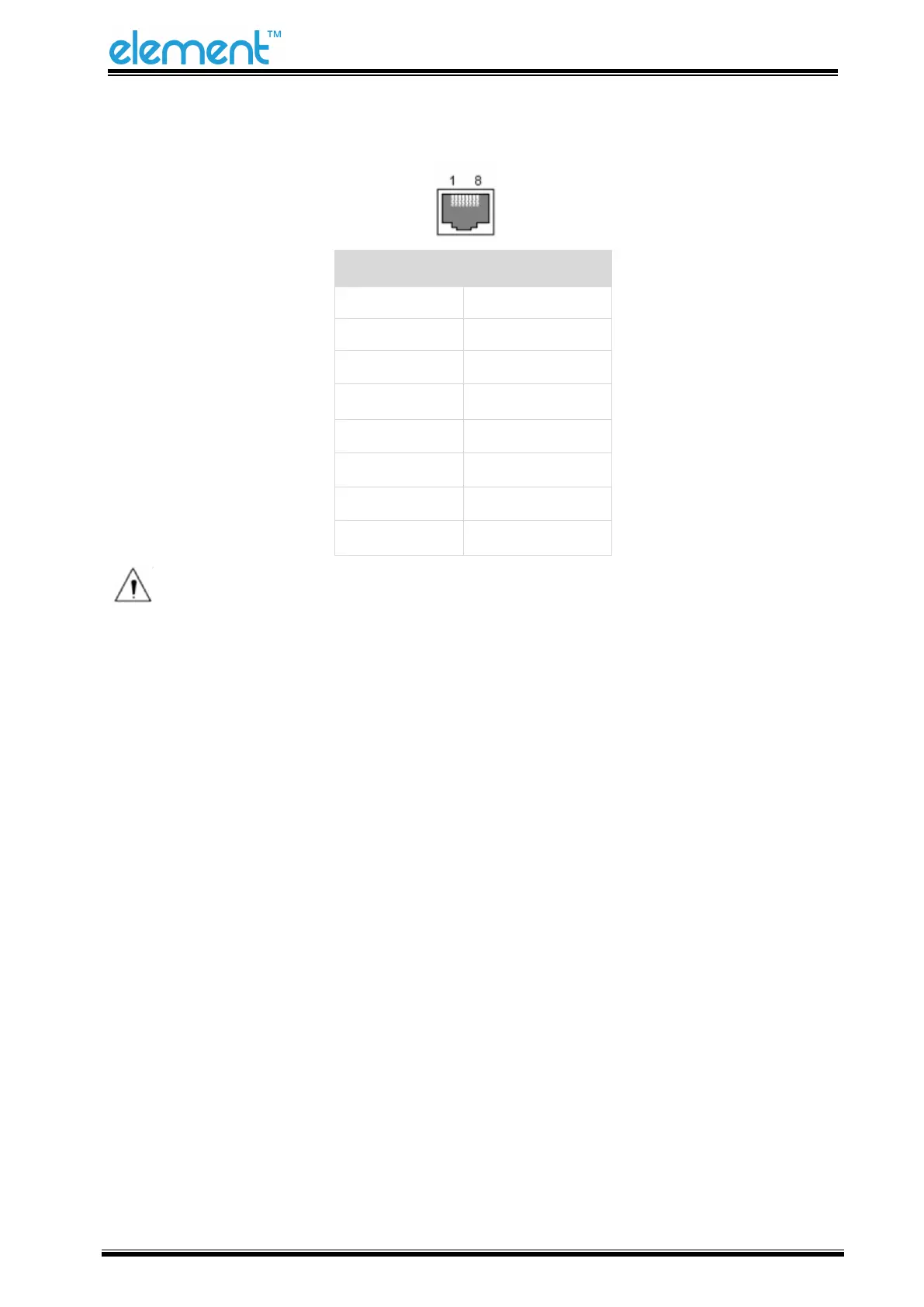

5.5 Ethernet Interface
Note:
The printer is equipped with an Ethernet interface, and use the network connection router,
switch and other network communication equipment which meet RJ45 interface standard.
When connecting directly with PC, it is suggested that the cross-network line in accordance
with RJ45 interface standard should be adopted.
PIN NO.
SIGNAL NAME
1
TX+
2
TX-
3
RX+
4
n/c
5
n/c
6
RX-
7
n/c
8
n/c
