ENCLOSING the FIREPLACE
Element4 Gas Fireplaces EuropeanHome.com

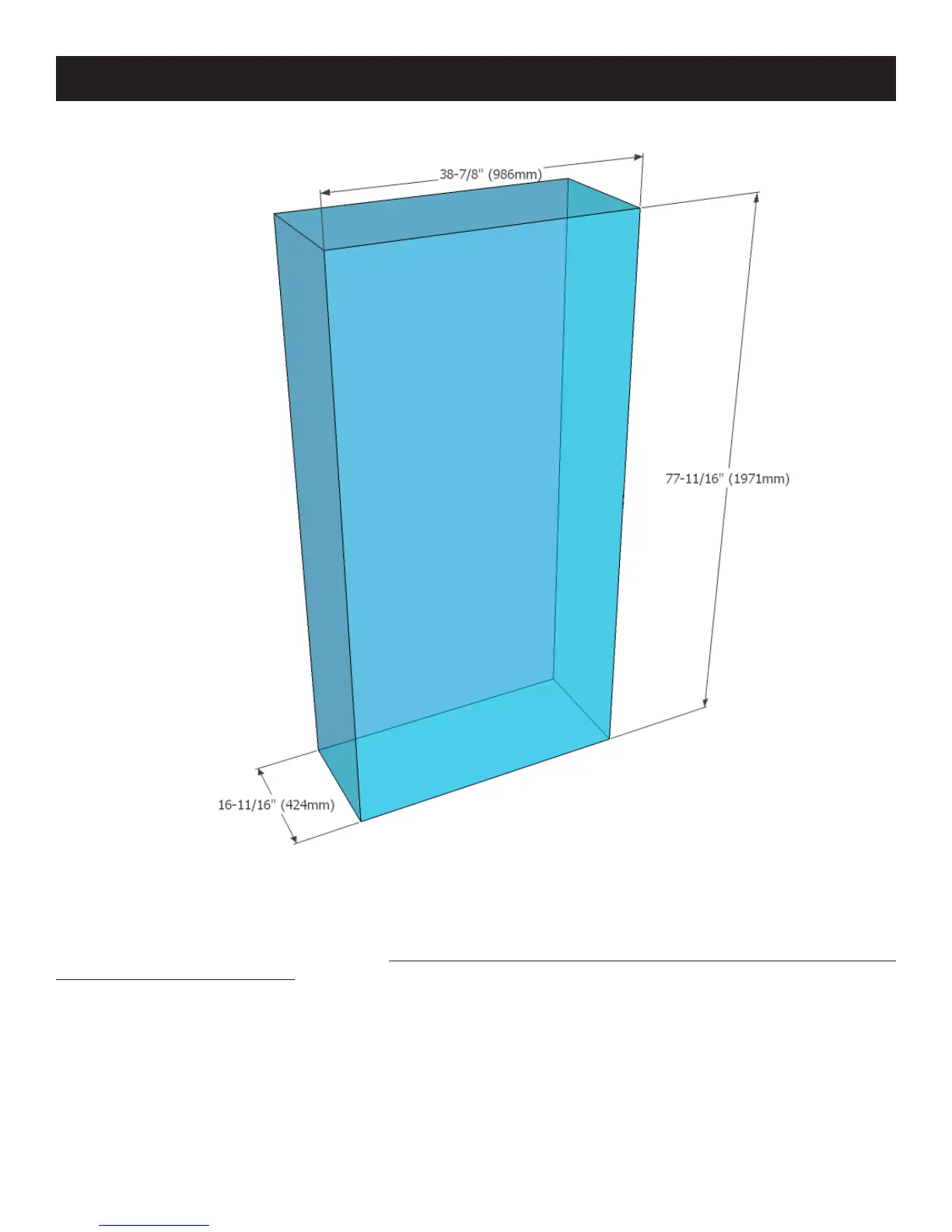

When enclosing the Sky replace there is a minimum clear area which must be maintained. Nothing except the Sky may be within
this area. When enclosed, the Sky is centered - left to right and front to back - within this minimum area, above. This minimum area
MUST BE DEFINED BY NON-COMBUSTIBLE MATERIAL. The inside of the enclosing walls (including any necessary framing) may be no
less than the distances shown above.
Note! The nished wall must be at least 1⁄”/28 mm thick or the replace trim will extend beyond the nished wall.
We recommend that the replace be set into its nal location before building the enclosure.
SKY
MINIMUM AREA REQUIRED FOR SKY
FINISHED WALL INNER LIMIT
