Elenos ET5000

123
.
.
.
.
.
.
.
FRONT ID : 00
TC/TS ID : 00
FRONT ID : 18 (10+8)
TC/TS ID : 11
FRONT ID : 19 (10+9)
TC/TS ID : 12
FRONT ID : 11 (10+1)
TC/TS ID : 01
FRONT ID : 12 (10+2)
TC/TS ID : 02
FRONT ID : 10+n
TC/TS ID : 0n
Control unit
Exciter 1
Exciter 2
Amplifier 1
Amplifier 2
Amplifier n
Maintenance
4.2 Settings
4.2.1 System addresses

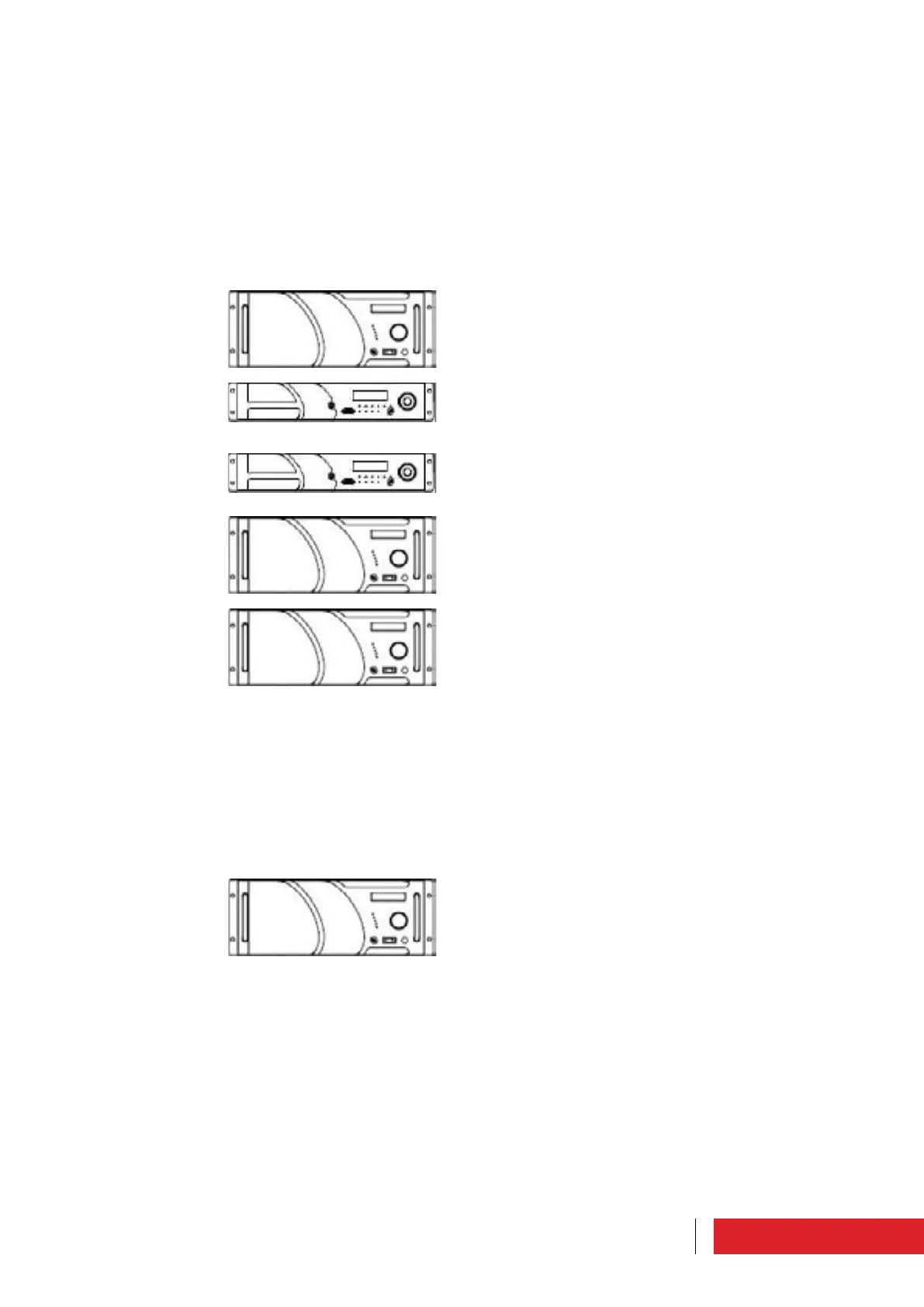

In the case of single combined transmitter (not in a N+1 system), addressing rules are
those in the diagram below.
For operation in an N +1 system, however, refer to Technical Bulletin N°142.
