Use instructions
3.4 Externally connectable optional equipment
The equipment can be connected externally to the following units:
• PC
• Telemetry
• Exchange and/or Audio matrix
• Elenos E.BOX. module
3.4.1 Connection to PC

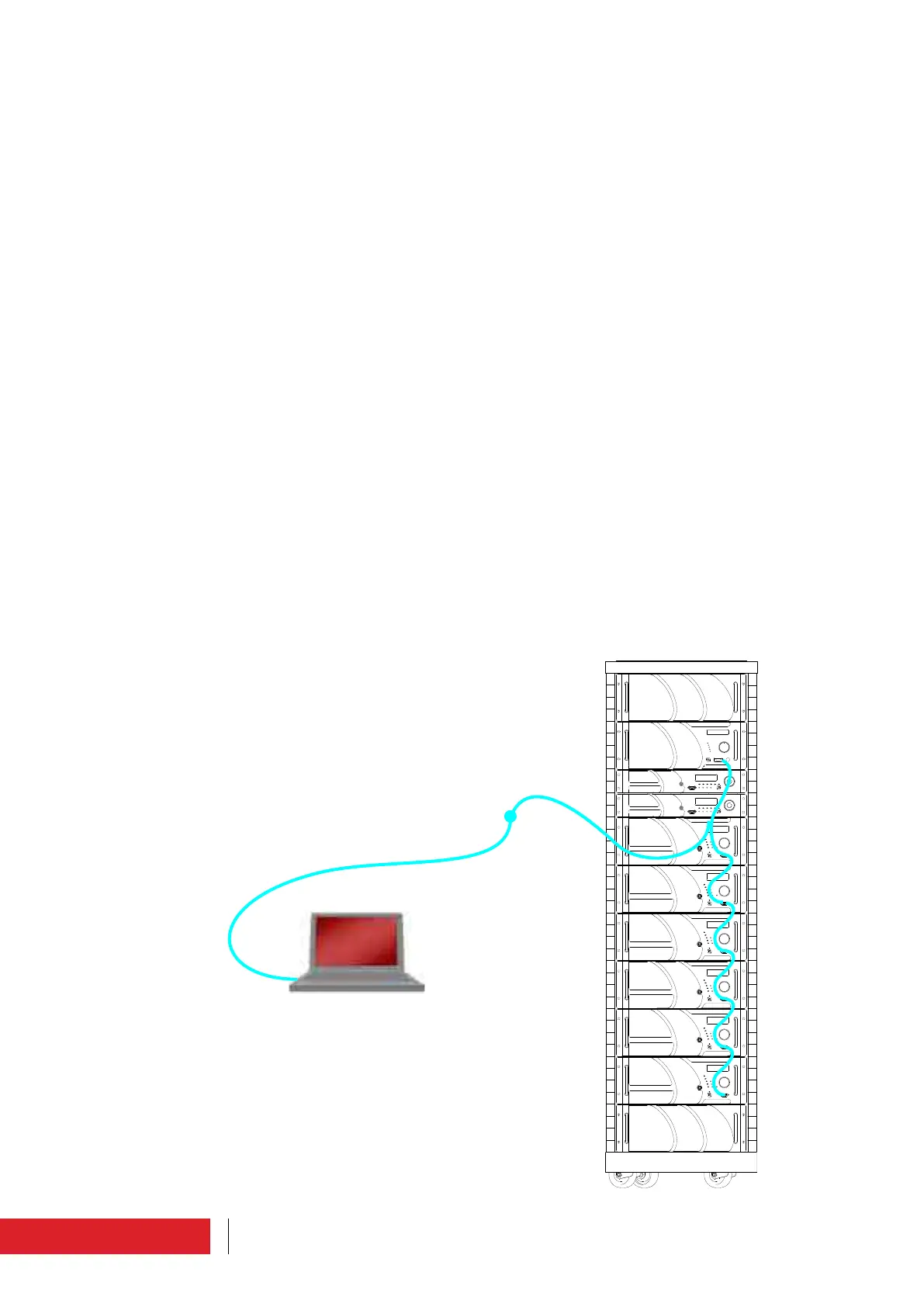

This connection is useful to analyse the equipment operating parameters in detail, for
example during the performance assessment stage or during repairs.
To PC connection an interface must be inserted into the “Interface” connector, DB9,
on the front panel of amplifiers and combiner; and add an other cable (ELENOS code
CAB0068-0) to insert to PC.
This may be supplied with the product.
The connection can also be made when the machine is operating.
The Windows Hyperterminal programme can be used to display, or another equivalent
available programme.
For the detailed procedure for using an ASCII terminal, please request technical bulletin
No. 127 from the manufacturer.
