72 Use instructions
3.1.2.10 System config 1

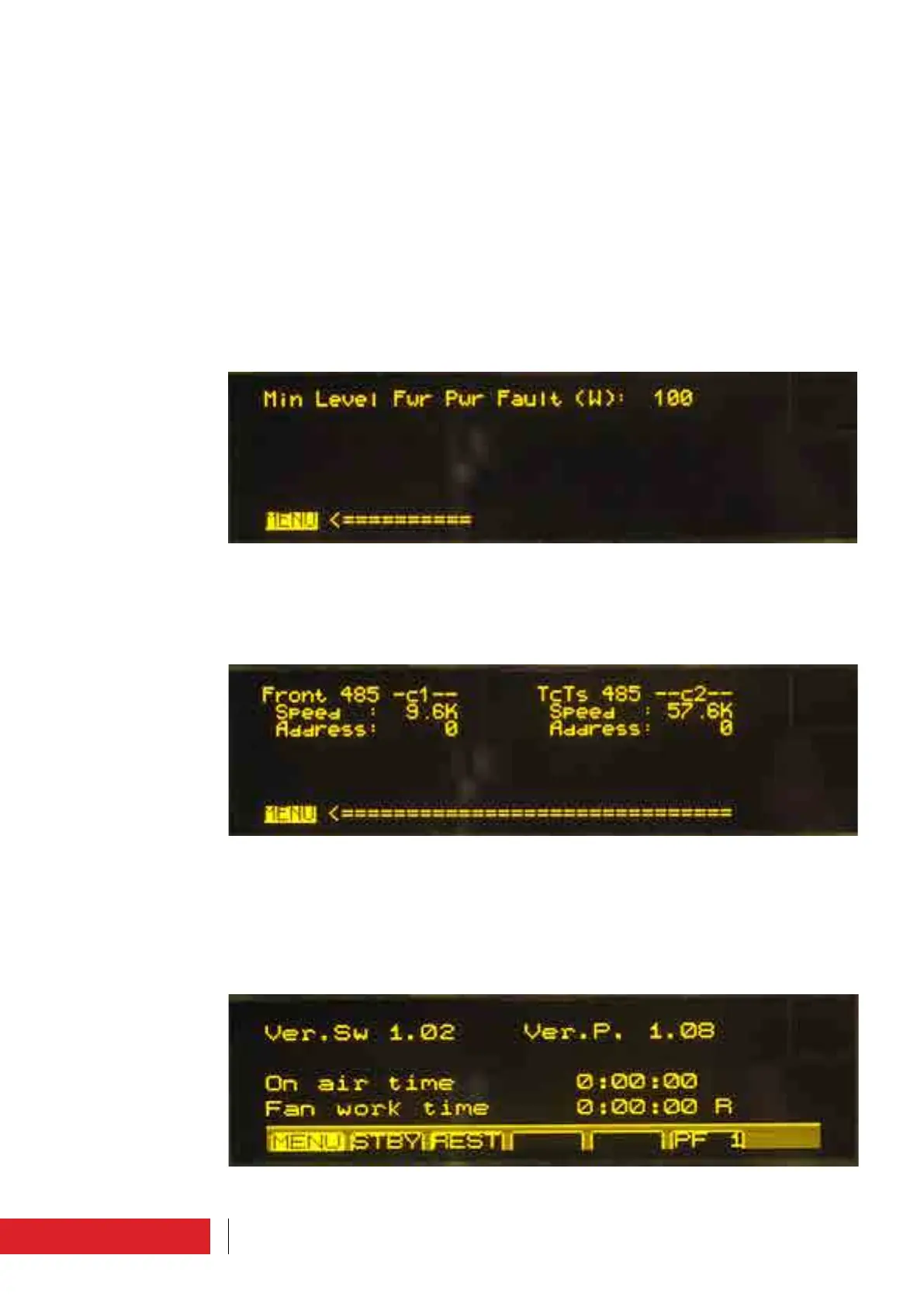

Setting and display screen.
The alarm signal, caused by wrong output power, snaps by default at -3dB of target
power and disappears when you reach the 2/3 of that.
The “Min Level Fwr Pwr Fault” additional parameter, set here, acts in an AND condition
with the standard algorithm: so, the alarm will snap when there is the first between the
two conditions “-3dB” and “Min Level Fwr Pwr Fault“, while will disappear when the
highest value between ”2/3 Ptarget“ and ”Min Level Fwr Pwr Fault+typical step related
to apparatus“ occurs.
For stand-alone devices meant to set Min Level Fwr Pwr Fault to a value greater than-
3dB, while using lower values may have meaning in N+1 systems.
By default Min Level Fwr Pwr Fault is set to the minimum value of power.
3.1.2.11 Communication port set
Setting and display screen.
The parameters which can be set by the user are the speed and the front and rear 485
door addresses.
3.1.2.12 System info
Setting and display screen.
The equipment software version, the protocol version, the equipment activity time and
the fan operating time are indicated.
It is possible to reset the latter by clicking “R”.
