9.4 Activating the device
After starting the operating voltage (e.g. insert the battery) the device starts automatically.
9.5 Description of mounting / Installation of the magnetic sensor
With the use of two screws type M3, the magnetic sensor can be mounted with the help of the fastening bores.
(see chapter 6.2.1).
The allowed distance from the sensor to the magnetic tape surface is noticed in the technical information
(see chapter 6.2.2).

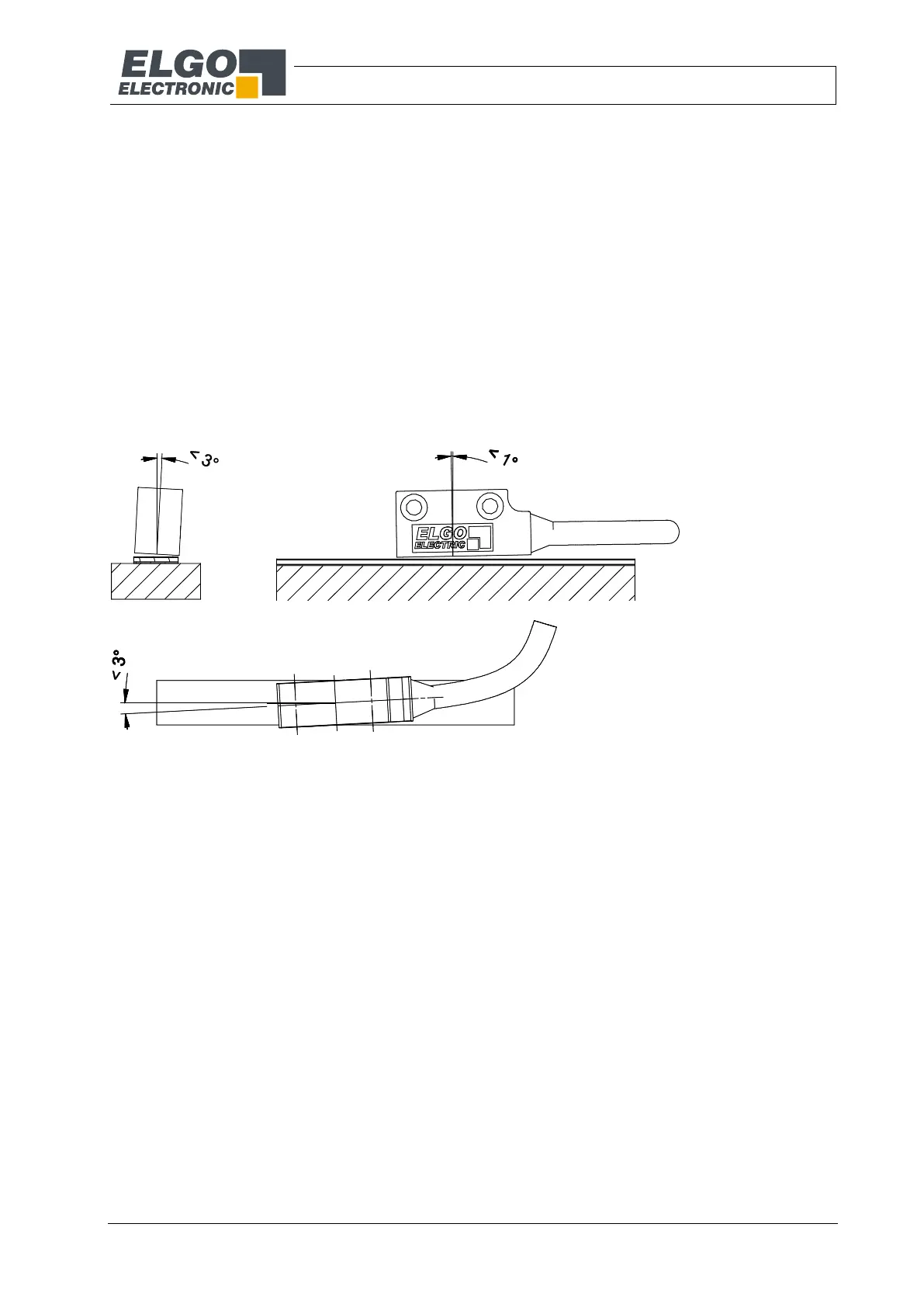

Furthermore, there are following maximum tolerances of angles, which have to be ensured over the complete
section of measurements:
The cable has to be placed so that there is no risk of damage (e.g. through pulling or crushes)
On demand, it makes sense to use a drag chain or a protective tubing to achieve a strain relief.
