Ellis 9400 - PARTS LIST: WORKTABLE AND BASE; WORKTABLE AND BASE ASSEMBLY PARTS

EllisSaw.com
16
WORKTABLE AND BASE ASSEMBLY

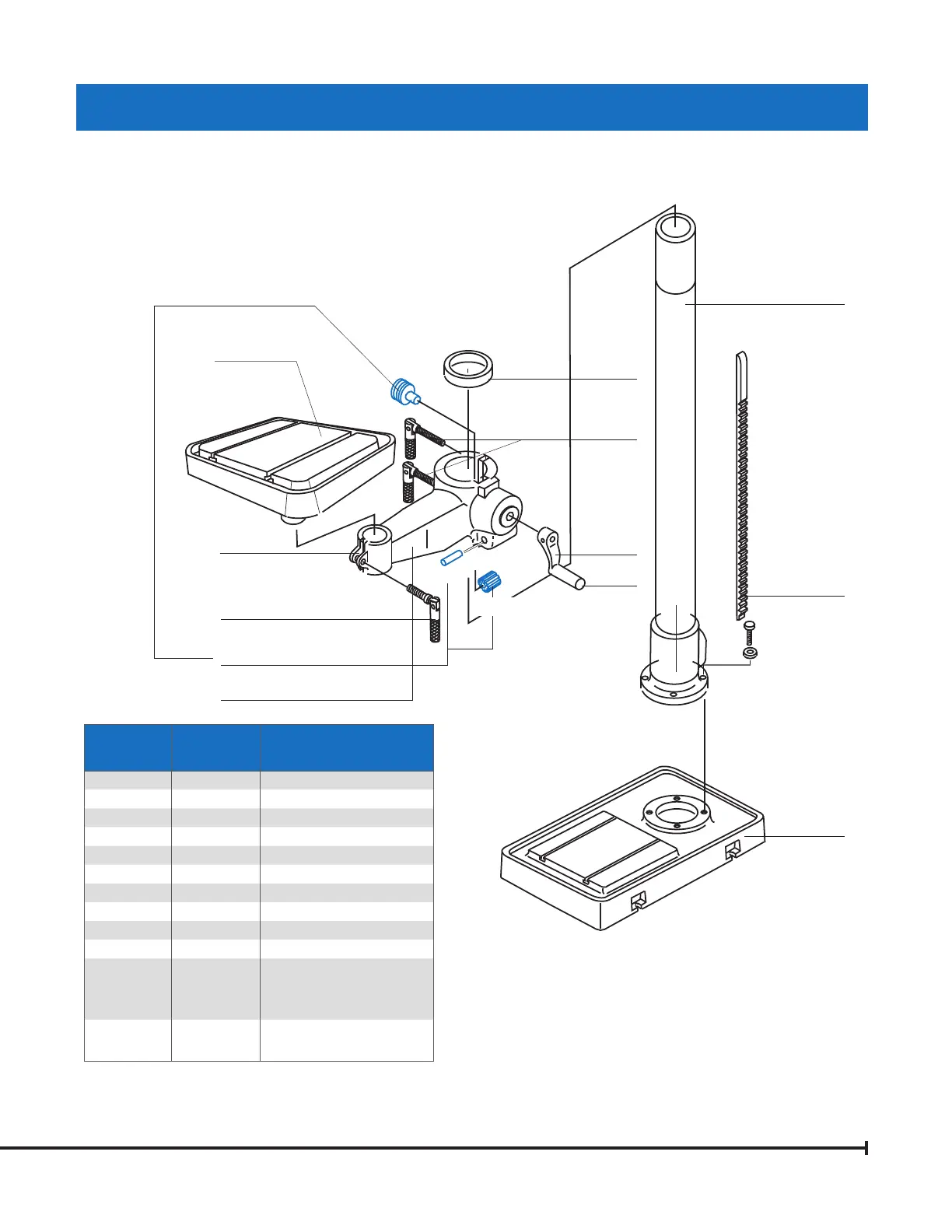

Column Assembly Parts Explosion
Number
Part
Number Name
1 8401 Column Base
2 8403 Rack Gear
3 8404 Column
4 8486 Revolving Handle
5 8406 Elevating Handle
6 8407 Column Clamp Screw
7 8077 Column Ring
8 8410 Worktable
9 8442 Table Bracket
10 8443 Table Clamp Screw
11 8490
Worm Drive ASSY
(Includes Axis Pin,
Worm, Gear)
12 8492
Table Bracket ASSY
(Includes 8442 & 8490)
1
2
3
5
6
7
8
9
10
11
4
PARTS LIST (CONT.)
(worm)
(pin)
(gear)
12
Note: When ordering parts, please provide the
serial number located on the Drill Press head.
