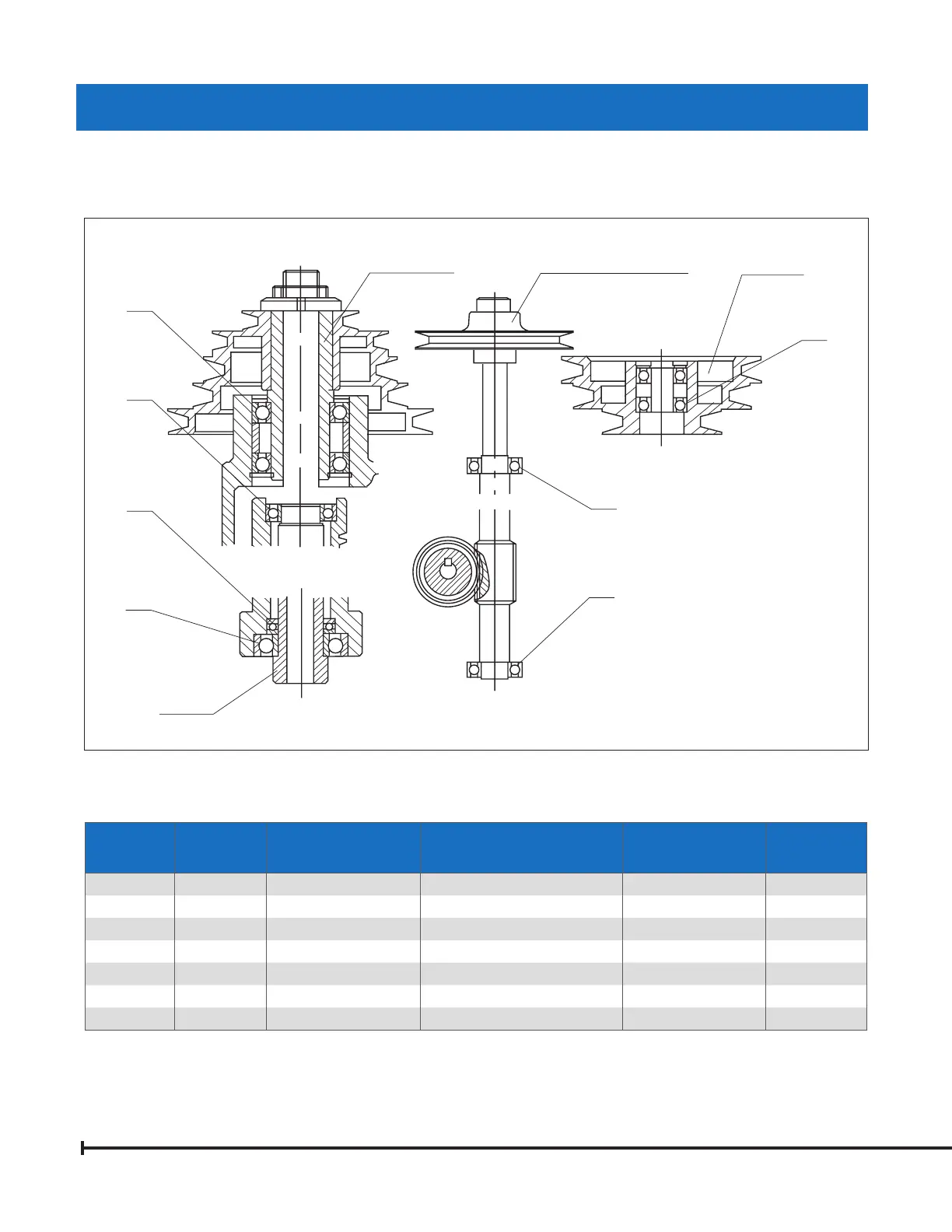

Ellis 9400 - PARTS LIST: BEARING LOCATIONS; BEARING LOCATION DETAILS

17
1.800.383.5547
PARTS LIST (CONT.)
The chart below identies the bearings in the various locations. The Ellis Part Number is required for replacement orders.
Number
Part
Number Bearing Type Location Size Quantity
1 4490 Deep Groove Spline-Taper Sleeve 45 x 75 x 16 2
2 4491 Deep Groove Quill 30 x 55 x 13 1
3 4492 Ball Thrust Quill 35 x 52 x 12 1
4 4493 Deep Groove Quill 35 x 72 x 17 1
5 8495 Deep Groove Middle Sheave ASSY 17 x 40 x 12 2
6 4495 Deep Groove Single Thread Worm 20 x 42 x 12 1
7 4495 Deep Groove Single Thread Worm 20 x 42 x 12 1
1
2
7
6
5
4
3
8434 Spindle Pulley
8437 Feed Pulley with
Overload Clutch ASSY
8495 Middle
Sheave ASSY
Spindle
BEARING LOCATION
Note: When ordering parts, please provide the serial number located on the Drill Press head.
