Elmo ET8/480 - Transponder Connection

ET8/480, ET8/480S and ET8/480PT - TECHNICAL MANUAL - 13
8.5 Connection of the transponder

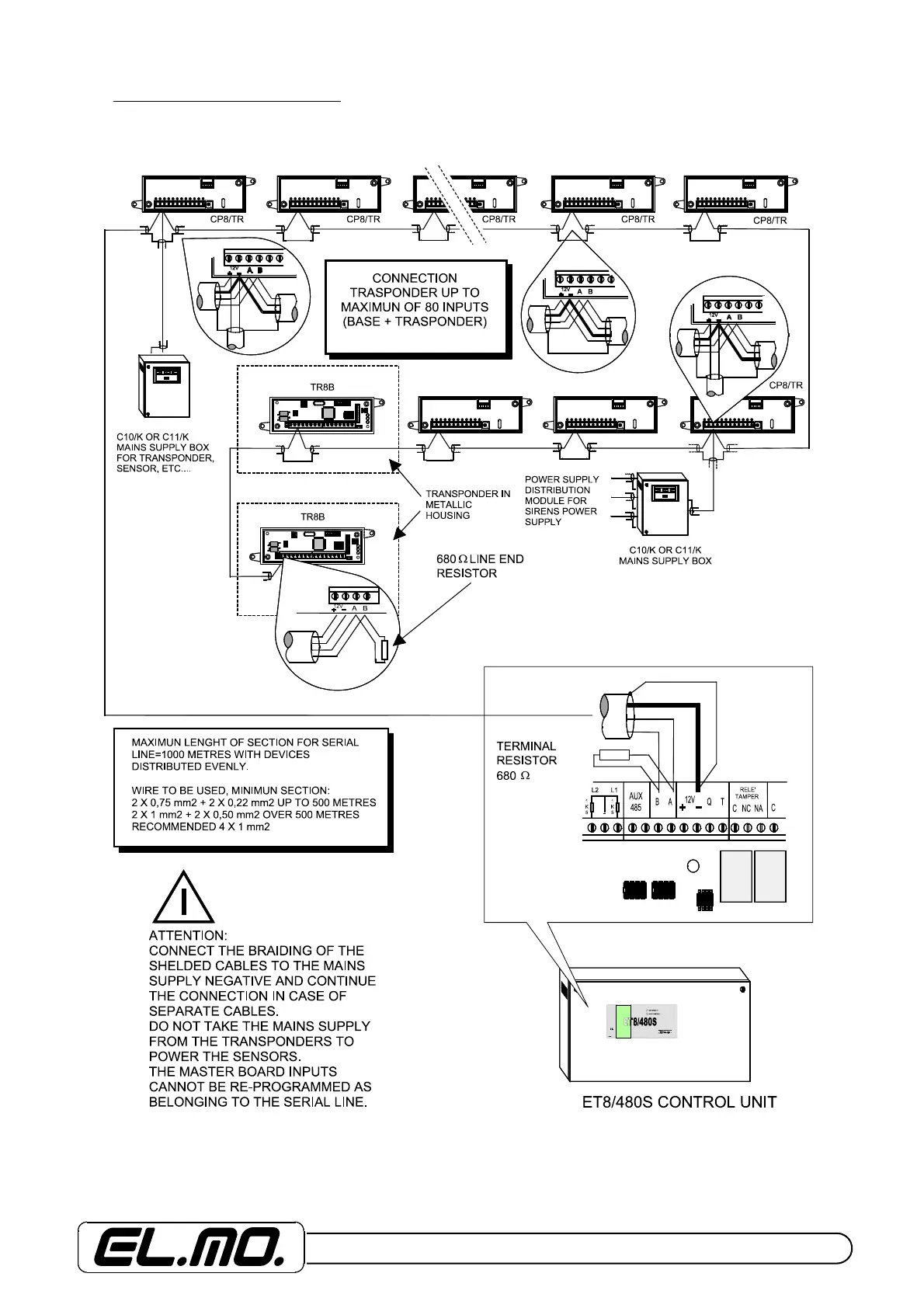

Main diagram for transponder connection.
NOTE: The use of CP8/TRS mod. transponders is not certificated by IMQ-SISTEMI DI SICUREZZA.
