18 - ET8/480, ET8/480S and ET8/480PT - TECHNICAL MANUAL
8.6 Connection of optical-acoustic warning devices

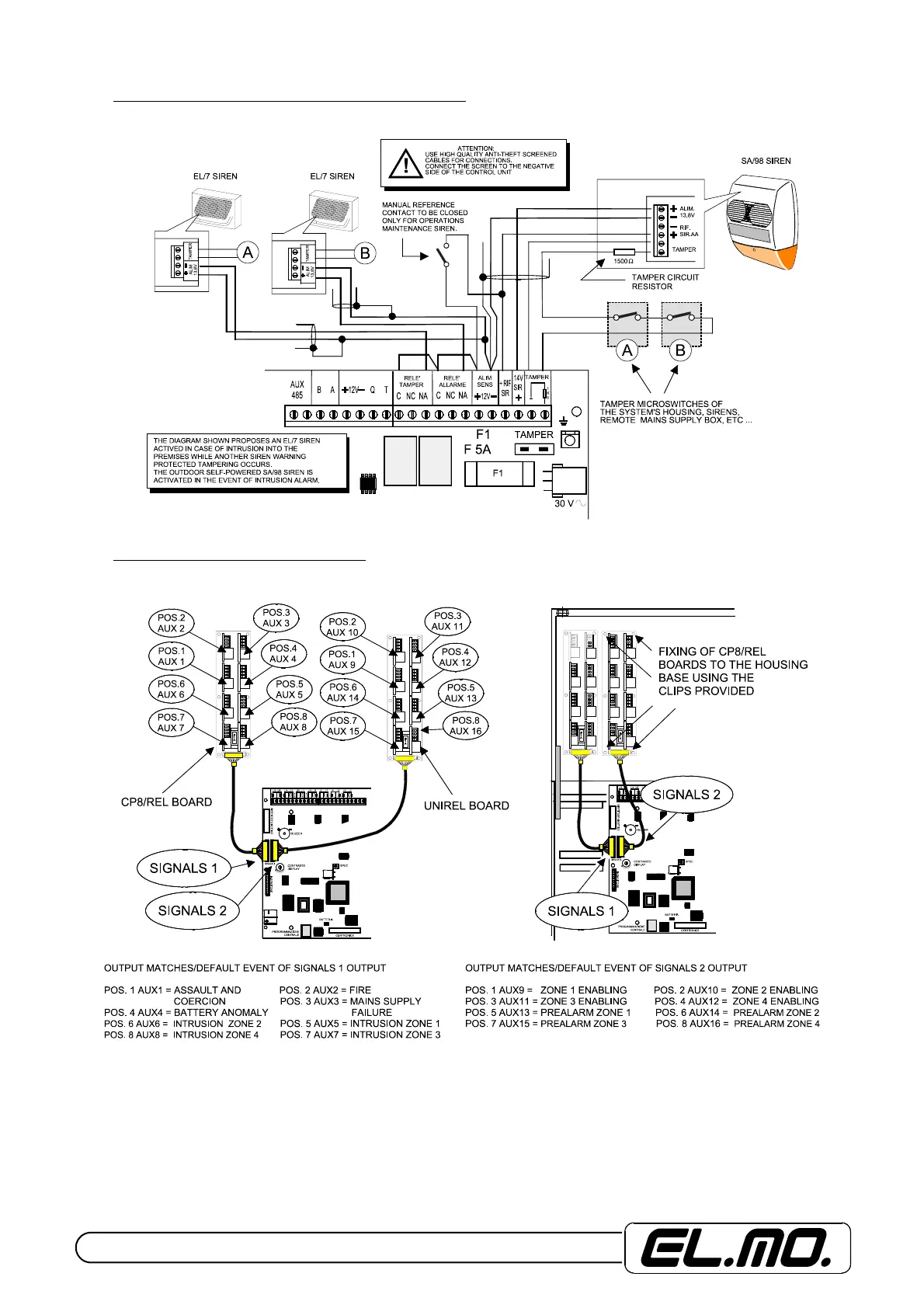

Connection of self-powered sirens to the control unit’s terminal board.
8.7 The auxiliary outputs connections
View of the mother board auxiliary outputs.
The auxiliary outputs are programmable with MFT functions, the first sixteen are located on the master board of the control
unit, the rest can be used by means of connection to the transponders installed in serial line. The MFT-type outputs corre-
sponding to the transponders installed in serial but not equipped with electronic output, will not be available, for example
CP8/TRS and TR9000S.
For MFT outputs programming and DEFAULT configurations, consult the specific programming section in the
technical manual.
