ET8/480, ET8/480S and ET8/480PT - TECHNICAL MANUAL - 25

9. CONTROL DEVICE DISPLAYS

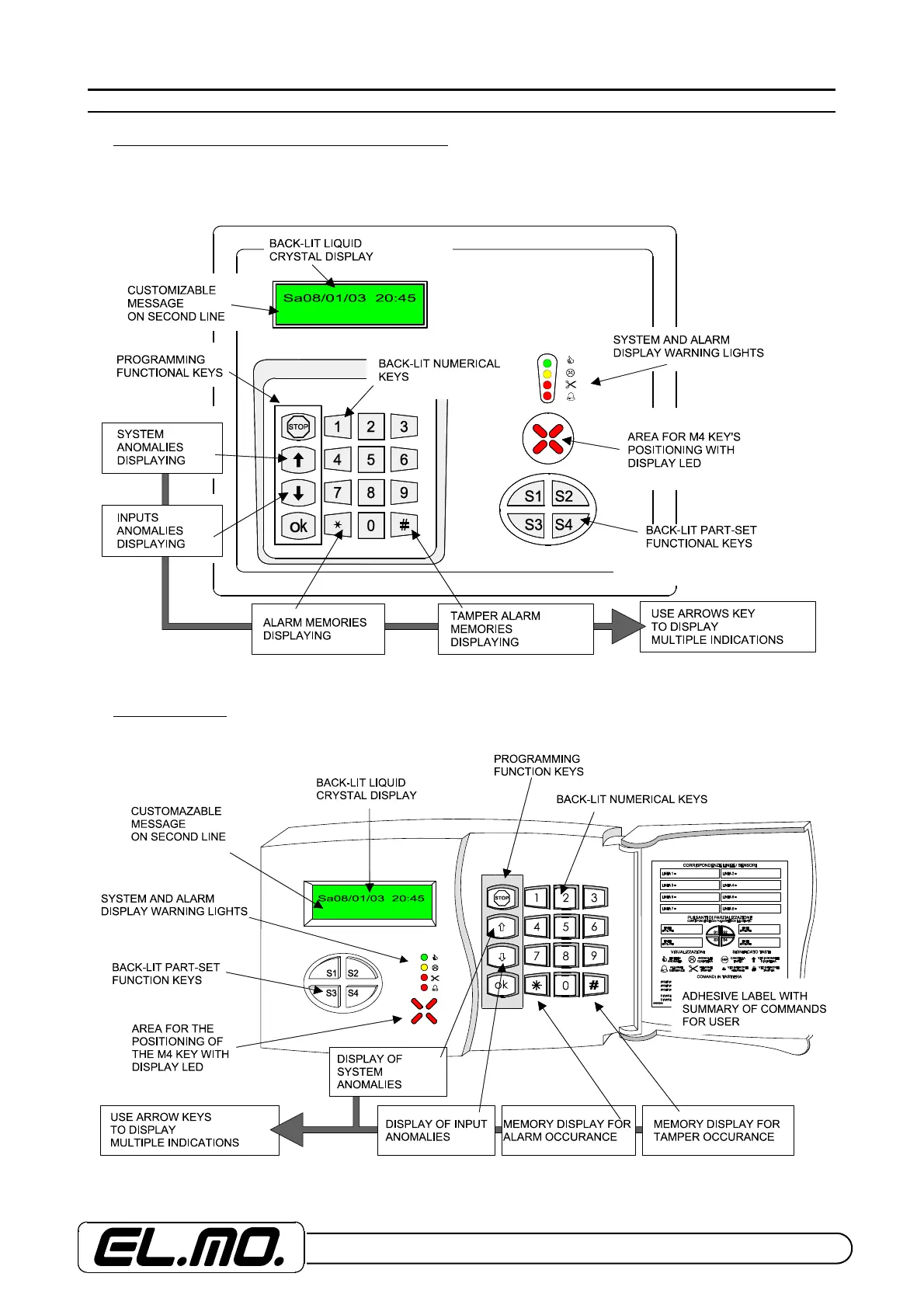

9.1 Front keyboard of ET8/480 model control unit

View of the keyboard built into the front of the ET8/48 keyboard. The ET8/48S only has remote keyboards and the

ET8/480PT control unit is equipped with NADIR keyboard mounted on internal door.

9.2 Nadir keyboard

View of NADIR control keyboard
