Adjusting Needle Drop Position
The clearance between the needle and side edges of the needle hole should be 0.2
mm or more when the maximum width zigzag stitch ( ) is selecte. And the neddle
should drop in the center of the needle hole when the straight stitch is selected.
<TO ADJUST>
1 Remove the face plate (see page 1).
2 Select the straight stitch ( ) and set the stitch width dial at 5.
3 Loosen the setscrew.
4 Move the needle bar supporter so that the needle drops in the center of the needle hole.
5 Tighten the setscrew.
6 Select the zigzag stitch ( ) and set the stitch width dial at 5.0 to check the clearance
between needle and side edges of the needle hole.
7 Attach the face plate.

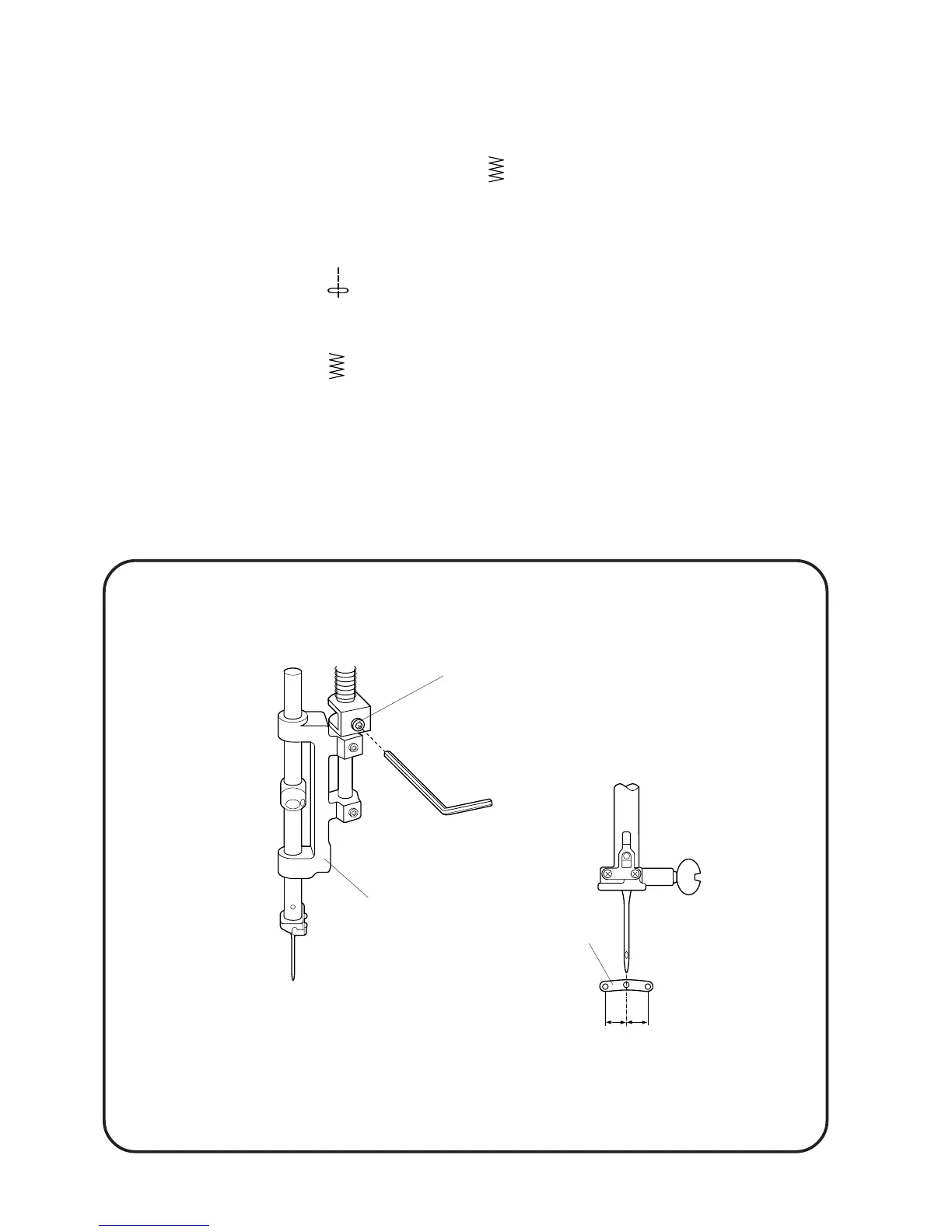

A
B
Setscrew
Needle hole
A=B
Needle bar supporter
