ELNA 320 - Buttonhole Feed Balance

15

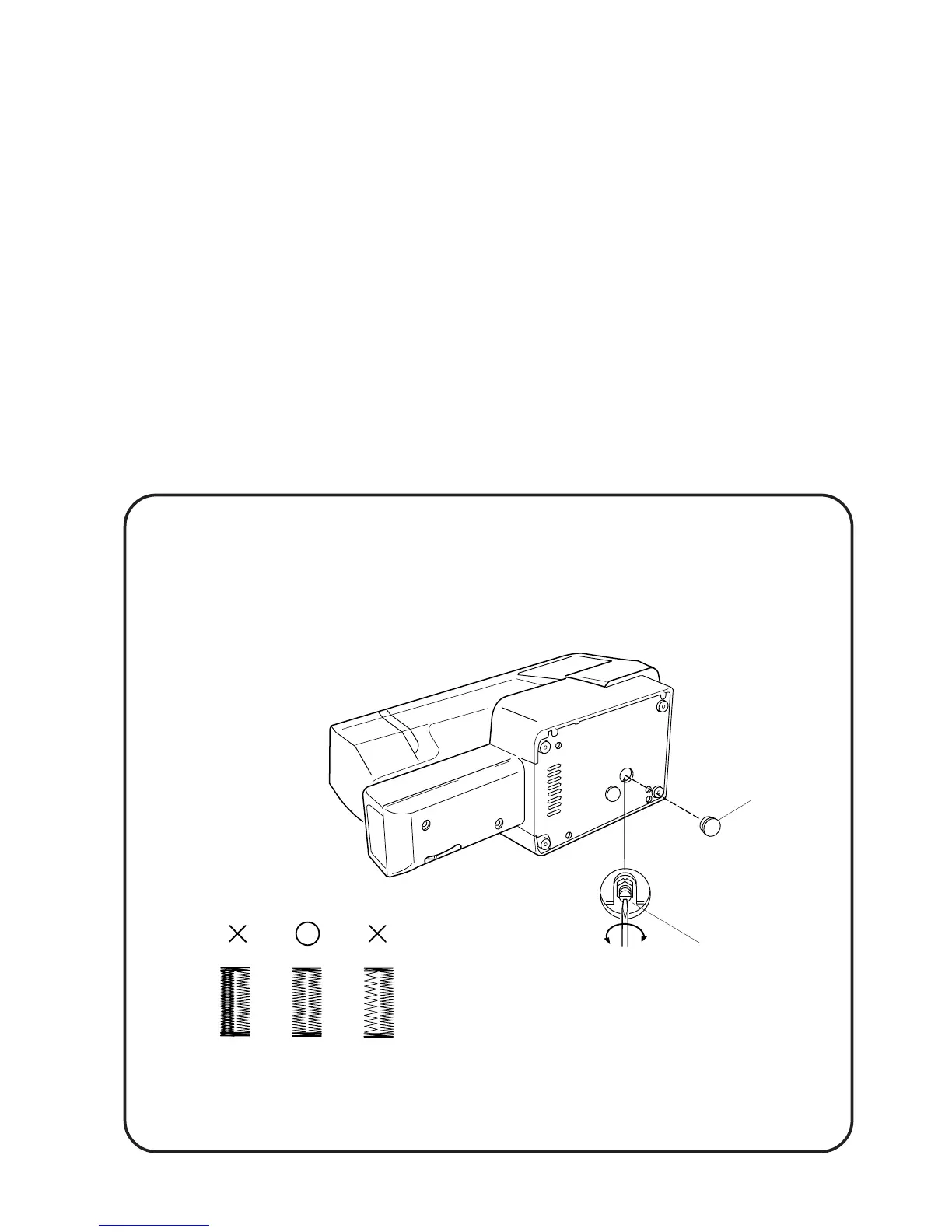

Adjusting Buttonhole Feed Balance
When sewing a buttonhole, the stitches on each side of the buttonhole should be the same
density.
The range of 9 to 12 stitches in the right side row against 10 stitches in the left side row is
considered acceptable.
<TO ADJUST>
1 Sew a test buttonhole and count the stitches on each side.
2 Remove the cap to access the adjusting screw.
3 If the left row is denser (A), turn the adjusting screw in the direction (C).
4 If the right row is denser (B), turn the adjusting screw in the direction (D).
5 Attach the cap.
AB
Cap
Adjusting screw
(C)
(D)
