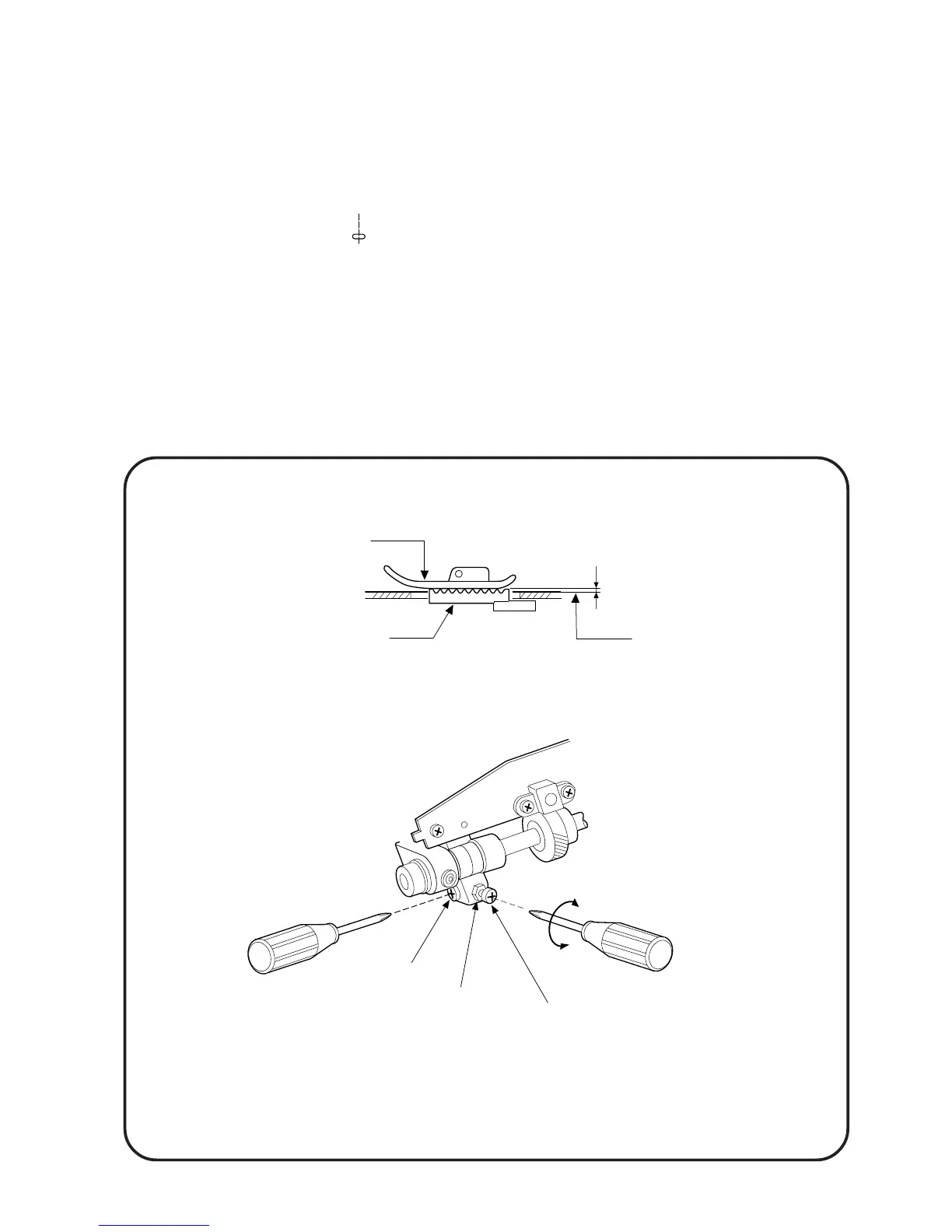

Adjusting Feed Dog Height
The distance between the lowered presser foot and needle plate should be 0.75 to 0.85 mm
when the feed dog is in its highest position.
<TO ADJUST>
1 Select the straight stitch ( ) and set the stitch length dial at "4".
2 Lower the presser foot. Turn the handwheel to bring the feed dog to its highest position.
3 Remove the base cover (see page 2).
4 Loosen the setscrew (A) and nut.
5 Turn the adjusting screw to set the feed dog height to 0.8 mm.
6 Tighten the nut and setscrew (A).
7 Attach the base cover.
Presser foot
0.75 to 0.85mm
Needle plate
Feed dog
To raise
To lower
Adjusting screw
Nut
Setscrew (A)
