5. Adjusting clearance between Needle and Shuttle Hook
Whenclearancebetweenneedleandpointofshuttlehookiscorrect,theneedlemustjustclearorbarelytouch
thepointoftheshuttlehook.
Ifthisisnotthecase,proceedasfollows:
Removeneedle,presserfootandneedleplate.
Lowerpresserfootlevertoopenfrontcover(threadtake‐uplevermustbeinaraisedposition).
Stitchwidthknobat"0."
SetCenteringDialatCenterPosition.


Installastraightsize100/16Needle.
Turnflywheelslowlytowardyouuntilpointof
ShuttleHookisexactlybehindthecenterofthe
needle.

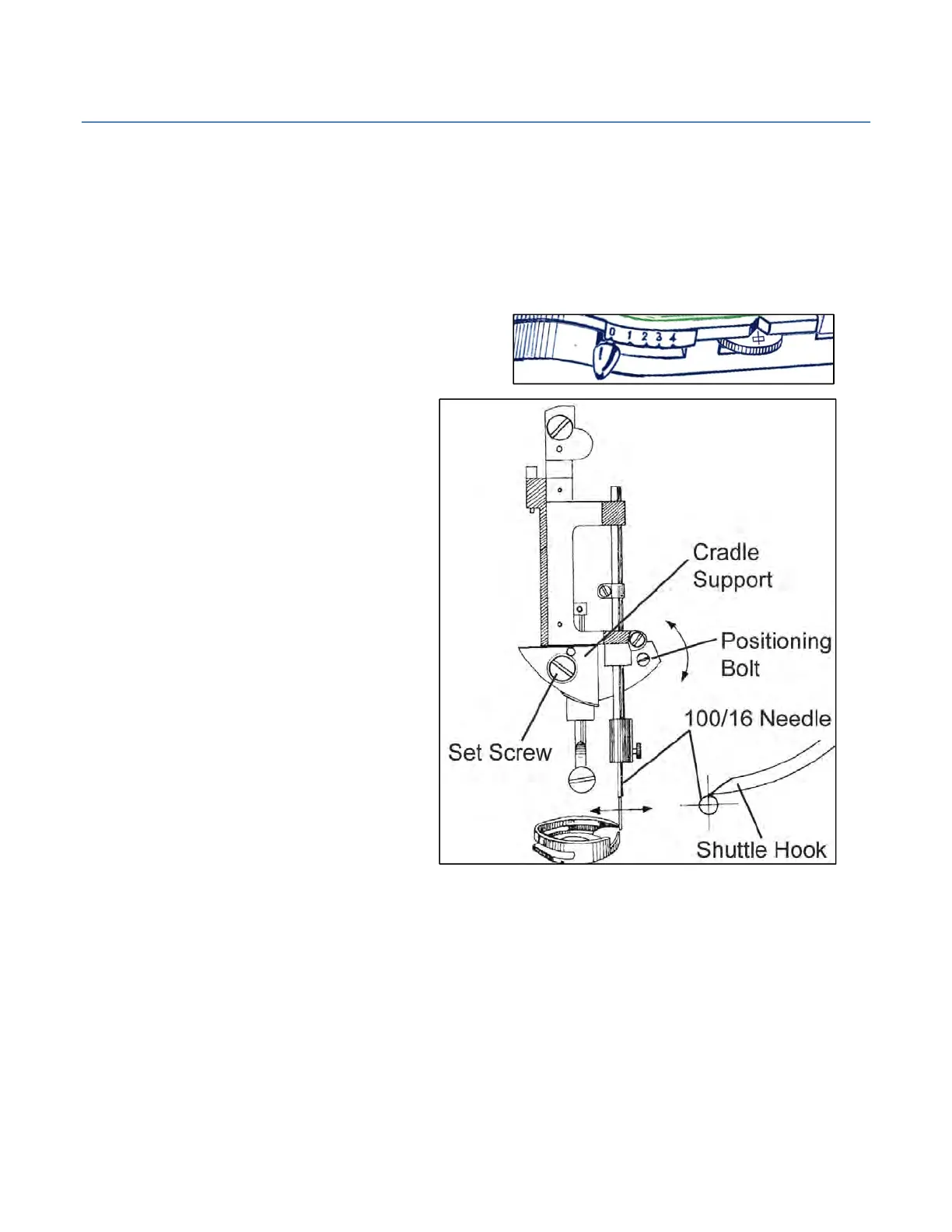

SlightlyloosentheSetScrewintheCradle
Support.
InsertscrewdriverintoPositioningBoltand
turnuntilneedlejustclears,orbarelytouches,
thepointoftheshuttlehook.
TightenSetScrewafterthisadjustment.





Closefrontcover,replaceneedle,needleplateandpresserfoot.



