1. Timing of Feed Dog
Whenfeeddogiscorrectlytimed,itmustnotmovethematerialwhiletheneedleisinthematerial.Ifthis
requirementisnotmet,proceedasfollows:
Removeneedle,presserfoot,needleplateandfreearmcover(heldonby2Phillipsscrews).

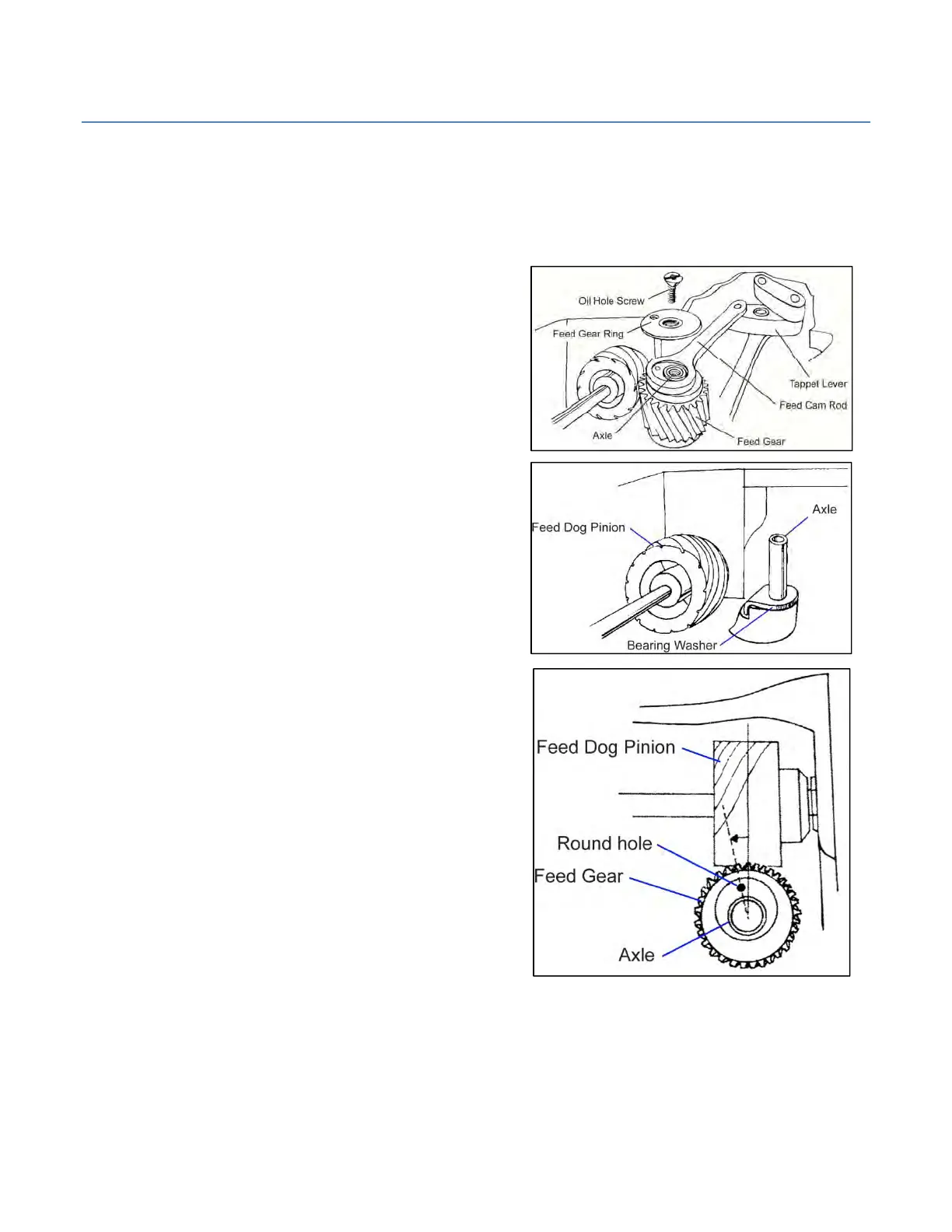

Removeoilholescrewontopoffeedgearandremovealso
feedgearring.
Liftfeedcamrodsothatitcomesoffsimultaneouslyfromthe
feedgearandtappetlever.

Liftfeedgearoffaxle.
Makesurethatbearingwasherispositionedonaxlewithlip
overinsideedge.

Tocorrectlysetthetiming:
Turnflywheeltowardsyouuntiltheneedlebarisatlowest
position.
Repositionthefeedgearontheaxlesuchthattheroundhole
onthetopofgearfacesonetoothtotheleftinrelationto
thecenterofthefeeddogpinion.
(Besuretheneedlebarremainsatitslowestposition.)
Replacefeedcamrodbyplacingbothofitsends
simultaneouslyontheircorrespondingcounterparts.
(Donotuseforce!)
Replacefeedgearringandoilholescrew.
Replacefreearmcover,needleplate,presserfootandneedle.

