9. Adjustment of Presser Bar
Ifthepresserbariscorrectlyadjusted,thegaugeNo.541361orthepresserfootmustbeinlinewith(parallel
with)theslotsintheneedleplate.Ifthisrequirementisnotmet,proceedasfollows:

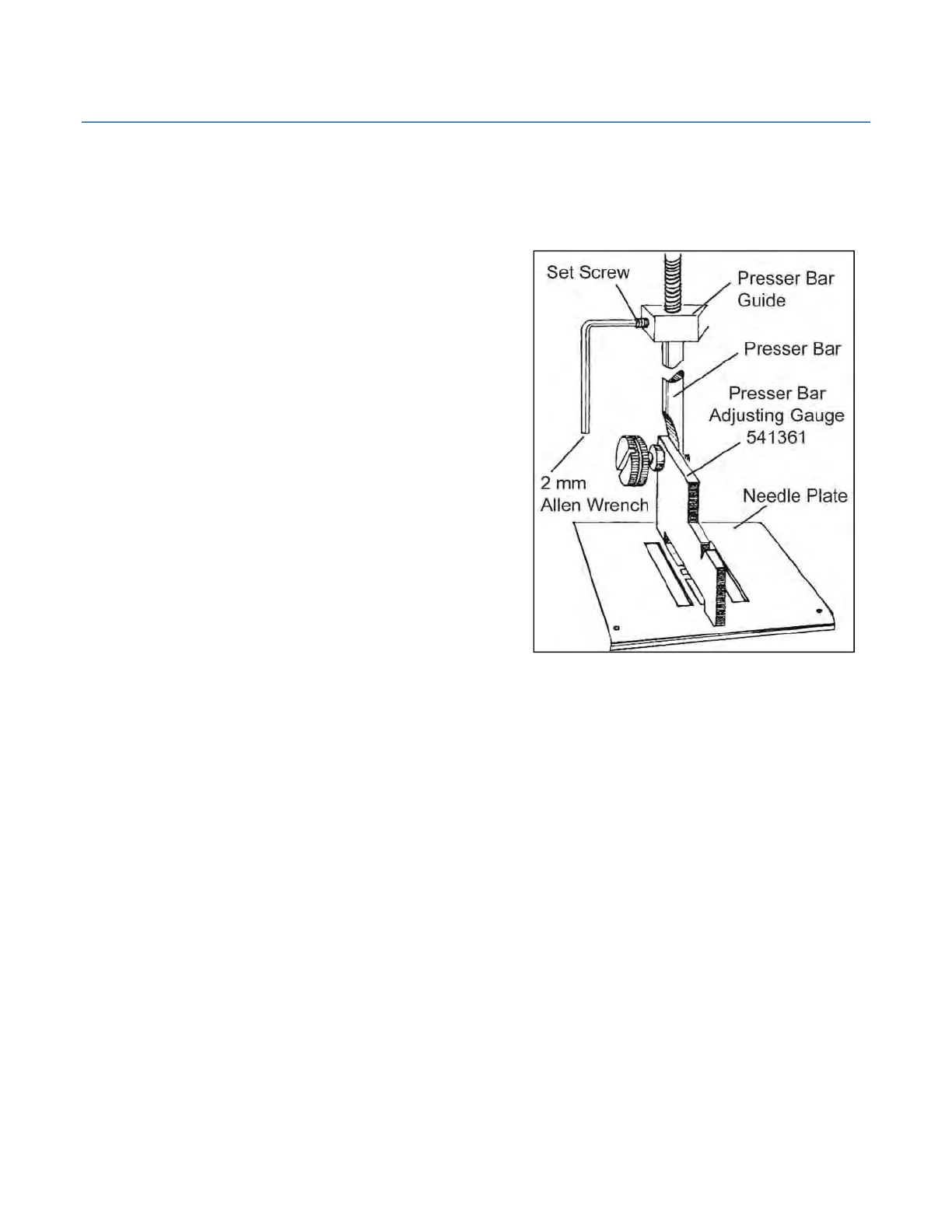

Removeneedleandpresserfoot,andthenfastenpresserbaradjustinggaugeNo.541361topresserbar.
Lowerpresserfootleveruntilgaugerestsuponneedleplate.
Openfrontcover(threadtake‐uplevermustbeintheraised
position).
Checkifgaugelinesupwithslotsinneedleplate.
Ifgaugedoesnotlineupwithslots,loosenslightlytheset
screwinpresserbarguide,thenturngaugewithpresserbar
asrequireduntilgaugelinesupwithslotsinneedleplate.
Tightenthesetscrewafterthisadjustment.
Removegaugeandclosefrontcover.
Replaceneedleandpresserfoot.


