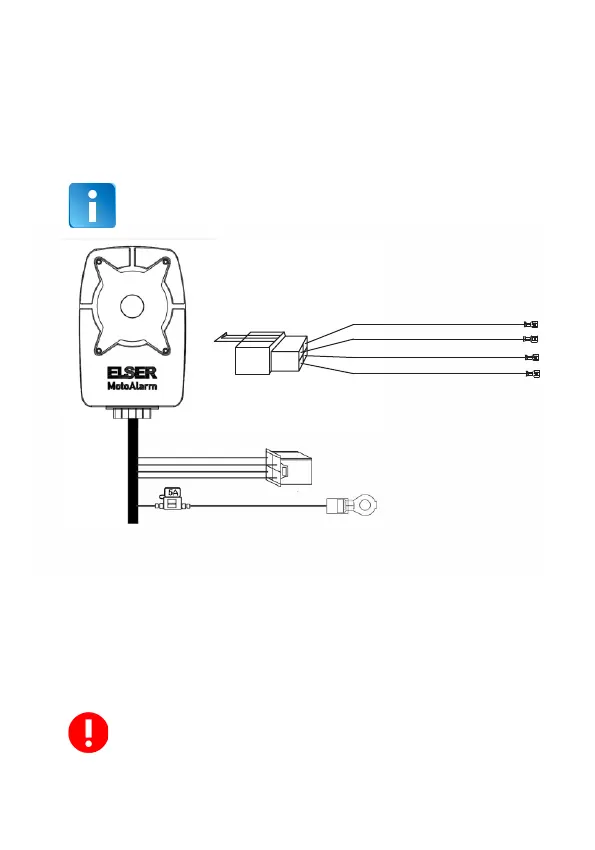

2.41 Main unit wiring information
Black connector 10PIN
it is divided into black 4PIN connector and constitutes the central
wiring of the alarm unit
When the central unit is supplied with (+) and (-) 12V voltage,
the system will emit two siren sounds.
IMPORTANT:
Installation is designed to be easy and quick.
battery pole.
Black wire: (-) ground or to the negative pole of the battery.
Gray wire: +12V output with fuse on the right turn signal.
Black connector 4PIN
Orange wire: +12V input to the ignition switch.
Black cable: with fuse and terminal, connection to +12 Volt
Gray wire: +12V output with fuse on the right turn signal.
