Elspec G4410 User Manual

CHART OPTIONS

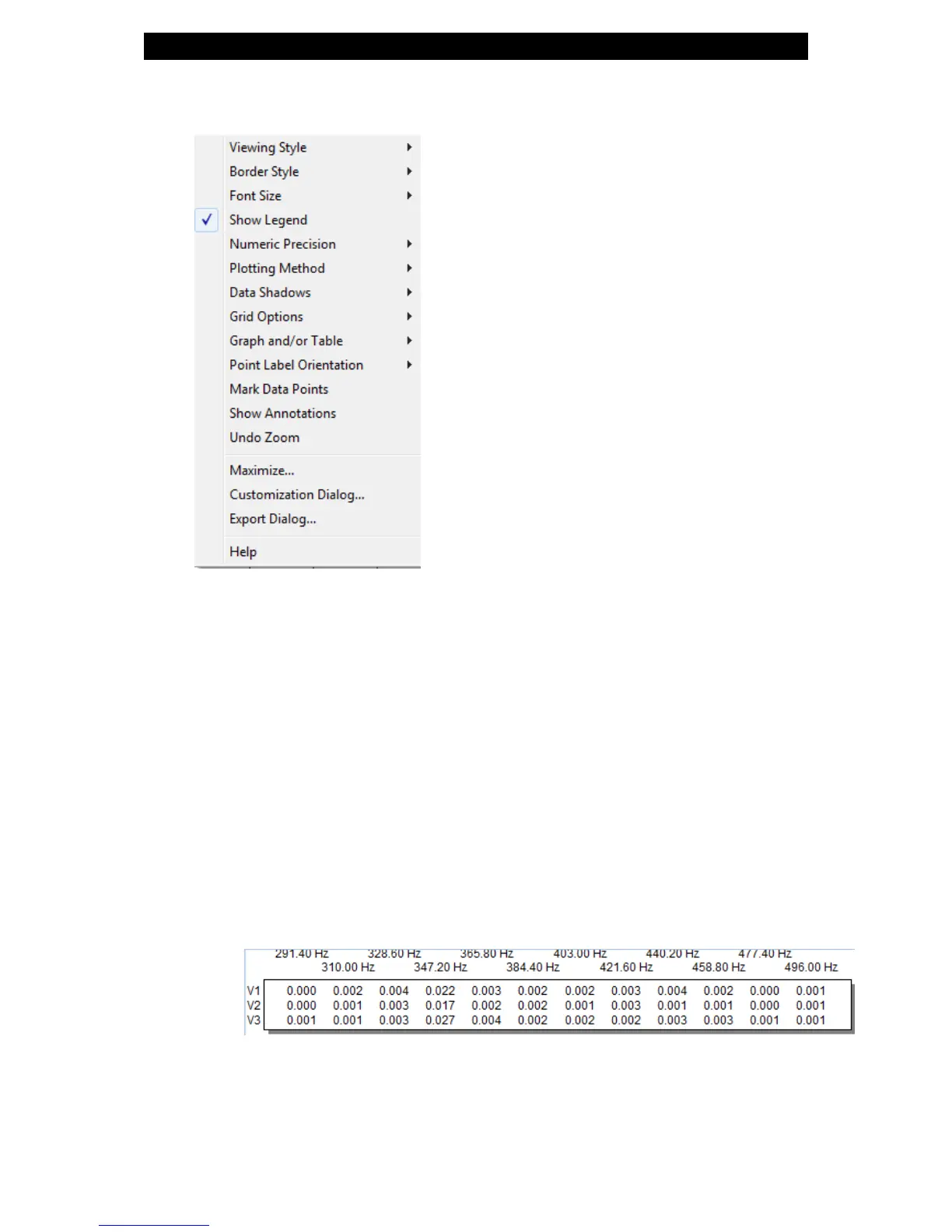

 By right-clicking on the chart you have various chart options & capabilities
available to you:
 Viewing Style: Different styling options Color / Monochrome (B&W)
with/without Symbols / Bitmap etc. By selecting the option you can
view on screen the different styles available to you
 Border Style: No Border, Thin Line, Shadow / Inset
 Font Size: Large / Medium / Small
 Display / Not display Legend
 Numeric Precision: No up to 3 Decimals
 Plotting Method: From Line / Bar / Point / Area / Spline /
Combinations
 Data Shadows: Off / Shadow / 3D
 Grid Options: Various grid options ranging from dots / lines /
different axis etc.
 Graph & Table: Display either the graph / table / both:
 Point Label Orientation: Auto / Vertical / Horizontal / Slanted
 Mark Data Points: Displays data points on graph
 Show Annotations: Displays annotations data descriptions
 Zoom / Undo Zoom - Zoom in /out on your graph:
