Attention:
l Cable routing looms must not be secured to hot pipes or vibrating components.
Secure cable routing looms with clips where ever possible.
3.9.1 Power supply module dimensions

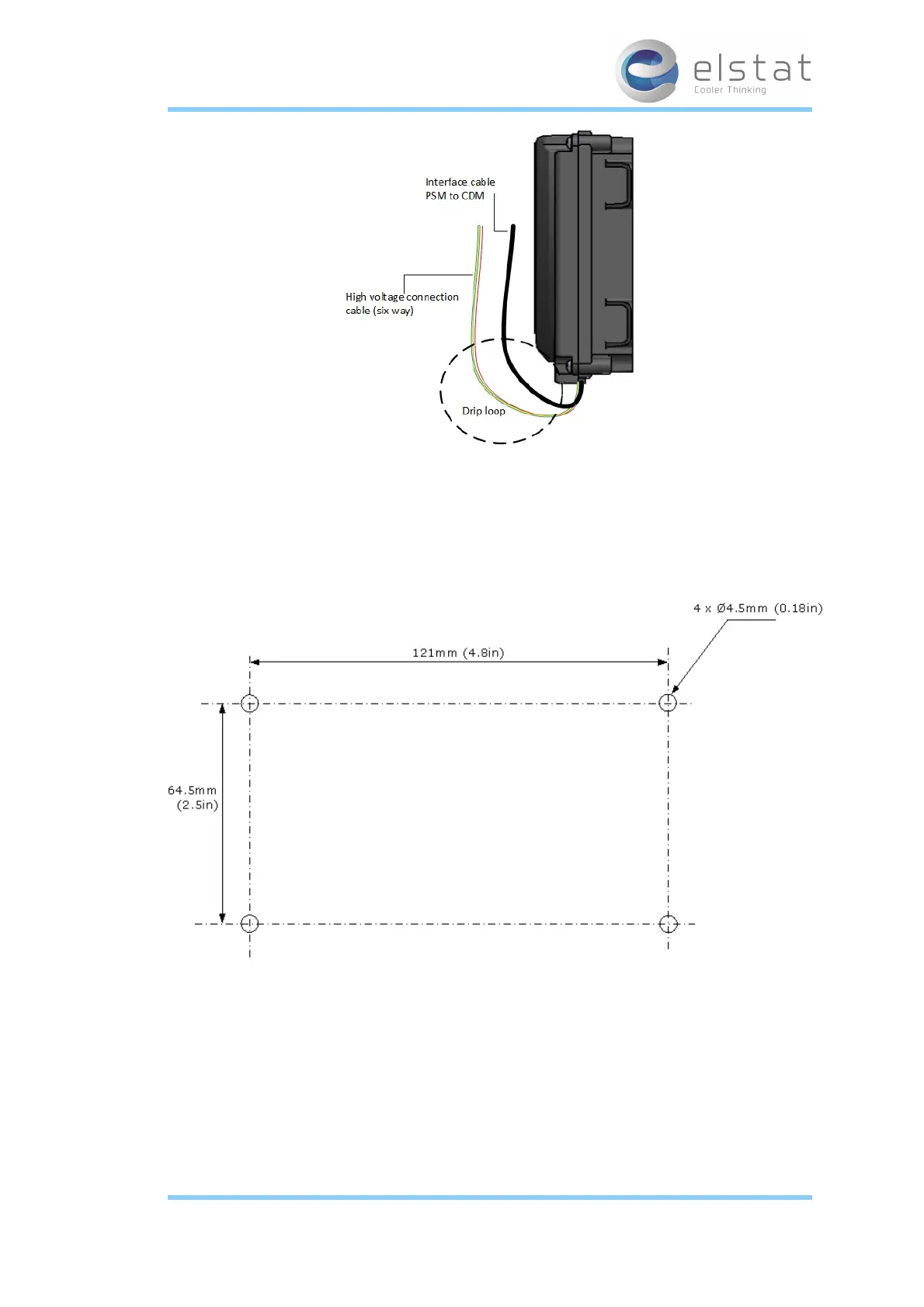

The dimensions of the fixing holes are shown below.
The following is an example of the Power Supply Module mounted, but not connected:
12 of 86
27 February 2014
